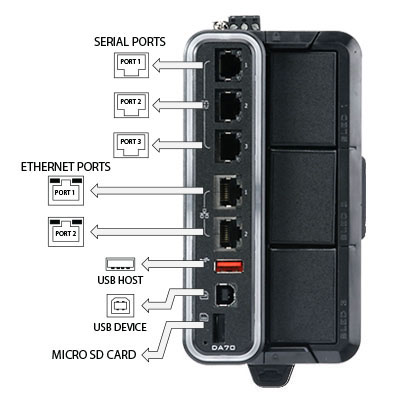

DA70A FlexEdge Series, 3-Sled 2xRS232 1xRS485 Networking Gateway
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: DA70A0FNNNNNN010
Weight: 1.0 lb(s)
The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. Rugged, field-installable PID control and I/O modules ensure a solution that adapts to meet almost any industrial application need.
Overview The modular design of the DA70A allows for up to three communications sleds to be added as requirements change or new communication standards emerge. With advanced networking capabilities including routing, a stateful firewall, IPSec, VRRP, and OpenVPN support, adding secure communications is easy.
Specifications Two 10/100Base-T(X) Ethernet ports Two (2) isolated RS-232 serial ports One (1) isolated RS-485 serial port One (1) USB Host port Onboard memory: 1 GB flash Expansion memory: Up to 256 GB, micro SD 12-24 VDC +/- 15% -40 to 75 C Operating Temperature UL Class 1, Div 2 Certification ATEX / IECEx Certification
Additional Features • IP Fallback, IP Transparency, NAT, and routing capabilities • VPN Client/Server capabilities with certificate generation • Intuitive diagnostic light ring for at-a-glance system status indication • Support for any combination of communication sleds • Future-proof modular design accommodates field-installable sleds • 802.11 b/g/n Wi-Fi Client (with Wi-Fi Communications Sled ) • Dual SIM 4G LTE Modem with Active GPS (with Cellular Communications Sled )
Advanced Networking Features
- Firewall with Access Control
- Routing, Tunneling, IPsec
- VPN Client/Server
- Sled 1: 2x RS-232, 1x RS-485
- Sled 2: None
- Sled 3: None
- 3 Serial Ports
- 10 I/O Modules
- 2 Ethernet Ports
- USB Device: Yes
- USB Host: Yes
DA70A FlexEdge Series, 3-Sled 2xRS232 1xRS485 Networking Gateway
Brand_Name:Red Lion
Manufacturer Product Family:DA70A FlexEdge Series
Serial Ports:3
Ethernet Ports:2
Router Type:Advanced Networking
Comm Sleds:3
I/O Modules:10
Feature: USB Device:Yes
Feature: USB Host:Yes
Sled 1:None
Sled 2:None
Sled 3:None
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | DA70A FlexEdge Series |
| Serial Ports | 3 |
| Ethernet Ports | 2 |
| Router Type | Advanced Networking |
| Comm Sleds | 3 |
| I/O Modules | 10 |
| Feature: USB Device | Yes |
| Feature: USB Host | Yes |
| Sled 1 | None |
| Sled 2 | None |
| Sled 3 | None |
