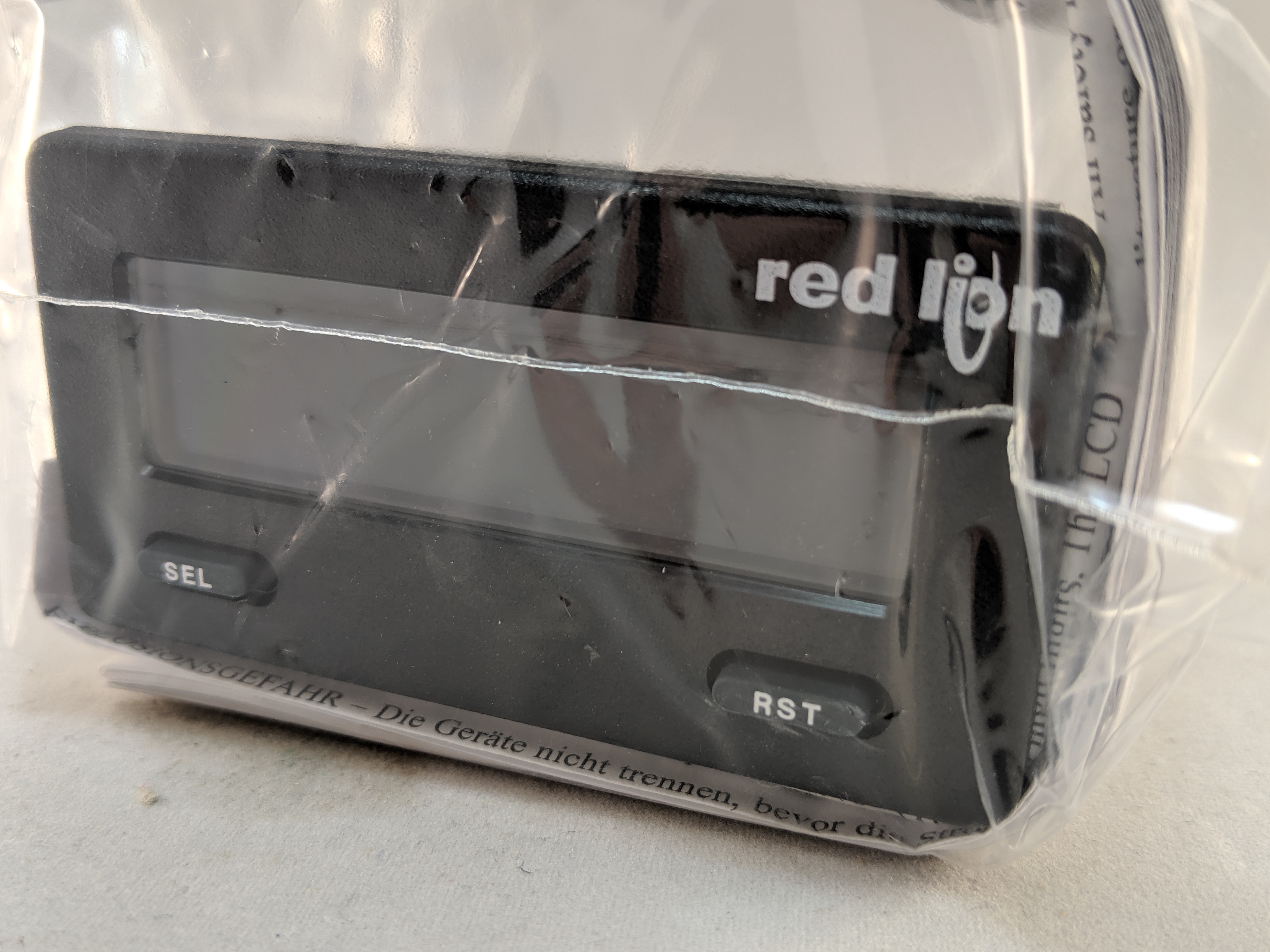

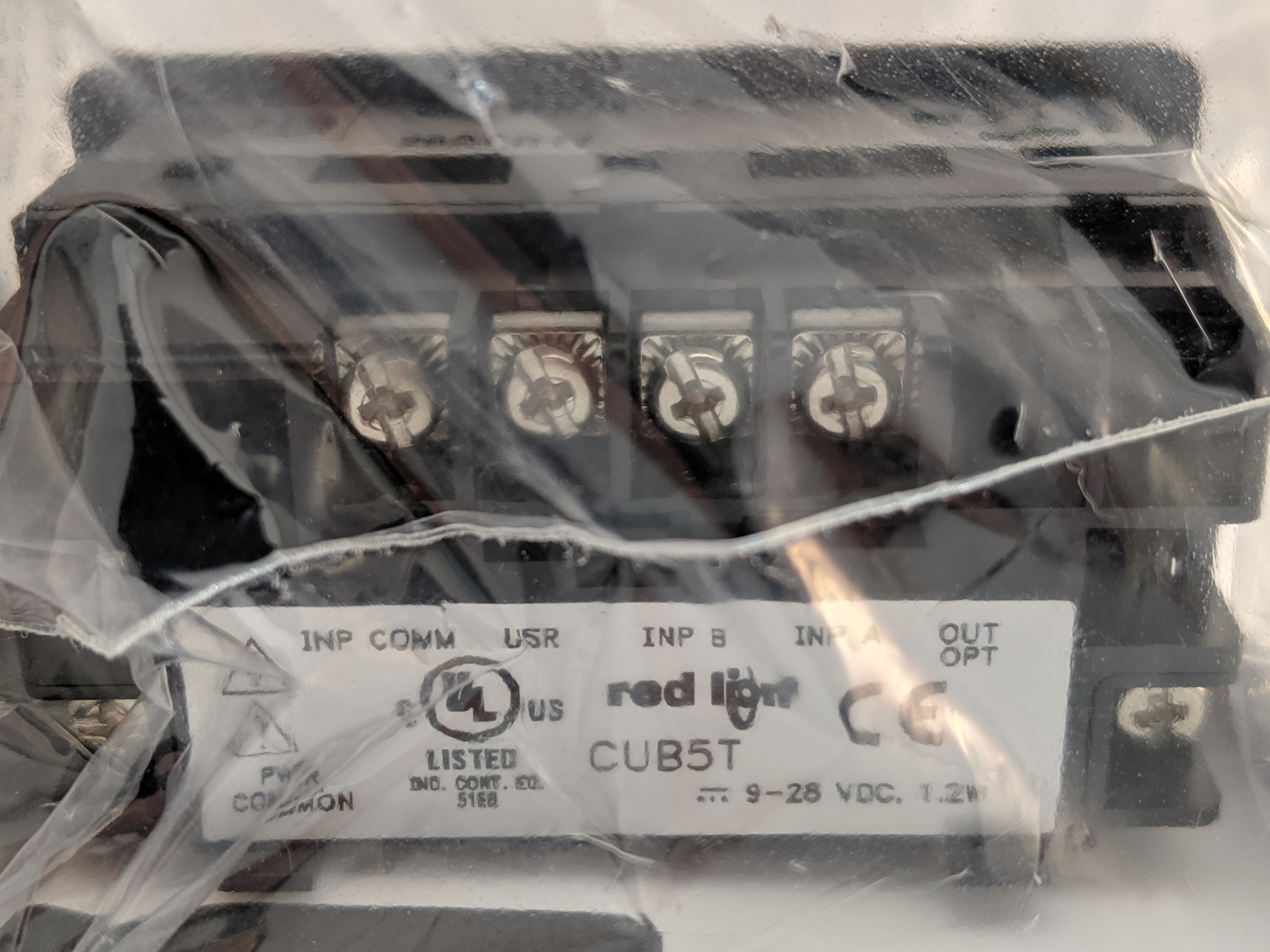

CUB Series CUB5 Preset Timer & Cycle Counter with Backlight Display
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: CUB5TB00
Weight: 0.2 lb(s)
Red Lion's CUB® Panel Meters: powerful solutions in compact sizes. The CUB5 offers the ultimate in panel meter flexibility, from comprehensive user programming to the optional setpoint control and communication capabilities. The CUB4 is ideal for basic applications, with a large display, a miniature container, and no programming needed. The CUB7 is a dedicated function eight-digit panel meter that's incredibly easy to use, with features normally only available on larger models.
Features
- Preset Timer and Cycle Counter
- Red LED w/Backlighting
- 0.46" (11.7 mm) High Digits
- 7-Digit Bi-Directional Timing Capability
- 6-Digit Cycle Counting Capability
- Optional Serial Communication Modules (RS-232 or RS-485)
- Optional Setpoint Card available (Dual Sink* or Relay)
- Selectable Timer Ranges and Operating Modes
- Elapsed Timer and Preset Timer Functionality
- Display Color Change Capability at Preset Output
- Operates from 9 to 28 VDC Power Source
- NEMA 4X/IP65 Sealed Front Bezel
*Only a single setpoint is used
CUB Series CUB5 Preset Timer & Cycle Counter with Backlight Display
Brand_Name:Red Lion
Manufacturer Product Family:CUB Series Panel Meters
Input Communication Protocol:Multiple
Output Communication Protocol:Multiple
Ingress Protection:IP65
Function:Timer
Process Display:7 Digit, 0.46"(11 mm) Red/Green Backlight LCD
NEMA / UL:NEMA 4X
SIZE:3" (75 mm) x 1.5" (39 mm)
Feature: Field-Installable Option Card Capability:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | CUB Series Panel Meters |
| Input Communication Protocol | Multiple |
| Output Communication Protocol | Multiple |
| Ingress Protection | IP65 |
| Function | Timer |
| Process Display | 7 Digit, 0.46"(11 mm) Red/Green Backlight LCD |
| NEMA / UL | NEMA 4X |
| SIZE | 3" (75 mm) x 1.5" (39 mm) |
| Feature: Field-Installable Option Card Capability | Yes |
