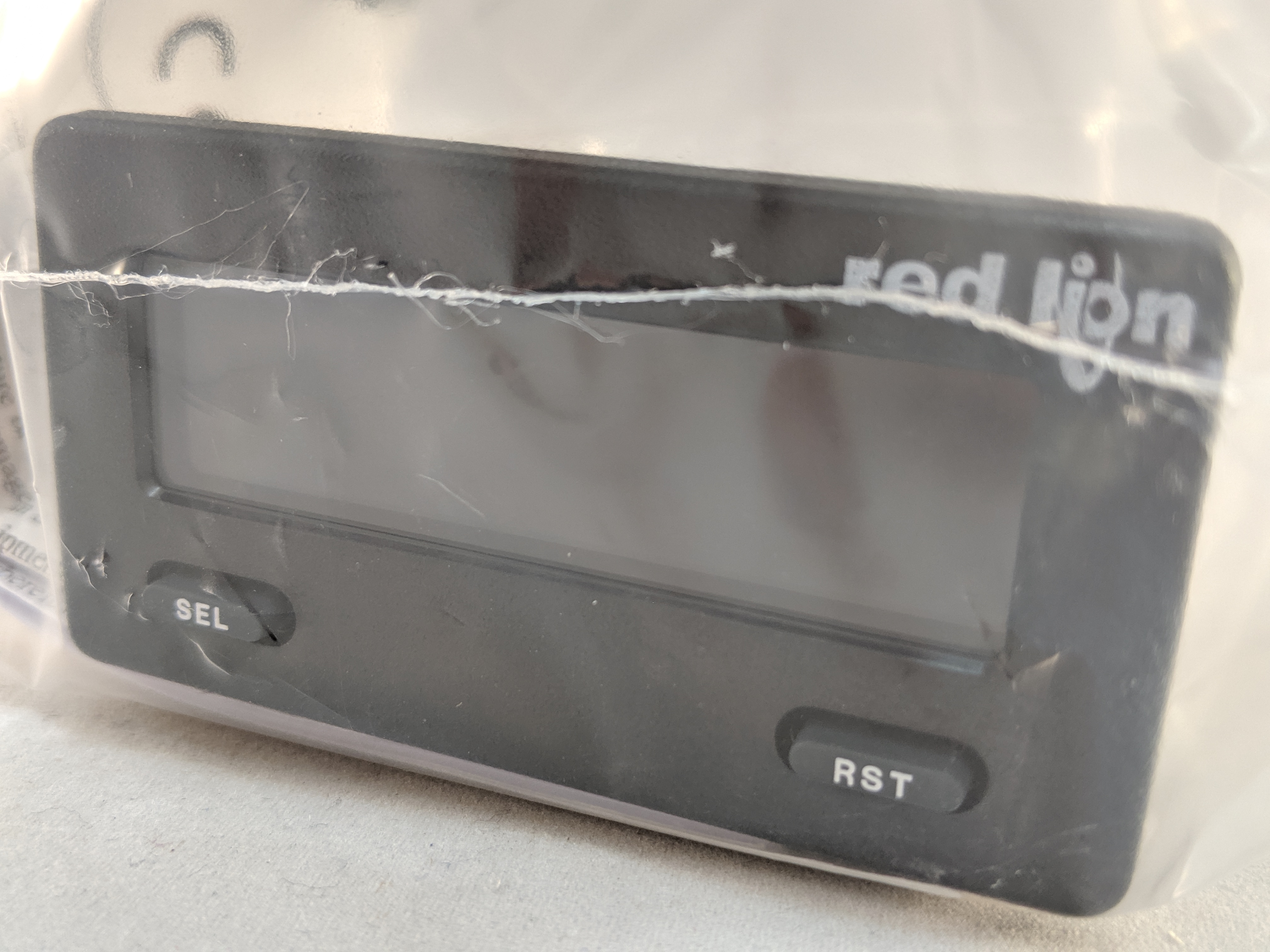

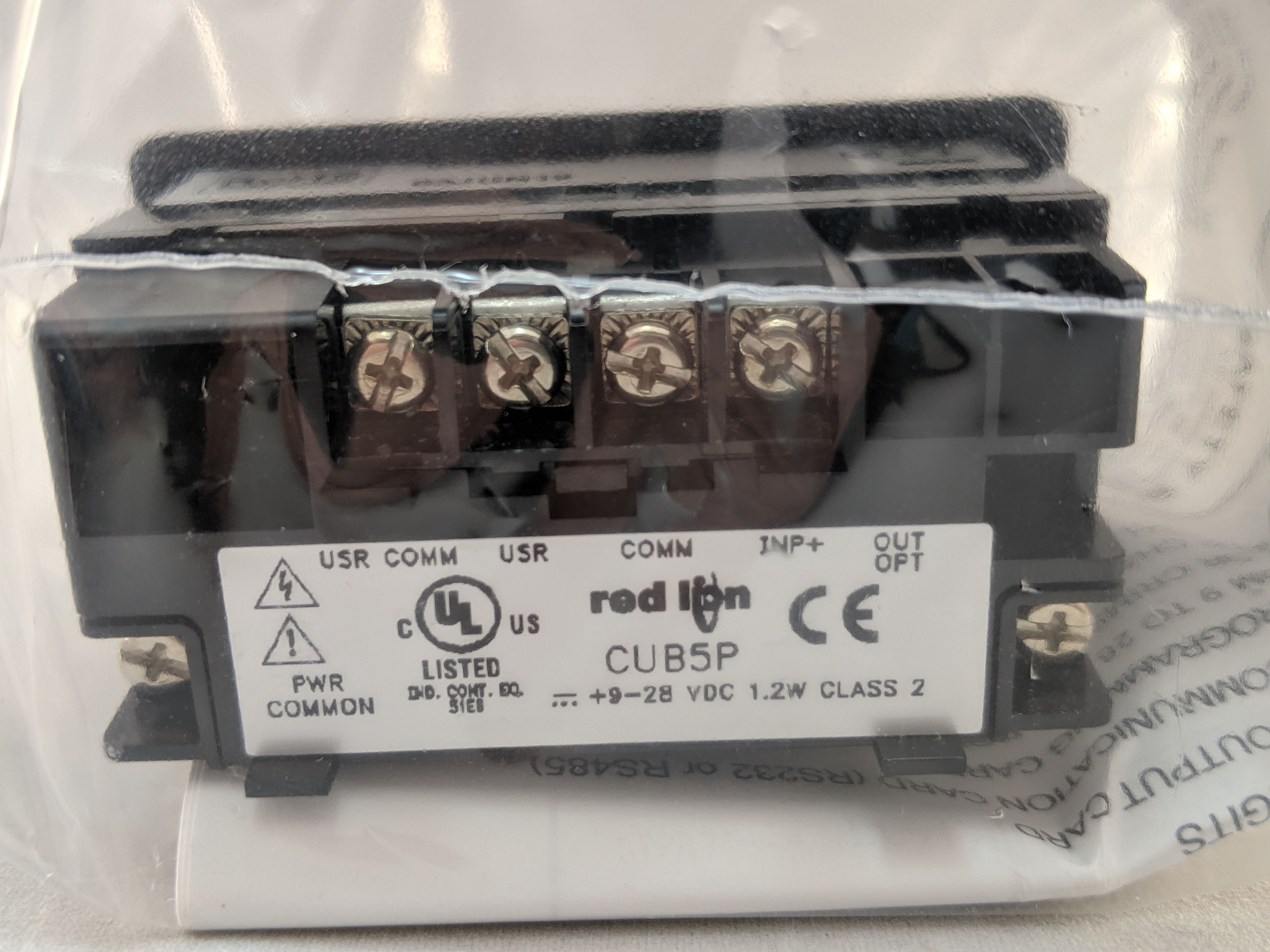

CUB Series CUB®5 DC Process Meter with Backlight Display
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: CUB5PB00
Weight: 0.2 lb(s)
Red Lion's CUB® Panel Meters: powerful solutions in compact sizes. The CUB5 offers the ultimate in panel meter flexibility, from comprehensive user programming to the optional setpoint control and communication capabilities. The CUB4 is ideal for basic applications, with a large display, a miniature container, and no programming needed. The CUB7 is a dedicated function eight-digit panel meter that's incredibly easy to use, with features normally only available on larger models.
Features
- Three Selectable D.C. Ranges 0 to 10 V, 0 to 20 mA, 0 to 50 mA
- Minimum and Maximum Display Capture
- Red/Green LCD w/Backlighting
- 0.48" (12.2 mm) High Digits
- Optional Serial Communication Modules (RS-232 or RS-485)
- Optional Setpoint Cards available (Dual Sink or Relay)
- Optional USB Programming Card available
- Operates from 9 to 28 VDC Power Source
- Front Panel or Crimson® Programmable
- Display Color Change Capability at Setpoint Output
- NEMA 4X/IP65 Sealed Front Bezel
CUB Series CUB®5 DC Process Meter with Backlight Display
Brand_Name:Red Lion
Manufacturer Product Family:CUB Series Panel Meters
Input Communication Protocol:4-20 mA, 0-10 VDC
Output Communication Protocol:Multiple
Ingress Protection:IP65
Function:Process Meter
Process Display:5 Digit, 0.48"(12 mm) Red/Green Backlight LCD
NEMA / UL:NEMA 4X
SIZE:3" (75 mm) x 1.5" (39 mm)
Feature: Field-Installable Option Card Capability:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | CUB Series Panel Meters |
| Input Communication Protocol | 4-20 mA, 0-10 VDC |
| Output Communication Protocol | Multiple |
| Ingress Protection | IP65 |
| Function | Process Meter |
| Process Display | 5 Digit, 0.48"(12 mm) Red/Green Backlight LCD |
| NEMA / UL | NEMA 4X |
| SIZE | 3" (75 mm) x 1.5" (39 mm) |
| Feature: Field-Installable Option Card Capability | Yes |
