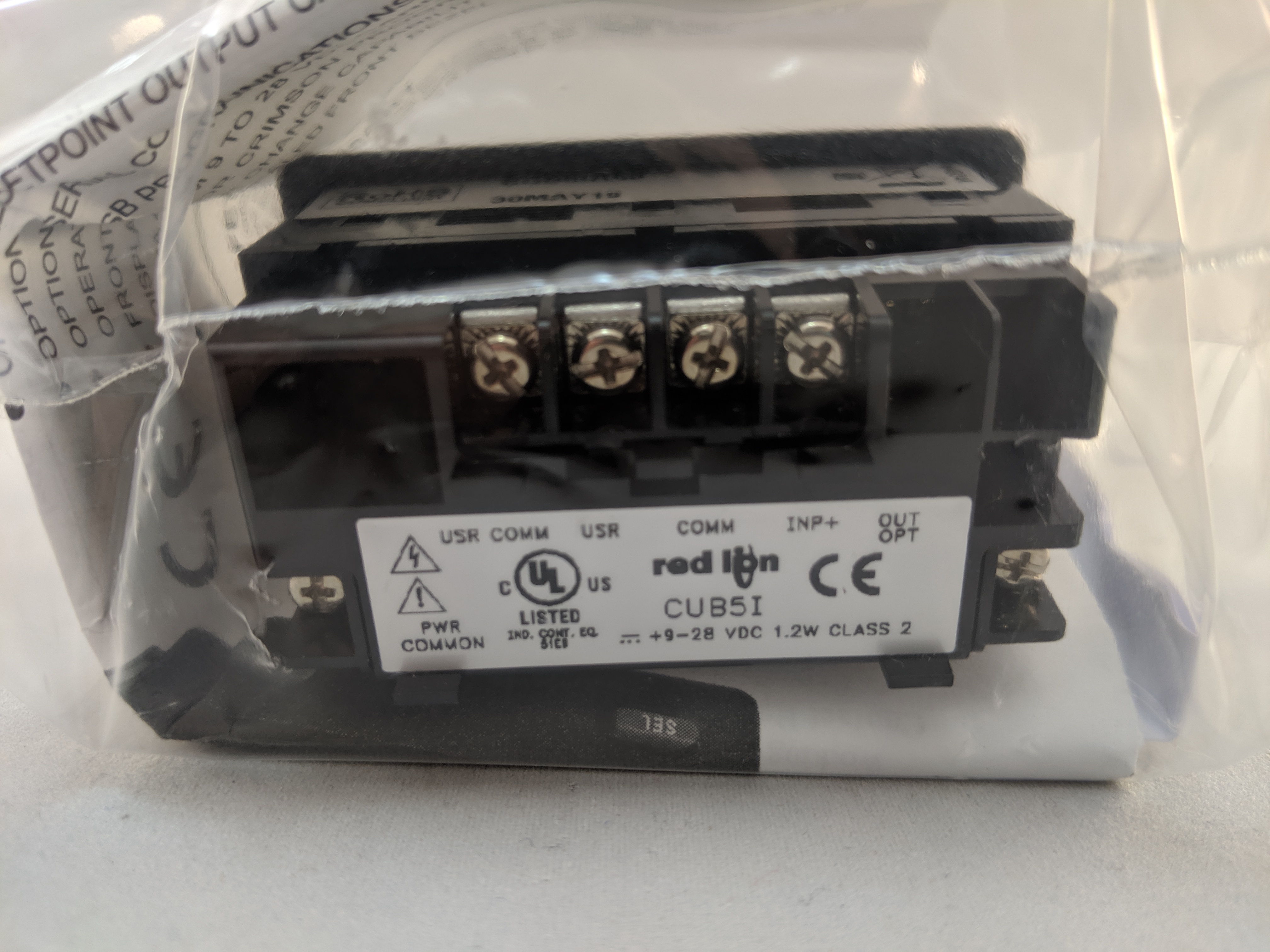

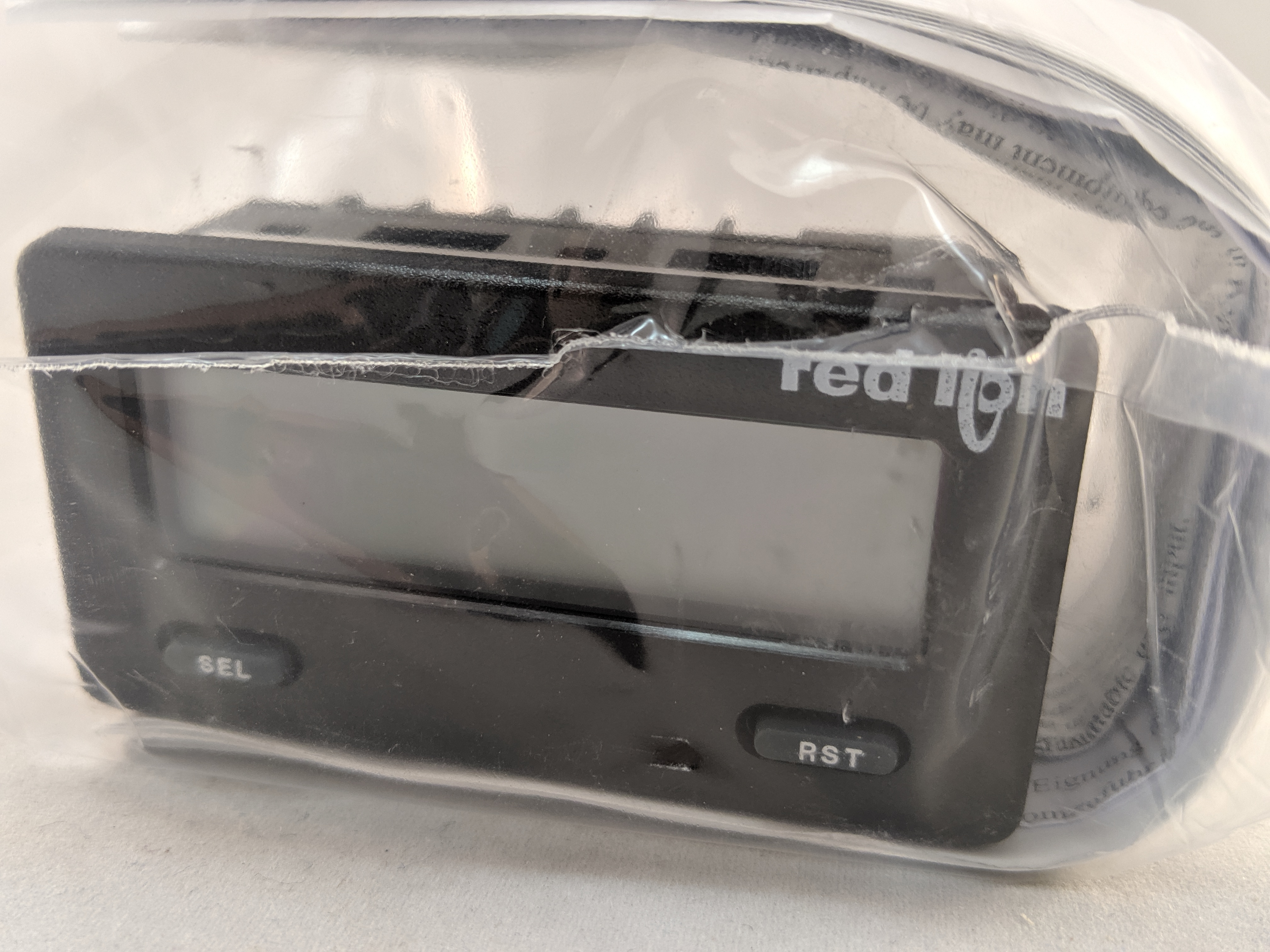

CUB Series CUB®5 DC Current Meter with Reflective Display
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: CUB5IR00
Weight: 0.2 lb(s)
Red Lion's CUB® Panel Meters: powerful solutions in compact sizes. The CUB5 offers the ultimate in panel meter flexibility, from comprehensive user programming to the optional setpoint control and communication capabilities. The CUB4 is ideal for basic applications, with a large display, a miniature container, and no programming needed. The CUB7 is a dedicated function eight-digit panel meter that's incredibly easy to use, with features normally only available on larger models.
Features
- Four Selectable D.C. Ranges 200 µA, 2 mA, 20 mA, 200 mA
- Minimum and Maximum Display Capture
- Reflective Display
- 0.48" (12.2 mm) High Digits
- Optional Serial Communication Modules (RS-232 or RS-485)
- Optional Setpoint Cards available (Dual Sink or Relay)
- Optional USB Programming Card available
- Operates from 9 to 28 VDC Power Source
- Front Panel or Crimson® Programmable
- NEMA 4X/IP65 Sealed Front Bezel
CUB Series CUB®5 DC Current Meter with Reflective Display
Brand_Name:Red Lion
Manufacturer Product Family:CUB Series Panel Meters
Function:DC Current Meter
Process Display:5 Digit, 0.48"(12 mm) Reflective LCD
SIZE:3" (75 mm) x 1.5" (39 mm)
Feature: Field-Installable Option Card Capability:Yes
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | CUB Series Panel Meters |
| Function | DC Current Meter |
| Process Display | 5 Digit, 0.48"(12 mm) Reflective LCD |
| SIZE | 3" (75 mm) x 1.5" (39 mm) |
| Feature: Field-Installable Option Card Capability | Yes |
