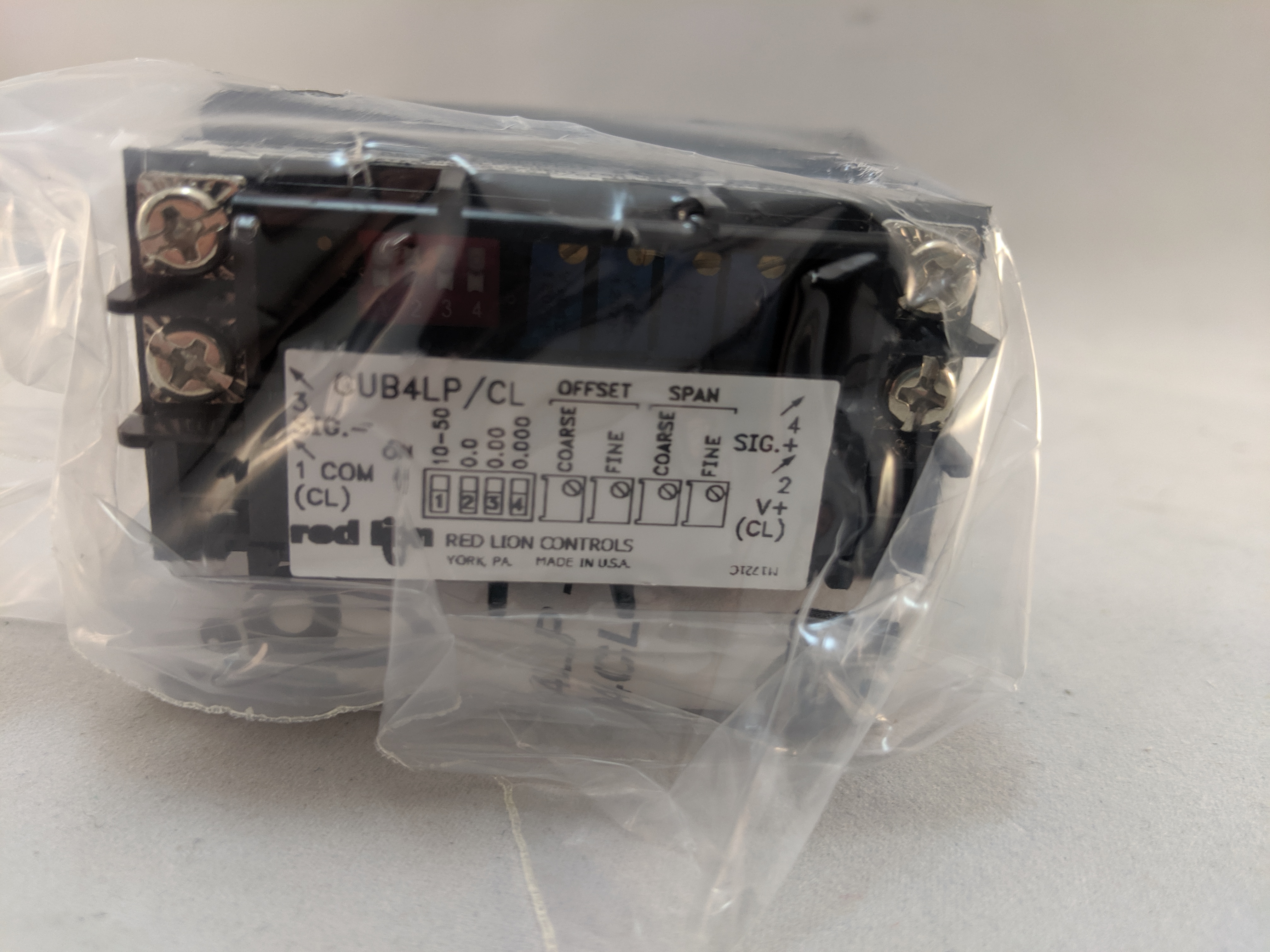

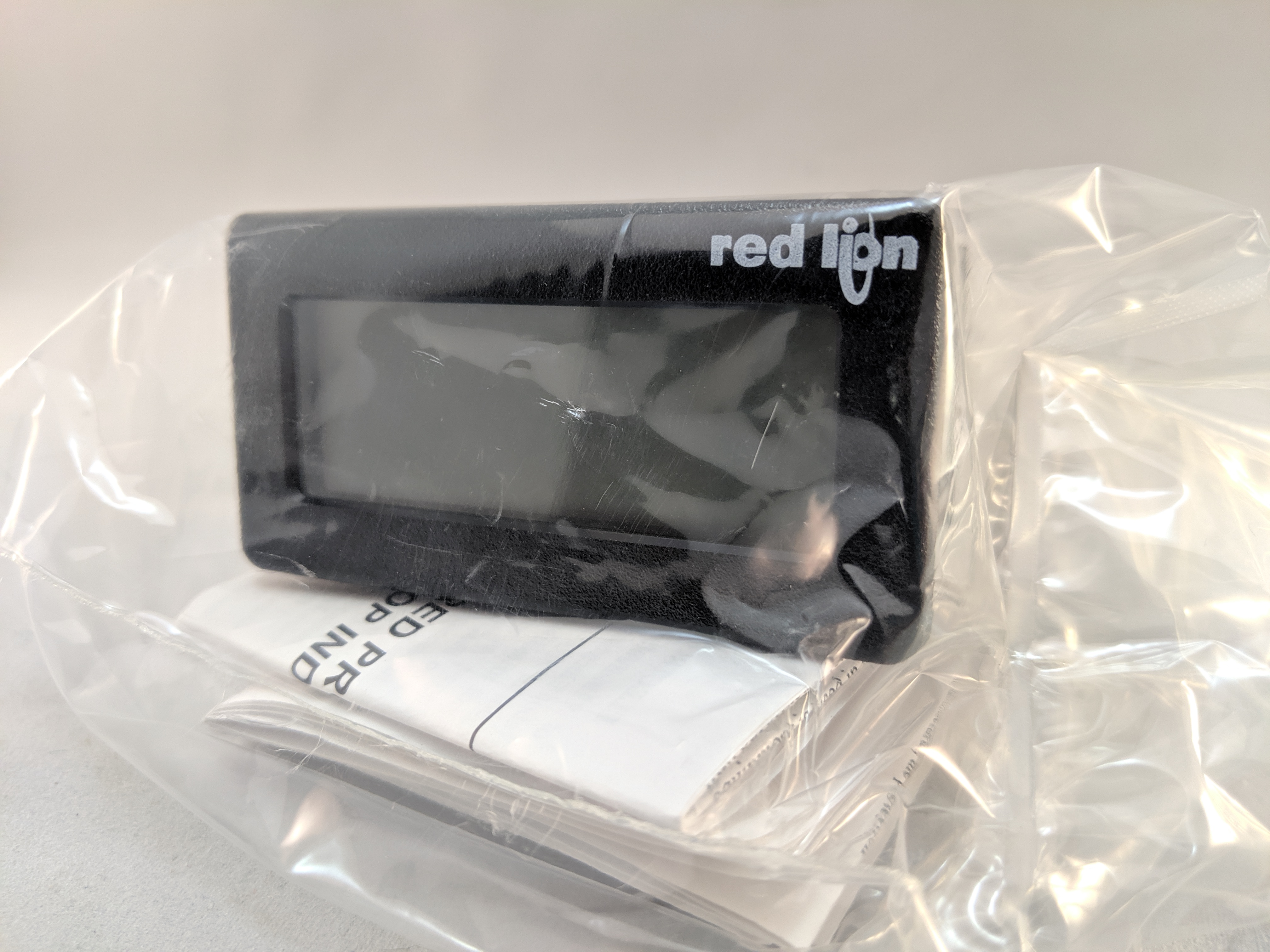

CUB Series CUB4 Process Meter with Red Backlighting
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: CUB4CL40
Weight: 0.21 lb(s)
Red Lion's CUB® Panel Meters: powerful solutions in compact sizes. The CUB5 offers the ultimate in panel meter flexibility, from comprehensive user programming to the optional setpoint control and communication capabilities. The CUB4 is ideal for basic applications, with a large display, a miniature container, and no programming needed. The CUB7 is a dedicated function eight-digit panel meter that's incredibly easy to use, with features normally only available on larger models.
Features
- Current Loop Meter
- 39 mm x 75 mm
- 3 1/2 Digit, 0.6" (15.2 mm) LCD
- Red Positive Image LED Backlighting
- 4 to 20 mA or 10 to 50 mA Input
- NEMA 4X/IP65
- Approved for use in Hazardous Locations
CUB Series CUB4 Process Meter with Red Backlighting
Brand_Name:Red Lion
Manufacturer Product Family:CUB Series Panel Meters
Measurement Minimum:0
Input Communication Protocol:Jumper Selectable: 4 to 20 mA, 10 to 50 mA
Ingress Protection:IP65
Function:Current Loop Meter
Process Display:3 1/2 Digit, 0.6" (15 mm) Red Backlight, Positive Image LCD
NEMA / UL:NEMA 4X
SIZE:3" (75 mm) x 1.5" (39 mm)
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | CUB Series Panel Meters |
| Measurement Minimum | 0 |
| Input Communication Protocol | Jumper Selectable: 4 to 20 mA, 10 to 50 mA |
| Ingress Protection | IP65 |
| Function | Current Loop Meter |
| Process Display | 3 1/2 Digit, 0.6" (15 mm) Red Backlight, Positive Image LCD |
| NEMA / UL | NEMA 4X |
| SIZE | 3" (75 mm) x 1.5" (39 mm) |
