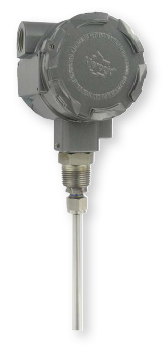

Dwyer Capacitive level transmitter, weatherproof, rigid rod probe type, 1" Sanitary Clamp, 24" insertion length
Manufacturer: Dwyer Instruments Inc
Mfg Product Code: CRF2-WR01S-024
Weight: 12.0 lb(s)
Service Liquids, powders, and bulk materials compatible with wetted materials.
Wetted Materials Standard: rod/cable: FEP; connection: 316 SS. Ground Option: rod/cable and connection: 316 SS; cable spacers:
PVC. Flange Option: material of flange.
Capacitance Range 0 to 2000 pF.
Sensitivity 0.15 pF.
Minimum Span 8 pF.
Accuracy ±0.5 pF or ±0.25% of span, whichever is greater.
Repeatability ±0.25 pF or ±0.1% of span, whichever is greater.
Temperature Limits Ambient: -40 to 185°F (-40 to 85°C); Process: -40 to 250°F (-40 to 121°C).
Pressure Limit 100 psi (6.9 bar).
Power Requirements 12 to 35 VDC.
Output Signal 4 to 20 mA or 20 to 4 mA, 2 wire.
Electrical Connection 0.5 s.
Mounting Orientation Screw terminal.
Conduit Connection 1/2˝ NPT female.
Process Connection Standard: 3/4˝ NPT male. Optional: 1˝, 1-1/2˝, NPT or BSPT, 1˝, 1-1/2˝, or 2˝ sanitary clamp, 2˝, 3˝, or 4˝ 316SS or
PVC 150# flange.
Enclosure Rating NEMA 4X (IP66) weathertight/corrosion resistant.
Spark/Static Protection 10 M Ohm dissipation resistance with spark gap. Surge current to 100 A max.
Calibration Zero, Span, 4 mA, 20 mA.
Mounting Orientation Vertical.
Weight 6 ft rod type: 3.6 lb
Dwyer Capacitive level transmitter, weatherproof, rigid rod probe type, 1" Sanitary Clamp, 24" insertion length
Measurement Minimum:0
Specifications
Measurement Minimum | 0 |
