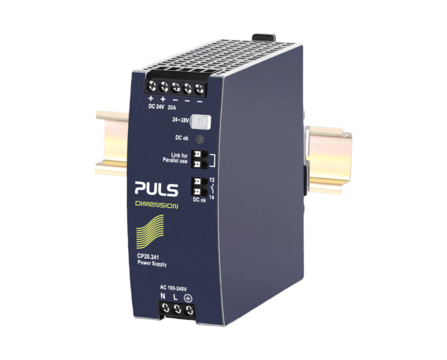

Representative photo. Please check item description for details.
Puls Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Spring Clamps
Manufacturer: Puls Lp
Mfg Product Code: CP20.241-S1
Weight: 1.9 lb(s)
On Hand: 3
The Puls CP20.241-S1 power supply features a 100-240VAC input and delivers a 24VDC output at 20A. It comes with spring-clamp terminals for secure and straightforward connections. This efficient and reliable unit is ideal for industrial applications that require consistent power performance.
Features
- AC 100-240 V Wide-range input
- Width only 48 mm
- Efficiency up to 95.6 %
- Excellent partial load efficiency
- 20 % Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse Breaking due to high overload current
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25 °C and +60 °C
- DC-OK relay contact
- Current sharing feature for parallel use
- Quick-connect spring-clamp terminals
Puls Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.1A with Spring Clamps
Measurement Minimum:0
Input Voltage:100-240 VAC
Specifications
| Measurement Minimum | 0 |
| Input Voltage | 100-240 VAC |
