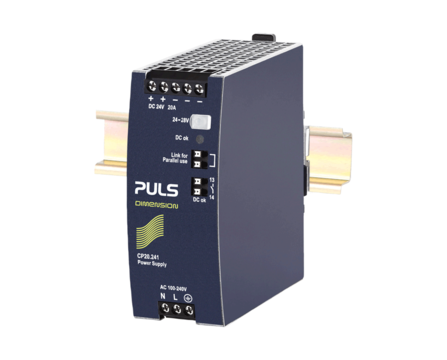

Representative photo. Please check item description for details.
Puls Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Plug Connectors
Manufacturer: Puls Lp
Mfg Product Code: CP20.241-R2
Weight: 1.9 lb(s)
On Hand: 0
The Puls CP20.241-R2 power supply offers a 100-240VAC input and provides a reliable 24VDC output at 20A. Equipped with quick-connect spring-clamp terminals, it ensures easy installation. This durable unit is designed to meet the power demands of industrial applications with consistent performance.
Features
- AC 100-240 V Wide-range input
- Width only 48 mm
- Built-in decoupling mosfet for 1+1 and n+1 redundancy
- Efficiency up to 95.2 %
- 20 % Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking – 3 times nominal current for 12ms
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -40 °C and +60 °C
- DC-OK relay contact
- Current sharing feature included
Puls Redundancy Power Supply, 480W, 100-240VAC 1PH, 24VDC, 20A with Plug Connectors
Measurement Minimum:0
Input Voltage:100-240 VAC
Specifications
| Measurement Minimum | 0 |
| Input Voltage | 100-240 VAC |
