Representative photo. Please check item description for details.

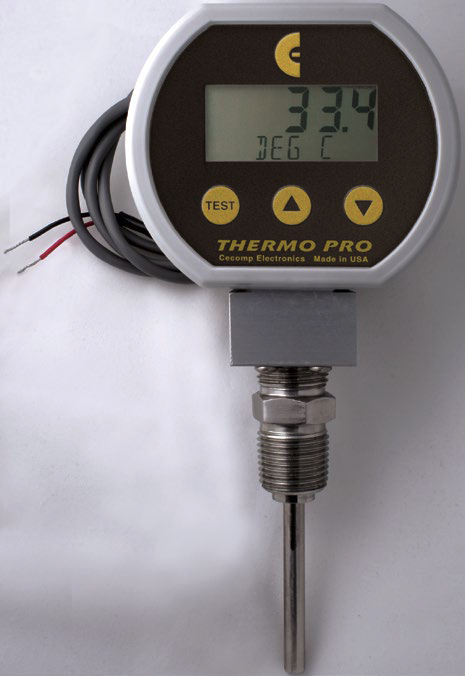

Cecomp T16L Series ThermoPro Temperature Transmitter
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
On Hand: 0
Features
- Specify RTD length
- Specify fixed or spring-loaded RTD
- Selectable °F or °C temperature units
- –58.0°F to 392.0°F or
- –50.0°C to 200.0°C
- 2-wire design
- Powered by 8-32 VDC 4-20 mA current loop
- See data sheet for complete model numbers
- User-programmable 4-20 mA output range
- Selectable °F or °C
- Pass code protected setup and calibration
- 0.1 degree display resolution
- 4 digit display
- Precision 100 Ohm RTD element
- NEMA 4X housing
- 316 stainless steel probe
- 1/2" NPT fitting for standard thermowells
- Spring-loaded probe available for use with thermowells
- 1 year warranty
Cecomp T16L Series ThermoPro Temperature Transmitter
Specifications
| Probe Dimensions | [2] 2.5" L, 1/4" dia 1/2" NPT or [4] 4" L, 1/4" dia, 1/2" NPT or [6] 6" L, 1/4" dia, 1/2" NPT or [9] 9" L, 1/4" dia, 1/2" NPT or [12] 12" L, 1/4" dia, 1/2" NPT |
| Probe Type | Fixed RTD or Spring-Loaded RTD for use in a Thermowell |
| Optional Circuit Board Coating | Without or [CC] Moisture Resistant |
