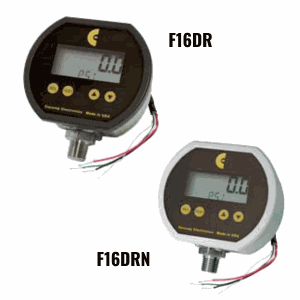

Representative photo. Please check item description for details.
Cecomp F16DR / F16DRN Series Programmable 4-Wire Digital Pressure Transmitter
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
On Hand: 0
Features
- Powered by 8-24 VAC or 9-32 VDC
- Order 2 V or 4-20 mA output
- mA output powers current loop
- Output test button
- ±0.25% test gauge accuracy
- Optional ±0.1% accuracy
- 316 stainless steel sensor
- 1 year warranty
- Vacuum to 1999 psi ranges
- Absolute reference available
- All common engineering units available: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2
- -V for 0-2 volt
- -I for 4-20 mA
- 3-1/2 digit display
- Front zero and span potentiometers
- True analog output
- mA output powers current loop
- Adjustable output test
Cecomp F16DR / F16DRN Series Programmable 4-Wire Digital Pressure Transmitter
Specifications
| Housing | Standard or [N] NEMA 4X |
| Display | Without or [BL] Backlight |
| Unit of Measure | psig or psia or psi vac or atm vac or atma or atmg or bar vac or bara or barg or cmH₂O vac or cmH₂Oa or cmH₂Og or ftH₂O or gcm vac or gcma or gcmg or inH₂O vac or inH₂Oa or inH₂Og or inHg vac or inHga or inHgg or inHg/psi or kg/cm vac or kg/cma or kg/cmg or kpa vac or kpaa or kpag or mbar vac or mbara or mbarg or mmH₂Og or mmHg vac or mmHga or mmHgg or MPag or oz/in² vac or oz/in²a or oz/in²g or torra or torr vac |
| Range | 3 psig or 5 psig or 15 psia or 15 psi vac or ±15 psig or 15 psig or 30 psia or 30 psig or 60 psig or 100 psia or -15v100 psig or 100 psig or -15v200 psig or 200 psig or 300 psig or 500 psig or 1000 psig or 2000 psig or 3000 psig or 5000 psig or 50 oz/in²g or 80 oz/in²g or 240 oz/in²a or 240 oz/in² vac or ±240 oz/in²g or 240 oz/in²g or 480 oz/in²a or 480 oz/in²g or 6 inHgg or 10 inHgg or 30 inHga or 30 inHg vac or ±30 inHgg or 30 inHgg or 60 inHga or 60 inHgg or 120 inHgg or 200 inHga or 200 inHgg or 400 inHgg or 600 inHgg or 1000 inHgg or 2000 inHgg or 4000 inHgg or 1 atma or 1 atm vac or ±1 atmg or 1 atmg or 2 atma or 2 atmg or 4 atmg or 7 atma or 7 atmg or -1v7 atmg or 14 atmg or -1v14 atmg or 20 atmg or 34 atmg or 70 atmg or 140 atmg or 200 atmg or 340 atmg or -30v15 psig or -30v100 psig or 85 inH₂Og or 140 inH₂Og or 400 inH₂Oa or 400 inH₂O vac or ±400 inH₂Og or 400 inH₂Og or 850 inH₂Oa or 850 inH₂Og or 7 ftH₂O or 12 ftH₂O or 35 ftH₂O or 70 ftH₂O or 140 ftH₂O or 230 ftH₂O or 480 ftH₂O or 700 ftH₂O or 1150 ftH₂O or 2300 ftH₂O or 4600 ftH₂O or 6900 ftH₂O or 150 mmHgg or 260 mmHgg or 760 mmHga or 760 mmHg vac or ±760 mmHgg or 760 mmHgg or 1600 mmHga or 1600 mmHgg or 760 torra or 760 torr vac or 1600 torra or 200 mbarg or 350 mbarg or 1000 mbara or 1000 mbar vac or ±1000 mbarg or 1000 mbarg or 2000 mbara or 2000 mbarg or 1 bara or 1 bar vac or ±1 barg or 1 barg or 2 bara or 2 barg or 4 barg or 7 bara or 7 barg or -1v7 barg or 14 barg or -1v14 barg or 20 barg or 35 barg or 70 barg or 140 barg or 200 barg or 350 barg or 2100 mmH₂Og or 3500 mmH₂Og or 210 cmH₂Og or 350 cmH₂Og or 1000 cmH₂Oa or 1000 cmH₂O vac or ±1000 cmH₂Og or 1000 cmH₂Og or 2100 cmH₂Oa or 2100 cmH₂Og or 20 kpag or 35 kPag or 100 kpaa or 100 kpa vac or ±100 kpag or 100 kpag or 200 kpaa or 200 kpag or 400 kpag or 700 kpaa or 700 kpag or -100v700 kpag or 1400 kpag or -100v1400 kpag or 2000 kpag or 3500 kpag or 7000 kpag or 1.4 MPag or -0.1V1.4 MPag or 2 MPag or 3.5 MPag or 7 MPag or 14 MPag or 20 MPag or 35 MPag or 200 gcmg or 350 gcmg or 1000 gcma or 1000 gcm vac or ±1000 gcmg or 1000 gcmg or 2100 gcma or 2100 gcmg or 1 kg/cma or 1 kg/cm vac or ±1 kg/cmg or 1 kg/cmg or 2 kg/cma or 2 kg/cmg or 4 kg/cmg or 7 kg/cma or 7 kg/cmg or -1v 7 kg/cmg or 14 kg/cmg or -1v 14 kg/cmg or 20 kg/cmg or 35 kg/cmg or 70 kg/cmg or 140 kg/cmg or 200 kg/cmg or 350 kg/cmg or -30V200 psig or 30 inHgvac or 6100 inHgg or 235 oz/in² vac or 960 oz/in²g or -235V1600 oz/in²g or 1600 oz/in²a or 1600 oz/in²g or -235V3200 oz/in²g or 3200 oz/in²g or 4800 oz/in²g or 3100 mmHgg or 5200 mmHga or -760V5200 mmHgg or 5200 mmHgg or 1700 inH₂Og or 2800 inH₂Oa or -400V2800 inH₂Og or 2800 inH₂Og or -400V5500 inH₂Og or 5500 inH₂Og or -0.1V0.7 MPag or 0.7 MPag or 4200 cmH₂Og or 7000 cmH₂Oa or 7000 cmH₂Og or 4100 mbarg or 7000 mbara or 7000 mbarg or 200 g/cm²g or 350 g/cm²g or 1000 g/cm²a or 1000 g/cm² vac or ±1000 g/cm²g or 1000 g/cm²g or 2100 g/cm²a or 2100 g/cm²g or 4200 g/cm²g or 7000 g/cm²a or 7000 g/cm²g or 1 kg/cm²a or 1 kg/cm² vac or ±1 kg/cm²g or 1 kg/cm²g or 2 kg/cm²a or 2 kg/cm²g or 4 kg/cm²g or 7 kg/cm²a or 7 kg/cm²g or -1V7 kg/cm²g or 14 kg/cm²g or -1V14 kg/cm²g or 20 kg/cm²g or 35 kg/cm²g or 70 kg/cm²g or 140 kg/cm²g or 200 kg/cm²g or 350 kg/cm²g |
| Output Characteristics | [I] Current output, 4-20 mA DC, Output drive [compliance] determined by power source, 6,553 counts over sensor range or [V] Voltage output, 0-2 VDC into 5k ohm or greater, 6,553 counts over sensor range or [BV] Bipolar voltage output [–2 - 0 - 2 V] for ±15 psig sensor only, ±2 VDC into 5k ohm or greater, 13,107 counts over sensor range |
| Optional High Accuracy | Without or [HA] High accuracy, ±0.1% |
| Optional Front Cover | Without or [MC] Metal Front Cover |
| Optional Circuit Board Coating | Without or [CC] Moisture Resistant |
| Optional Panel Mount | Without or [PM] 4.1" x 4.1" Panel Mount |
| Optional Top Gauge Port | Without or [TP] Top Gauge Port |
| Optional Certification | Without or [NC] NIST Traceability Documentation, 5 Points and Date |
