Cecomp CTP1B/CTP3B Series User Configurable Test + Battery Powered Digital Pressure Gauge
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
On Hand: 0
Features
- AA battery powered
- ±0.25% or ±0.1% accuracy
- 316 stainless steel sensor
- 1 year warranty±0.1% Test Gauge Accuracy
- Ruggedized Design
- Red Rubber Boot Included
- 316L Stainless Steel Wetted Parts
- Selectable Units and Auto Shutoff Times
- White LED Display Backlight
- 4 digit display
- Coated circuit boards for humidity resistance
- User configurable for common engineering units: psi, inHg, oz/in2, inH2O, ftH2O, mmH2O, cmH2O, mmHg, Torr, g/cm2, mbar, bar, kPa, MPa, atm, kg/cm2 (Note: Available engineering units may be limited by sensor range.)
- Min/Max Memory, user configurable
- Save or delete min/max with power off
- Pushbutton zero (gauge reference only)
- Selectable units and auto shutoff time
- Passcode protected configuration via internal buttons (CTP1B) or keypad (CTP3B)
Cecomp CTP1B/CTP3B Series User Configurable Test + Battery Powered Digital Pressure Gauge
Specifications

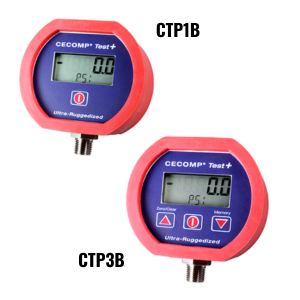

| Model | [CTP1B] 1-Button or [CTP3B] 3-Button |
| Measurement Type | Vacuum or Vacuum Pressure or Pressure or Absolute Reference |
| Range/Resolution | 0 to 14.70 psig vacuum or -14.70 to 15.00 psig or -29.92 inHg to 15.00 psig or -14.7 to 100.0 psig or -29.9 inHg to 100.0 psig or -14.7 to 200.0 psig or -29.9 inHg to 200.0 psig or 0 to 3.000 psig or 0 to 5.000 psig or 0 to 15.00 psig or 0 to 30.00 psig or 0 to 60.00 psig or 0 to 100.0 psig or 0 to 200.0 psig or 0 to 300.0 psig or 0 to 500.0 psig or 0 to 1000 psig or 0 to 2000 psig or 0 to 3000 psig or 0 to 5000 psig or 15.00 to 0 psi absolute or 30.00 to 0 psi absolute or 100.0 to 0 psi absolute |
| Calibration | Without or NIST traceability documentation, 5 points and date |
