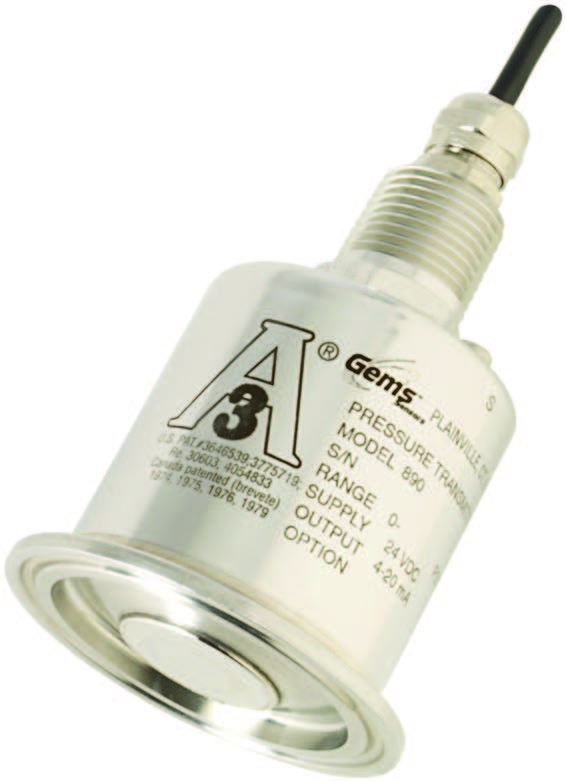

Representative photo. Please check item description for details.
Model 890 Pressure Transmitter, Range 0-5 Psig, Supply 24VDC Output 4-20mA
Manufacturer: Setra Systems LLC (dba Gems Sensors)
Mfg Product Code: C89005G2.0902715884815A
Weight: 1.0 lb(s)
On Hand: 0
2" Tri-Clover Sanitary Fitting
0-5PSIG
4-20mA Output, 18-38VDC Supply Voltage
715 = 0.1% FS accuracy
816 = 16' Cable Length
884 = 20 Ra finish
Model 890 Pressure Transmitter, Range 0-5 Psig, Supply 24VDC Output 4-20mA
2" Tri-Clover Sanitary Fitting
0-5PSIG
4-20mA Output, 18-38VDC Supply Voltage
715 = 0.1% FS accuracy
816 = 16' Cable Length
884 = 20 Ra finish
Measurement Maximum:5.0
Max Operating Pressure:150 psi
Process Connection Location:Bottom
Case Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA, 2-wire
Specifications
| Measurement Maximum | 5.0 |
| Max Operating Pressure | 150 psi |
| Process Connection Location | Bottom |
| Case Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
