  3. | OBSOLETE | Circulation Heater SCREW PLUG, Size: 2 1/2 Inch Plug - 3 Elements,480Vac Powered, 5k watts
Public Pricelist (v2)

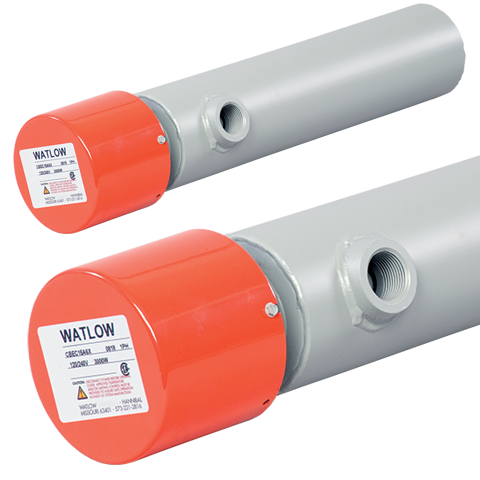

Representative photo. Please check item description for details.

| OBSOLETE | Circulation Heater SCREW PLUG, Size: 2 1/2 Inch Plug - 3 Elements,480Vac Powered, 5k watts

https://www.branom.com/web/image/product.template/185293/image_1920?unique=e9532be
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: BLN739R13W-26

Weight: 26.0 lb(s)

On Hand: 0

Plug Size: 2 1/2 Inch Plug - 3 Elements
Plug Voltage: 480
Plug Wattage: 5,000
Watt Density: 15.4
B Dimension (Immersed element length): 39.8750
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.9375
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: BLN739R13W

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

This combination does not exist.

Contact Us

| OBSOLETE | Circulation Heater SCREW PLUG, Size: 2 1/2 Inch Plug - 3 Elements,480Vac Powered, 5k watts

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

This combination does not exist.

Plug Size: 2 1/2 Inch Plug - 3 Elements
Plug Voltage: 480
Plug Wattage: 5,000
Watt Density: 15.4
B Dimension (Immersed element length): 39.8750
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.9375
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: BLN739R13W

Measurement Maximum:0
Measurement Minimum:0
Input Voltage:480 VAC
Heater Type:Immersion Heaters

Specifications

Measurement Maximum 0
Measurement Minimum 0
Input Voltage 480 VAC
Heater Type Immersion Heaters
