  3. Watlow Screw Plug Heater 240V, 2" Plug, 1500W, 13.5" Immersion
Public Pricelist (v2)

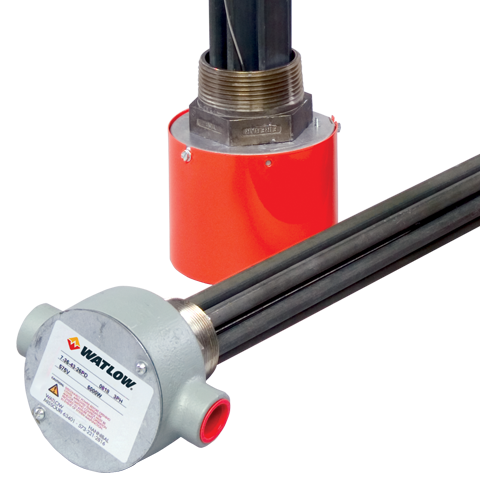

Representative photo. Please check item description for details.

Watlow Screw Plug Heater 240V, 2" Plug, 1500W, 13.5" Immersion

https://www.branom.com/web/image/product.template/287362/image_1920?unique=70ebf67
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: BGS713J6C4

Weight: 2.0 lb(s)

On Hand: 0

Plug Size: 2 Inch Plug - 2 Elements
Plug Voltage: 240
Plug Wattage: 1,500
Watt Density: 22.9
B Dimension (Immersed element length): 13.5000
Electrical Phase configuration: 1 Phase - Series wiring
Dual Voltage: Yes
Lower Voltage value: 120
Wire to the lower Voltage? No
Plug Material: Steel, Standard Class
Element Material: Steel
Cold Section below Plug: 2.6875
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 4 Thermostat, 30-110°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)


$ 1,516.00 1516.0 USD $ 1,516.00

$ 1,516.00

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow Screw Plug Heater 240V, 2" Plug, 1500W, 13.5" Immersion

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage

$ 1,516.00 1516.0 USD $ 1,516.00

$ 1,516.00

Not Available For Sale

This combination does not exist.

Plug Size: 2 Inch Plug - 2 Elements
Plug Voltage: 240
Plug Wattage: 1,500
Watt Density: 22.9
B Dimension (Immersed element length): 13.5000
Electrical Phase configuration: 1 Phase - Series wiring
Dual Voltage: Yes
Lower Voltage value: 120
Wire to the lower Voltage? No
Plug Material: Steel, Standard Class
Element Material: Steel
Cold Section below Plug: 2.6875
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 4 Thermostat, 30-110°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)

Measurement Maximum:0
Measurement Minimum:0
Input Voltage:230 VAC

Specifications

Measurement Maximum 0
Measurement Minimum 0
Input Voltage 230 VAC
