  3. Watlow Tubular Heater; 1” Plug; 120V; 500W; 21.2 Watt Density
Public Pricelist (v2)

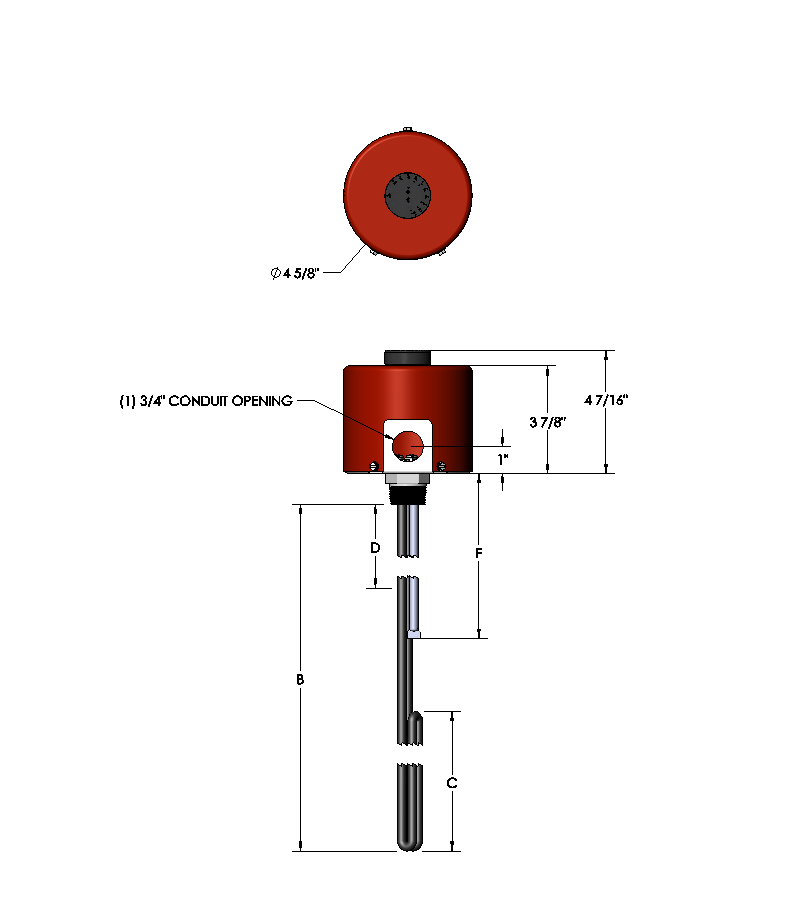

Representative photo. Please check item description for details.

Watlow Tubular Heater; 1” Plug; 120V; 500W; 21.2 Watt Density

https://www.branom.com/web/image/product.template/182557/image_1920?unique=a26a9c1
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: BCS9G1S3

Weight: 2.0 lb(s)

On Hand: 0

Plug Size: 1 Inch Plug - 1 Element
Plug Voltage: 120
Plug Wattage: 500
Watt Density: 21.2
B Dimension (Immersed element length): 9.3750
Electrical Phase configuration: 1 Phase - Parallel wiring
Plug Material: Steel, Standard Class
Element Material: CC Steel
Cold Section below Plug: 1.1250
Foldback the element? Yes
C Dimension for Foldback: 3.7500
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 3 Thermostat, 175-550°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: General Purpose (incl. CSA)

$ 367.00 367.0 USD $ 367.00

$ 367.00

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow Tubular Heater; 1” Plug; 120V; 500W; 21.2 Watt Density

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

$ 367.00 367.0 USD $ 367.00

$ 367.00

Not Available For Sale

This combination does not exist.

Plug Size: 1 Inch Plug - 1 Element
Plug Voltage: 120
Plug Wattage: 500
Watt Density: 21.2
B Dimension (Immersed element length): 9.3750
Electrical Phase configuration: 1 Phase - Parallel wiring
Plug Material: Steel, Standard Class
Element Material: CC Steel
Cold Section below Plug: 1.1250
Foldback the element? Yes
C Dimension for Foldback: 3.7500
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 3 Thermostat, 175-550°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: General Purpose (incl. CSA)

Measurement Maximum:0
Measurement Minimum:0
Input Voltage:120 VAC
Heater Type:Immersion Heaters

Specifications

Measurement Maximum 0
Measurement Minimum 0
Input Voltage 120 VAC
Heater Type Immersion Heaters
