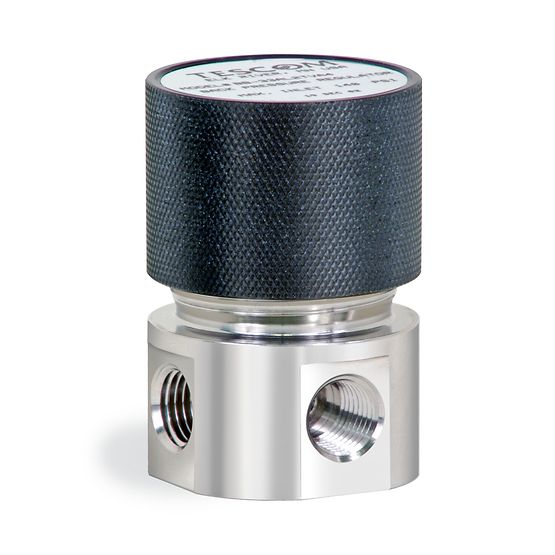

TESCOM™ BB1 Series Pressure Regulator

Manufacturer: Tescom Corporation

Mfg Product Code: BB-13AH1VBA4

Weight: 0.5 lb(s)

Pressure RatingMaximum Inlet Pressure: 6000 psig / 414 bar
Outlet Pressure Ranges
Low Pressure: 0-220 psig / 0-15.2 bar
High Pressure: 0-1800 psig / 0-124 bar
MaterialBody: Aluminum 6061 (Nickel-plated)
Seat: CTFE, PEEK, or Vespel®
O-Rings: See Part Number Selector
Remaining Parts: 300 Series Stainless Steel or Aluminum
Operating Temperature-15°F to 165°F / -26°C to 74°C
-65°F to 165°F / -54°C to 74°C with Buna-N O-Rings
Up to 400°F / 204°C with Vespel® or PEEK Seat
Port Size & Type1/4 NPTF or SAE
Flow CapacityCv = 0.06
Load TypeSpring
