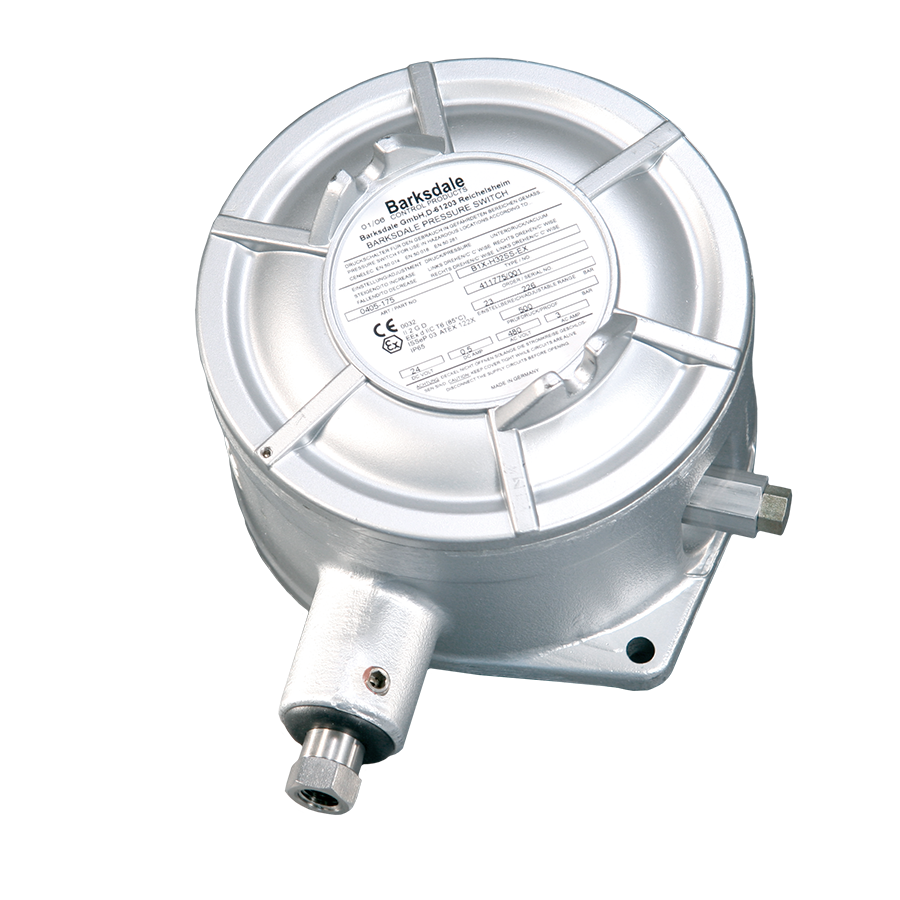

Barksdale B1X Bourdon Tube Pressure Switch, Single Setpoint, 15 Amps @ 125/250/480 VAC; 5 Amps @ 24 VDC; 0.05 Amps @ 125 VDC; .03 Amps @ 250 VDC, 240 to 4800 psi, SS, 1/4 Tube, UL & CSA Approval

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: B1X-S48SS-UL

Weight: 1.0 lb(s)

Single Setpoint
15 Amps @ 125/250/480 VAC, 5 Amps @ 24 VDC, 0.05 Amps @ 125 VDC, .03 Amps @ 250 VDC
240-4800psi Range
Stainless Steel
(Standard) 1/4" NPT for 12, 20 & 32 ranges, 1/4" tube for 48 - 72 ranges
UL & CSA Approval

Barksdale's B1X and B2X Explosion-Proof Bourdon Tube Pressure Switches provide exceptional accuracy and reliability for critical pressure control in hazardous locations.

Key Features:

• Exceptional Accuracy: Delivers instrument-class accuracy for precise pressure control.
• Enhanced Safety:
  • Explosion-proof housing for safe operation in hazardous locations.
  • Hermetically sealed for enhanced protection.
  • Tamper-proof setpoint adjustment for added security.
• High Performance:
  • Built-in over-travel stops for increased safety and reliability.
• Flexible Configurations:
  • Available in single and dual circuit configurations to meet diverse application needs.
  • Variety of limit switches available for flexible electrical switching options.
• Rugged Construction:
  • NEMA 4, 7, 9, and IP66 rated for enhanced protection against harsh environments.
  • UL, CSA, ATEX approved for global use.

Applications:

• Power plants
• Water pumps
• Blow out preventers (BOP)
• Pneumatic devices
• General industrial applications
• Oil and gas applications
