  3. Barksdale B1T Bourdon Tube Pressure Switch, Housed Single Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; 0.5 A @ 24 VDC, 600 to 12000 psi, SS, 1/4" NPTF, Oxygen Cleaned, Preset: S9500R
Public Pricelist (v2)

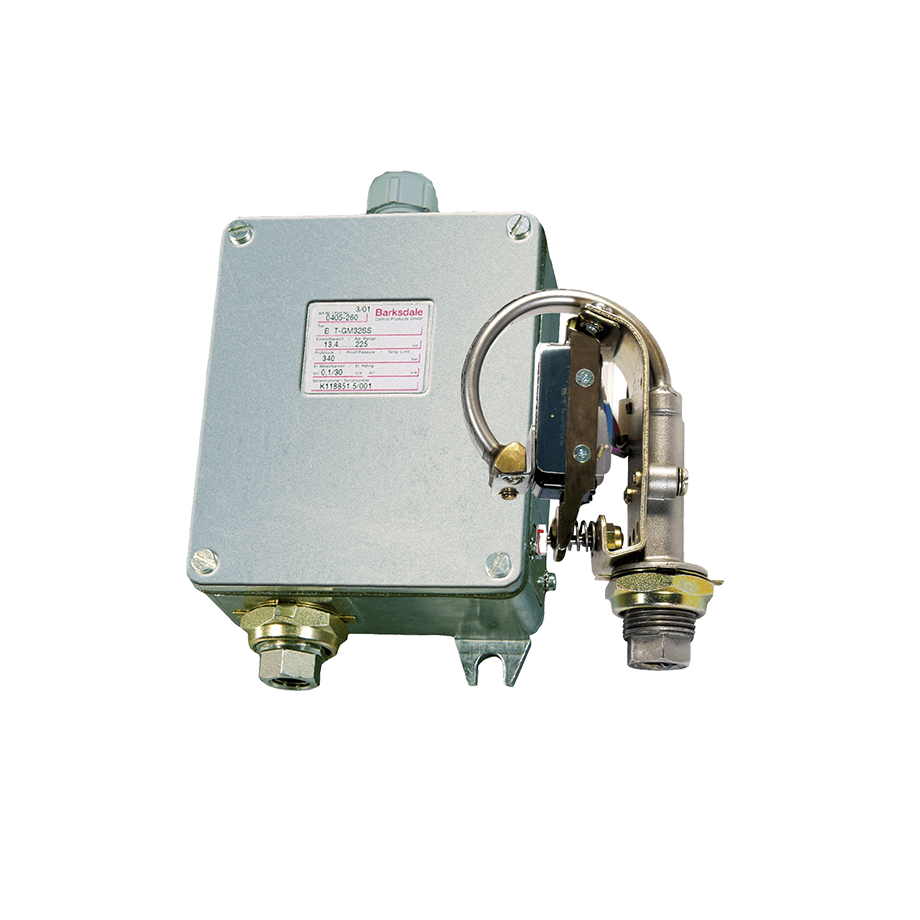

Representative photo. Please check item description for details.

Barksdale B1T Bourdon Tube Pressure Switch, Housed Single Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; 0.5 A @ 24 VDC, 600 to 12000 psi, SS, 1/4" NPTF, Oxygen Cleaned, Preset: S9500R

https://www.branom.com/web/image/product.template/183757/image_1920?unique=b38c30f
(0 review)

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: B1T-A120SS-P4-Z1-S9500R

Weight: 2.0 lb(s)

On Hand: 0

10AMPS @ 125/250VAC, 3AMPS @ 480VAC
ADJUSTABLE PRESSURE RANGE, DECREASING:600-11450PSI, INCREASING:1150-12000PSI
STAINLESS STEEL BOURDON TUBE
1/4"NPTF PROCESS CONNECTION
CLEANED FOR QXYGEN SERVICE
FACTORY TO SET AT 7300PSI RISING

Barksdale's Series 9048 Sealed Piston Pressure Switches deliver exceptional performance and reliability for critical pressure control applications.

Key Features:

  • Exceptional Durability:
    • Designed for long life and reliable operation in demanding environments.
    • Oil and dust-tight construction for enhanced protection.
  • High Pressure Capability:
    • Handles pressures up to 12,000 psi.
    • High proof pressure for enhanced reliability.
  • Rugged Design:
    • Durable, anodized aluminum enclosure with an integrated ½" NPS conduit connector.
    • Tamper-resistant set point adjustment screw.
    • NEMA 13 rated for enhanced protection.
  • Easy Adjustment:
    • Easily adjust setpoints for precise pressure control.

Applications:

  • Machine tools
  • Hydraulic presses
  • Compactors
  • Hydraulic power units
  • Compressors

  • Measurement Maximum
  • Process Connection Type
  • Process Connection Location
  • Measurement Minimum
  • Input Voltage
  • NEMA / UL

This combination does not exist.

Contact Us

Barksdale B1T Bourdon Tube Pressure Switch, Housed Single Setpoint, 10 Amps @ 125/250 VAC; 3 A @ 480 VAC; 0.5 A @ 24 VDC, 600 to 12000 psi, SS, 1/4" NPTF, Oxygen Cleaned, Preset: S9500R

  • Measurement Maximum
  • Process Connection Type
  • Process Connection Location
  • Measurement Minimum
  • Input Voltage
  • NEMA / UL

$ 1,630.33 1630.33 USD $ 1,630.33

$ 1,630.33

Not Available For Sale

This combination does not exist.

10AMPS @ 125/250VAC, 3AMPS @ 480VAC
ADJUSTABLE PRESSURE RANGE, DECREASING:600-11450PSI, INCREASING:1150-12000PSI
STAINLESS STEEL BOURDON TUBE
1/4"NPTF PROCESS CONNECTION
CLEANED FOR QXYGEN SERVICE
FACTORY TO SET AT 7300PSI RISING

Measurement Maximum:11450
Process Connection Type:NPT-Female
Process Connection Location:Bottom
Measurement Minimum:600
Input Voltage:100-240 VAC
NEMA / UL:NEMA 4

Specifications

Measurement Maximum 11450
Process Connection Type NPT-Female
Process Connection Location Bottom
Measurement Minimum 600
Input Voltage 100-240 VAC
NEMA / UL NEMA 4
