Barben 546 Performance Series pH/ORP Sensor, PVDF Kynar Body, Viton Seals, 3/4 NPT, 1.5 in Insertion, 15 ft Cable

Manufacturer: Universal Analyzers Inc

Mfg Product Code: B-V-546-R-DT-C-S-1.5-15-E-TT

Weight: 2.0 lb(s)

B - PVDF Kynar Body
V - Viton Seals
546 - 3/4 MNPT Threaded - In-Line/Submersible, High Pressure Hot Tap (300 PSIG) pH/ORP Sensors
R - Ruggedized Hemi PH
DT - Dual Notch Teflon Tip
C - PT100 RTD Temperature Compensation
S - Standard Sensor
1.5" Insertion Depth
15 - 15FT Cable
E - Reference on External 24AWG Lead
TT - All Tinned Lead Termination

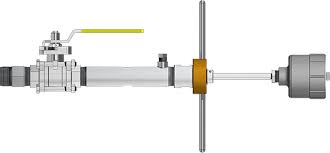

The versatile Model 546 is suitable for in-line sample stream applications using the 3/4 inch NPT process connection. A similar 3/4 inch NPT connection on the rear of the sensor is used to mount the sensor in submersible and high pressure hot tap installations. With tip lengths from 0.5 to 5.0 inches the 546 sensor can fit through extended pipe nipples and flanges to reach into the process and provide optimum pH/ORP measurement.

Features

• Barben pH/ORP Sensor
• PVDF Kynar Body
• Viton Seals
• 3/4 MNPT
• Dual Notch Teflon Tip
• PT1000 RTD Temp Compensation
• 1.5" Insertion

• 15ft Cable
