Barben 546 Performance Series pH/ORP Sensor, PVDF Kynar Body, EPDM Seals, 3/4 NPT, 0.5 in Insertion, 15 ft Cable

Manufacturer: Universal Analyzers Inc

Mfg Product Code: B-E-546-FG-FT-C-S-0.5-15-C-TT

Weight: 2.0 lb(s)

Ruggedized, Flat Glass (0-14pH) 20-130C (68-266F)
Flush Tip No Protection
PT100 RTD Temperature Compensation (3-Wire)
Standard Sensor
Reference Wire on Coax Shield
All Tinned Lead Termination for Thermocouple

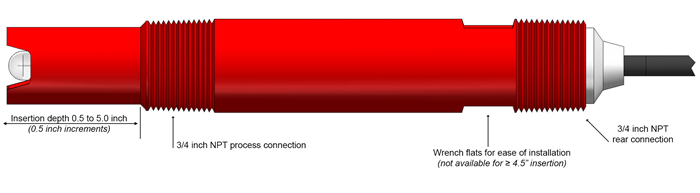

The versatile Model 546 is suitable for in-line sample stream applications using the 3/4 inch NPT process connection. A similar 3/4 inch NPT connection on the rear of the sensor is used to mount the sensor in submersible and high pressure hot tap installations. With tip lengths from 0.5 to 5.0 inches the 546 sensor can fit through extended pipe nipples and flanges to reach into the process and provide optimum pH/ORP measurement.

Features

• Ruggedized, Flat Glass (0-14pH) 20-130C (68-266F)
• Flush Tip No Protection
• PT100 RTD Temperature Compensation (3-Wire)
• Standard Sensor
• Reference Wire on Coax Shield
• All Tinned Lead Termination for Thermocouple
