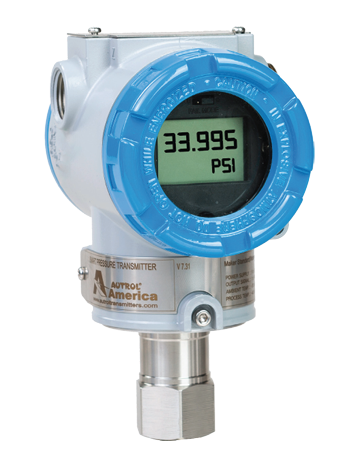

APT 3200 Smart Gauge Pressure Transmitter
Manufacturer: Autrol America Inc
Mfg Product Code:
More Options Available on Request! See Datasheet for More Details
APT 3200 Smart Gauge Pressure Transmitter uses the world’s most advance silicon pressure sensor technology and state of the art encapsulation technology. This is a high performance pressure transmitter with HART® communication protocol and is used to measure gauge pressure. It is used to measure liquid, gas, or steam flow as well as liquid level and density of medium. It an accuracy of up to 0.075% of URL and has IP66 water-proof protection.
Features
- Flexible Sensor Input: GP, AP, Flush Mount
- Various Output: 4-20mA, Digital Signals
- Setting Various Parameters: Zero/Span, Trim, Unit, Fail-mode, etc.
- Self Diagnostic Function: Sensor, Memory A/D Converter, Power, etc.
- Digital Communication with HART protocol
- Explosion-proof Approval & Intrinsic Safety Approval: ATEX,FM, FM Canada, GOST, KCs, etc.
- Marine Certificate: ABS, LR, BV, DNV
APT 3200 Smart Gauge Pressure Transmitter
Description:4-20 mA Output / HART, Loop Powered, 2000 PSI Max Working Pressure, IP66/67, NEMA 4X, ± 0.075% Accuracy, Programmable, -104 to 248°F Process Temp Limit
Flange/Drain/Diaphragm Material:[M11] 316 SST
Hazardous Area Approval:[F1] FM/FMC Explosion proof (for USA & Canada) Class I/II/III, Division 1 & 2
Fill Fluid:[1] DC Silicone 200, -40 to 400 F
Process Connection:[S] 1/2" - 14 NPT-Female
Electrical Connection/Housing:[1] 1/2" - 14 NPT-Female, Epoxy Coated Aluminum
Indication:[M1] LCD Display
Specifications
| Pressure Range / Min Span / Max Span | [G3] -14.5 to 21 psig / 0.217 psig / 21psig or [G4] -14.5 to 217 psig / 2.17 psig / 217 psig or [G5] 0 to 725 psig / 7.25 psig / 725 psig or [G6] 0 to 3625 psig / 36 psig / 3625 psig or [G7] 0 to 8700 psig / 87 psig / 8700 psig |
| Lightening Protector | Without or [LP] Internal Type |
| Optional Configuration / Calibration | Standard or [FC] Factory Configured to Customer Specified Measurement Range (No Cert) or [CC] Custom Calibration with Certificate |
| Optional Manifold | Without or [WB] Block and Bleed, 316 SS |
| Optional Mounting Bracket | Without or [BA] Universal Angle Bracket Kit, 316 SS or [BF] Universal Flat Bracket Kit, 316 SS |
| Description | 4-20 mA Output / HART, Loop Powered, 2000 PSI Max Working Pressure, IP66/67, NEMA 4X, ± 0.075% Accuracy, Programmable, -104 to 248°F Process Temp Limit |
| Flange/Drain/Diaphragm Material | [M11] 316 SST |
| Hazardous Area Approval | [F1] FM/FMC Explosion proof (for USA & Canada) Class I/II/III, Division 1 & 2 |
| Fill Fluid | [1] DC Silicone 200, -40 to 400 F |
| Process Connection | [S] 1/2" - 14 NPT-Female |
| Electrical Connection/Housing | [1] 1/2" - 14 NPT-Female, Epoxy Coated Aluminum |
| Indication | [M1] LCD Display |
