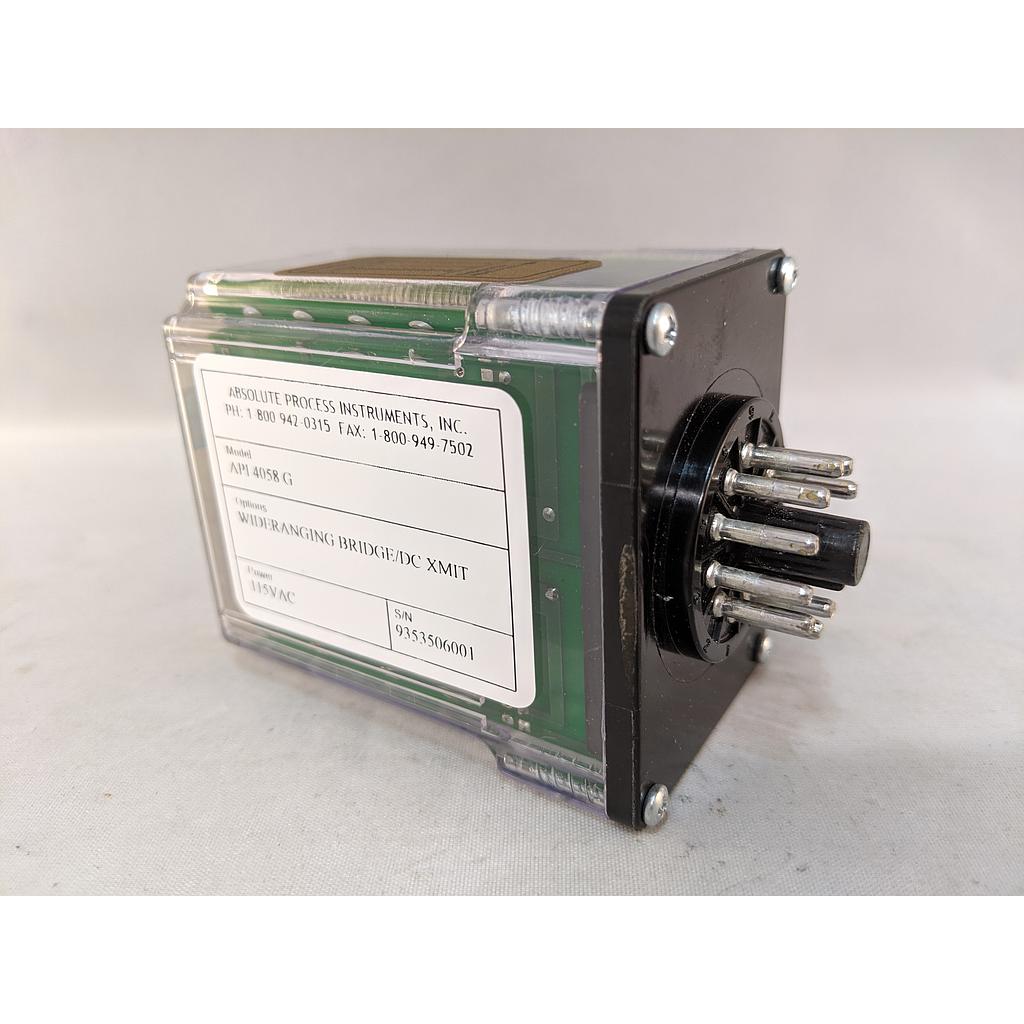

Strain Gauge/Bridge/Load Cell/Pressure Transducer to DC Transmitters, Field Rangeable

Manufacturer: Absolute Process Instruments Inc Aka Api

Mfg Product Code: API 4058 G

Weight: 0.68 lb(s)

BRIDGE TO DC TRANSMITTER, FIELD SELECT, NON-ISOLATED

Input: One to Four 350 n Sensors, 0-5 mV to 0-1200 mV, 4-10 VDC Excitation
Output: 0-1 V to ±10 V or 0-1 mA to 4-20 mA, Non-Isolated

• Drive up to Four 350 n Bridges
• Adjustable Excitation Power Supply
• One Minute Setup for Hundreds of I/O Ranges
• Easy-to-use External Switches for Setup
• Hot-Swappable Plug-In Design
• Input and Drive up to Four 350 n Bridges
• Adjustable Excitation Power Supply
• One Minute Setup for Hundreds of I/O Ranges
• Easy-to-use External Switches for Setup
• Hot-Swappable Plug-In Design
• Input and Output LoopTracker® LEDs
• Output Test or Calibration Resistor Options

Applications

• Load Cell Weighing Systems and Scales
• Strain Gauge Pressure Sensors and Transducers
• Tanks, Scales, Extruder Melt Pressure, Crane Loads
