API 1080 G Series DC Input Isolated Alarm, Field Rangeable
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
The API 1080 G and API 1090 G accept a DC voltage or current input and provide visual alarm indication and alarm relay contact outputs. Voltage and current input ranges can be field-configured via external rotary and slide switches. Offset ranges such as 1-5 VDC and 4-20 mADC are also included. Heavy-duty relay contacts allow the module to directly control high capacity loads. Top-accessible potentiometers are used to adjust the alarm setpoint from 0 to 100% and the deadband from 1 to 100%.
The API 1080 G provides a single setpoint adjustment of the
two DPST relay contacts. The alarm output can be field configured
for HI or LO operation, latching or non-latching, and
normal or reverse acting. The deadband and alarm setpoint
are adjustable.
The API 1090 G provides two setpoint adjustments of the two SPDT relay contacts. The alarm outputs can be configured in the field for HI/HI, LO/LO, HI/LO or LO/HI operation, latching or non-latching, and normal or reverse acting. Deadband and alarm setpoints are independently adjustable for each alarm.
Features
One DPDT contact set
Adjustable setpoint and deadband
User adjustable setpoint(s)
User adjustable deadband(s)
User selectable alarm logic
8 Amp SPDT contacts
Alarm status LEDs
Selectable sink/source mA input
15 V input loop power supply
Input LoopTracker LED
Push to test/reset
Full I/O/power isolation
Hot-swappable plug-in design
Uses API-011 11-pin socket
115 VAC powered
A230 option for 230 VAC
P option: 85-265 VAC, 60-300 VDC power (+$60)
D option: 9-30 VDC power (+$60)
6 Year Warranty on API Modules

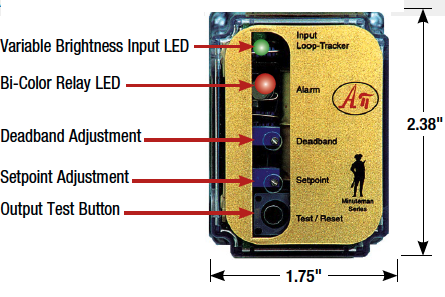

LoopTracker® Input LED
Alarm Status LEDs

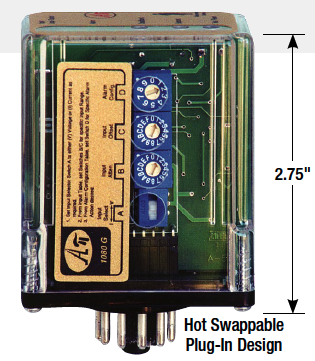

Hot-Swappable Plug-In Design
User Adjustable Setpoint(s)
Push to Test/Reset Alarms
Full I/O/Power Isolation
API 1080 G Series DC Input Isolated Alarm, Field Rangeable
Description:1 Alarm Plug-In, 1 SPDT Relay, 1 Setpoint
Alternative Products
Specifications
| Power | 115 VAC or [A230] 230 VAC or [D] 9-30 VDC or [P] 85-265 VAC, 60-300 VDC |
| Optional Conformal Coating | Without or [U] Conformal Coating |
| Description | 1 Alarm Plug-In, 1 SPDT Relay, 1 Setpoint |
