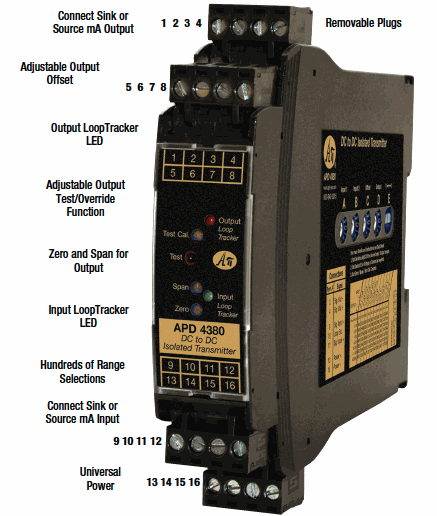

APD 4380 Series DC to DC Transmitter, Fully Isolated, DIN Rail Mount
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
The APD 4380 accepts a DC voltage or current input and provides an optically isolated DC voltage or current output that is linearly related to the input.
Typical applications include signal isolation, conversion, boosting or a combination of the three. Full 3-way isolation (input, output, power) makes this module useful for ground loop elimination, common mode signal rejection or noise pickup reduction.
Features
One Minute Setup for Hundreds of I/O Ranges
External Switches & Tables for Range Selection
Zero and Span Output Calibration Potentiometers
Full 1200 V Input/Output/Power Isolation
Input and Output LoopTracker® LEDs
Output Test Button
Built-In Loop Power Supplies for Sink/Source I/O
APD 4380 Series DC to DC Transmitter, Fully Isolated, DIN Rail Mount
Specifications
| Power | 85-265 VAC, 60-300 VDC or [D] 9-30 VDC, 10-32 VAC |
| Optional Reverse-Acting Output | Without or [R] Reverse-Acting Output |
| Optional Fast Response | Without or [DF] Fast Response |
| Optional Conformal Coating | Without or [U] Conformal Coating |
