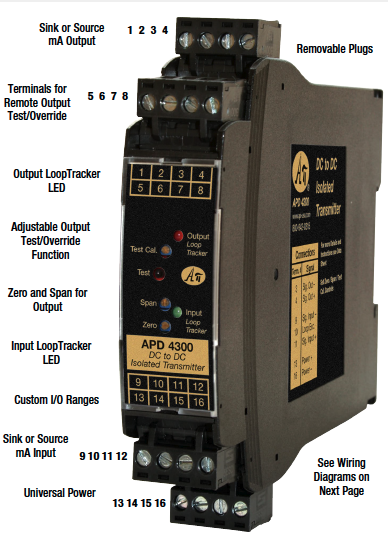

APD 4300 Series DC to DC Transmitter Isolator, Factory Ranged Options, DIN
Manufacturer: Absolute Process Instruments Inc Aka Api
Mfg Product Code:
The APD 4300 accepts a DC voltage or current input and provides an optically isolated DC voltage or current output that is linearly related to the input.
Typical applications include signal isolation, conversion, boosting or a combination of the three. Full 3-way isolation (input, output, power) makes this module useful for ground loop elimination, common mode signal rejection or noise pickup reduction.
The APD 4300 can be factory configured for 4-20 mA input and 4-20 mA output to solve signal isolation, ground loop, common mode, or noise pickup problems for non-isolated PLC inputs.
For maximum versatility loop excitation power supplies are included for the input and output. A mA input and a mA output can be selectively wired for sinking or sourcing. This allows the APD 4300 to work with any combination of sinking or sourcing mA transmitters and sinking or sourcing mA receiving devices.
Features:
- Full 1200 V Input/Output/Power Isolation
- Zero and Span Output Calibration Potentiometers
- Input and Output LoopTracker® LEDs
- Functional Test Button with Remote Capability
- Built-In Loop Power Supplies for Input and Output
APD 4300 Series DC to DC Transmitter Isolator, Factory Ranged Options, DIN
Specifications
| Power | 85-265 VAC, 60-300 VDC or [D] 9-30 VDC, 10-32 VAC |
| DC Input Range | Voltage: 0-100 mVDC to 0-300 VDC or Bipolar Voltage: ±100 mVDC to ±10 VDC or Current: 0-1 mADC to 0-1000 mADC |
| DC Output Range | Voltage, 10 mA max.: 0-1 VDC to 0-10 VDC or [M09] Voltage M09: 0-10 VDC to 0-20 VDC or Bipolar Voltage: ±1 VDC to ±10 VDC or Current: 0-1 mADC to 0-20 mADC |
| Optional Input/Output Reversal | Without or [R] I/O Reversal |
| Optional Fast Response | Without or [DF] Fast Response |
| Optional Moisture Resistance | Without or [U] Conformal Coating |
