Flomec A1 Series, Turbine Flow Meter, Battery Powered Display, Aluminum Body for Thin Petroleum-based Fluids, 1" NPTF, Gallon UoM

Manufacturer: Great Plains Industries (GPI/Flomec)

Mfg Product Code: A1Q9GMA100NA1

Weight: 2.0 lb(s)

A1 Series Turbine Meters
Q9 2-Button Computer
GM Gallons Per Minute (For Use With Q9, P9, 42, R9 Electronics Only)
A100 1" Aluminum
N NPT (Female)
A1 Standard

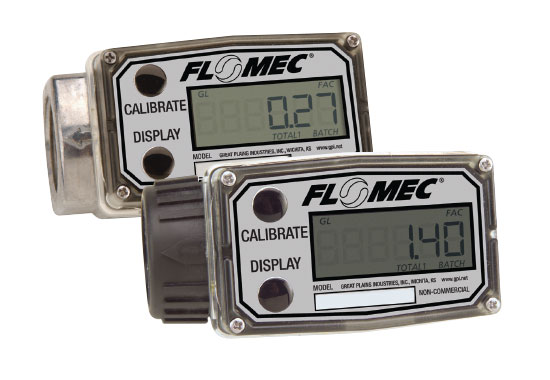

FLOMEC® A1 Series Turbine Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. NOTE: If the meter includes any module (4-20mA or Pulse Out) that introduces external power, then all intrinsic safety approvals are voided.

Features & Benefits

• Unique package combines Turbine and LCD into a self-contained, compact, economical meter
• Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
• Output capabilities available to communicate with process control equipment
• Lightweight, compact design allows for easy installation
• 12 selectable engineering units (gallons or liters are standard defaults)
• Factory calibration
• AAA Alkaline battery life: 2 years
