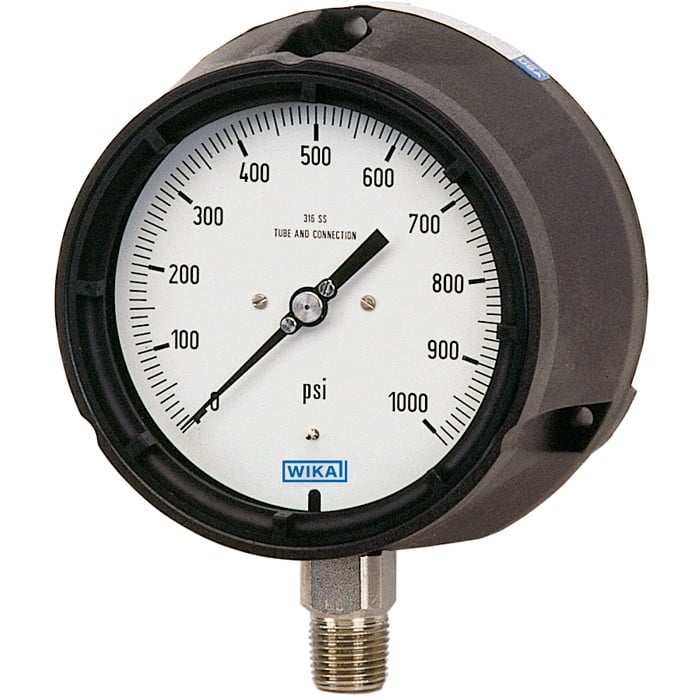

Wika 232.34 Series Dry Process Gauge, 4.5" Dial, 0 to 1000 psi, 1/2 NPT SS Lower Mount
Manufacturer: Wika Instrument Lp
Mfg Product Code: 9834893-0002
Weight: 2.0 lb(s)
232.34.4.5" 1000 psi 1/2 NPT lower mount
Introducing the Series 234.34 XSEL® Process Gauge, designed to thrive in demanding environments and applications. Ideal for industries such as chemical/petrochemical, power stations, mining, and more, it's equipped to handle high dynamic pressure pulsations and vibrations with options for a liquid-filled case and socket restrictor.
Crafted from stainless steel, this gauge is built to withstand corrosive environments and is compatible with gaseous or liquid media without obstructing the pressure system. With excellent load-cycle stability and shock resistance, along with positive pressure ranges up to 30,000 psi (2,000 bar), it ensures reliable performance under extreme conditions.
Featuring a solid front thermoplastic case and factory-prepared lower mount connections for case filling, the Series 234.34 XSEL® Process Gauge offers durability, precision, and convenience for accurate pressure measurement in diverse industrial settings.
Available through
Branom Instrument Co., your trusted source for top-quality
instrumentation. Branom is the preferred seller for all your industrial
measurement needs.
Features
- Model: 232.34
- Specifications: APM 02.10
- Case: Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
- Bezel ring: Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
- Measuring System: Stainless Steel
- Case filling: None
- Nominal size: 4.5 inches
- Scale range: 0/1000 psi
- Process Connection: 1/2 NPT
- Connector location: Lower mount
- Window: Acrylic (PMMA)
- Restrictor: Stainless steel, D 0.6
- Pointer: Adjustable pointer
- Certificates: Quality certificates
- Accuracy Class: +/- .5% (ASME B40.100 2A)
- Material pressure element: Measuring System 316L
- Case filling fluid: Prepared for filling
- Ingress Protection: IP 65
- Dial description:
- Pressure Gauge Standard: US-Standard
- Color for 1. scale (outside): Black
- Dial background: White
- WIKA®
- Serial number on dial: Serial number ...
- Stop pin on dial: At 6 o'clock
- Inspection certificate: 3.1 per EN 10204
- Certificate type: Inspection certificate acc. to EN 10204 3.1
- Certificate Languages: English and German
- Certificate for: Pressure gauge
- Accuracy: Calibration values listed (traceable to national standards)
Wika 232.34 Series Dry Process Gauge, 4.5" Dial, 0 to 1000 psi, 1/2 NPT SS Lower Mount
232.34.4.5" 1000 psi 1/2 NPT lower mount
Gauge: Brand:Wika
Gauge: Model:232.34
Gauge: Dial Size:4-1/2 in (110 & 115 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Gauge Pressure
Gauge: Measuring Principle:Bourdon Tube
Gauge: Fill Type:Dry
Gauge: Product Unit of Measure:psi
Gauge: Process Connection Size:1/2 NPT
Gauge: Process Connection Location:Lower Mount
Gauge: Wetted Material:Stainless Steel
Gauge: Accuracy:±0.5%
Gauge: Ingress Protection:IP 65
Gauge: Case Material:POCAN
Specifications
| Gauge: Brand | Wika |
| Gauge: Model | 232.34 |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | psi |
| Gauge: Process Connection Size | 1/2 NPT |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±0.5% |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Case Material | POCAN |
