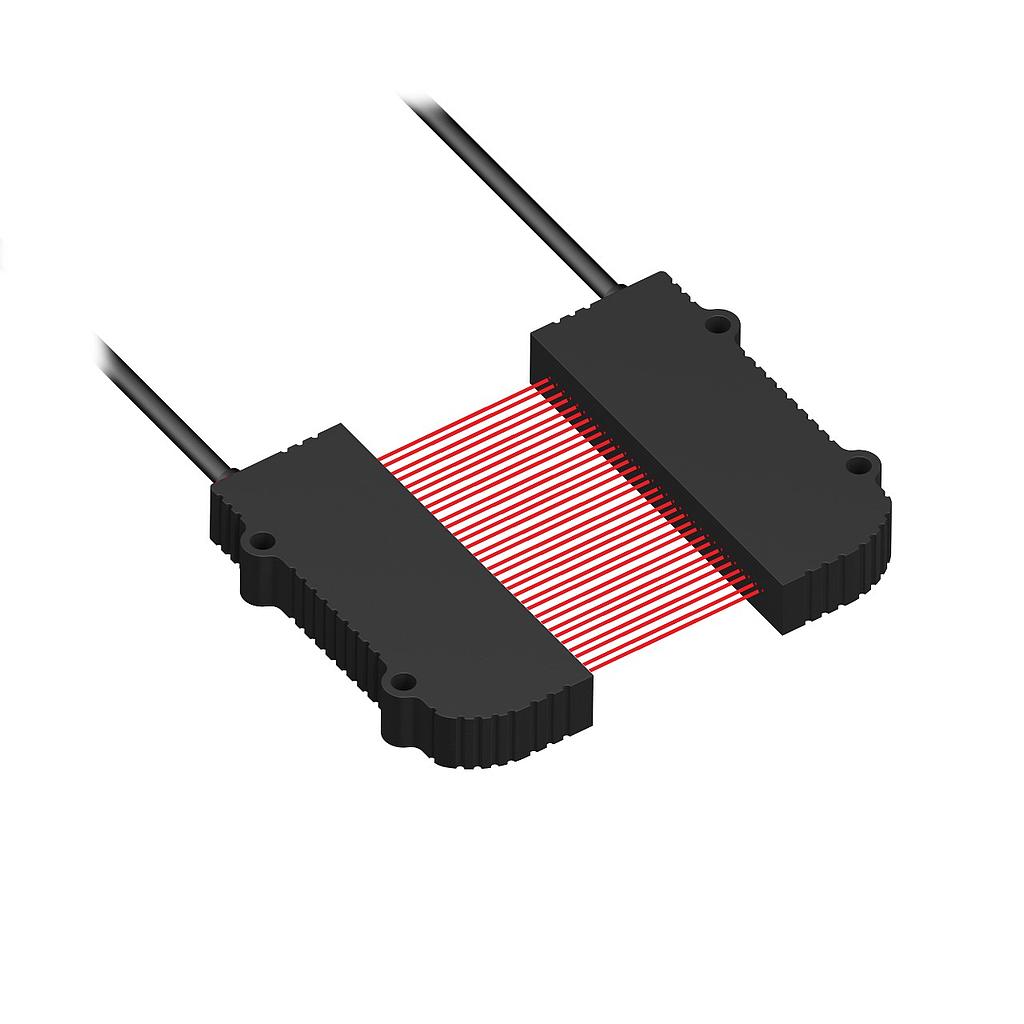

Plastic Fiber (PIRS1X326T5AL47)
Plastic Fiber
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Opposed
Array Length:46.5 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Rectangle
Tariff Fiber Meters:128 fbm
Measured Max Distance:438 mm
Min Bend Radius:60 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:55.0 x 20.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Free Cut
Sensing End Material (Specific):Polyethylene
Feature: Integrated Lens:Yes
Core Diameter:32 x 0.3 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:55.0 x 20.0 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Sideview
Sensing End Segment 3:Array
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 3m to <= 5m
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:438 mm
Max Distance: DF-G3:3403 mm
Max Distance: DF-G2:709 mm
Minimum Bend Radius:60 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Opposed |
| Array Length | 46.5 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Rectangle |
| Tariff Fiber Meters | 128 fbm |
| Measured Max Distance | 438 mm |
| Min Bend Radius | 60 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 55.0 x 20.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Free Cut |
| Sensing End Material (Specific) | Polyethylene |
| Feature: Integrated Lens | Yes |
| Core Diameter | 32 x 0.3 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 55.0 x 20.0 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Sideview |
| Sensing End Segment 3 | Array |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 3m to <= 5m |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 438 mm |
| Max Distance: DF-G3 | 3403 mm |
| Max Distance: DF-G2 | 709 mm |
| Minimum Bend Radius | 60 mm |
