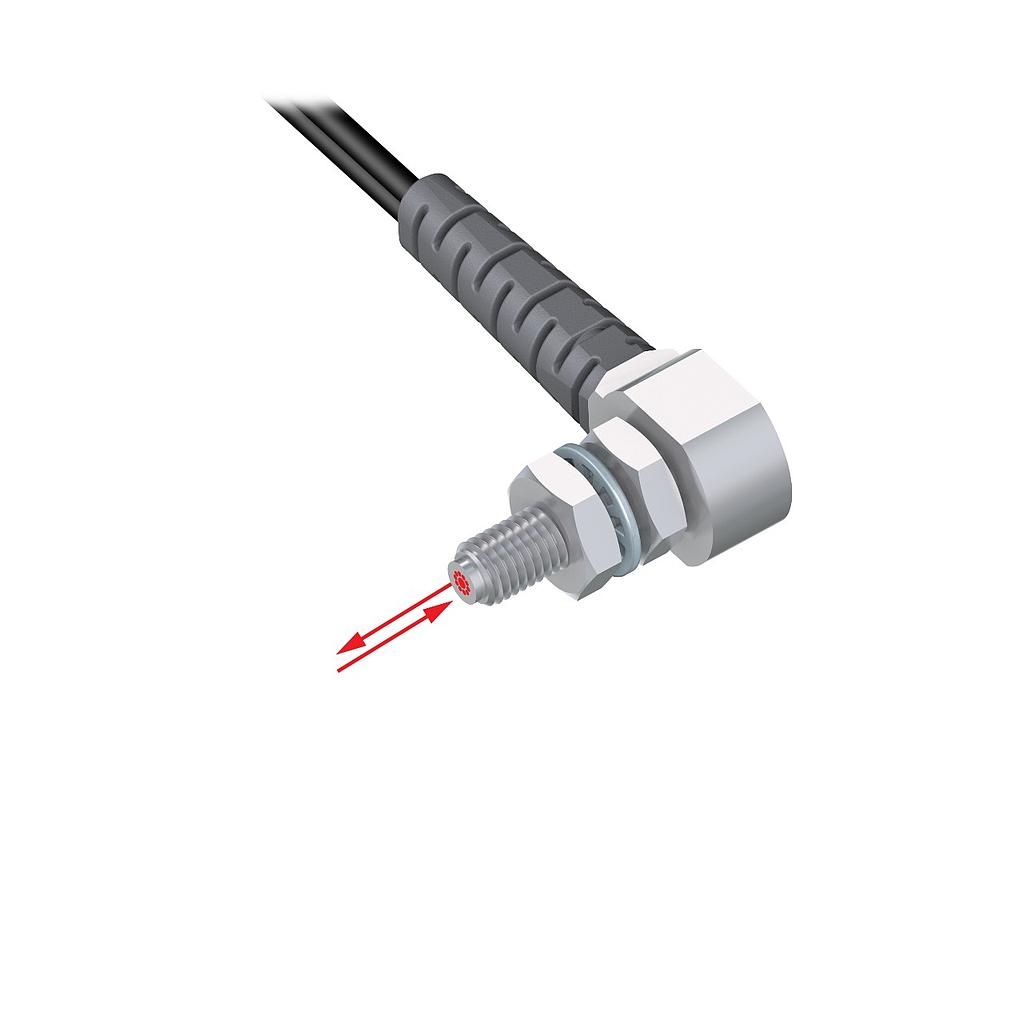

Plastic Fiber (PBCAT26UM3TA-VL)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 97760
Weight: 0.03 lb(s)
Plastic Fiber
Features:
- Plastic Fiber
- Diffuse Reflective
- Core Dia.: 0.5 mm & 10 x 0.25 mm
- Fiber Length 2 m
- Right Angle, M3 Thread
- Bend Radius 15 mm, Flex Relief
- Free cut
- Vantage Line
Plastic Fiber (PBCAT26UM3TA-VL)
Plastic Fiber
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Coaxial
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Sideview
Tariff Fiber Meters:22 fbm
Measured Max Distance:46 mm
Min Bend Radius:15 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No, No
Fiber Sensing End Size:M3
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Free Cut
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:0.5 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M3
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Thread
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 100mm to <= 500mm
Min Hinged Door Size:15 mm
Min Repeat Bending Endurance:5000
Country of Origin:TW
Max Distance: DF-G1:46 mm
Max Distance: DF-G3:354 mm
Max Distance: DF-G2:74 mm
Minimum Bend Radius:15 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Coaxial |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Sideview |
| Tariff Fiber Meters | 22 fbm |
| Measured Max Distance | 46 mm |
| Min Bend Radius | 15 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No, No |
| Fiber Sensing End Size | M3 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Free Cut |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 0.5 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M3 |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Thread |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 100mm to <= 500mm |
| Min Hinged Door Size | 15 mm |
| Min Repeat Bending Endurance | 5000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 46 mm |
| Max Distance: DF-G3 | 354 mm |
| Max Distance: DF-G2 | 74 mm |
| Minimum Bend Radius | 15 mm |
