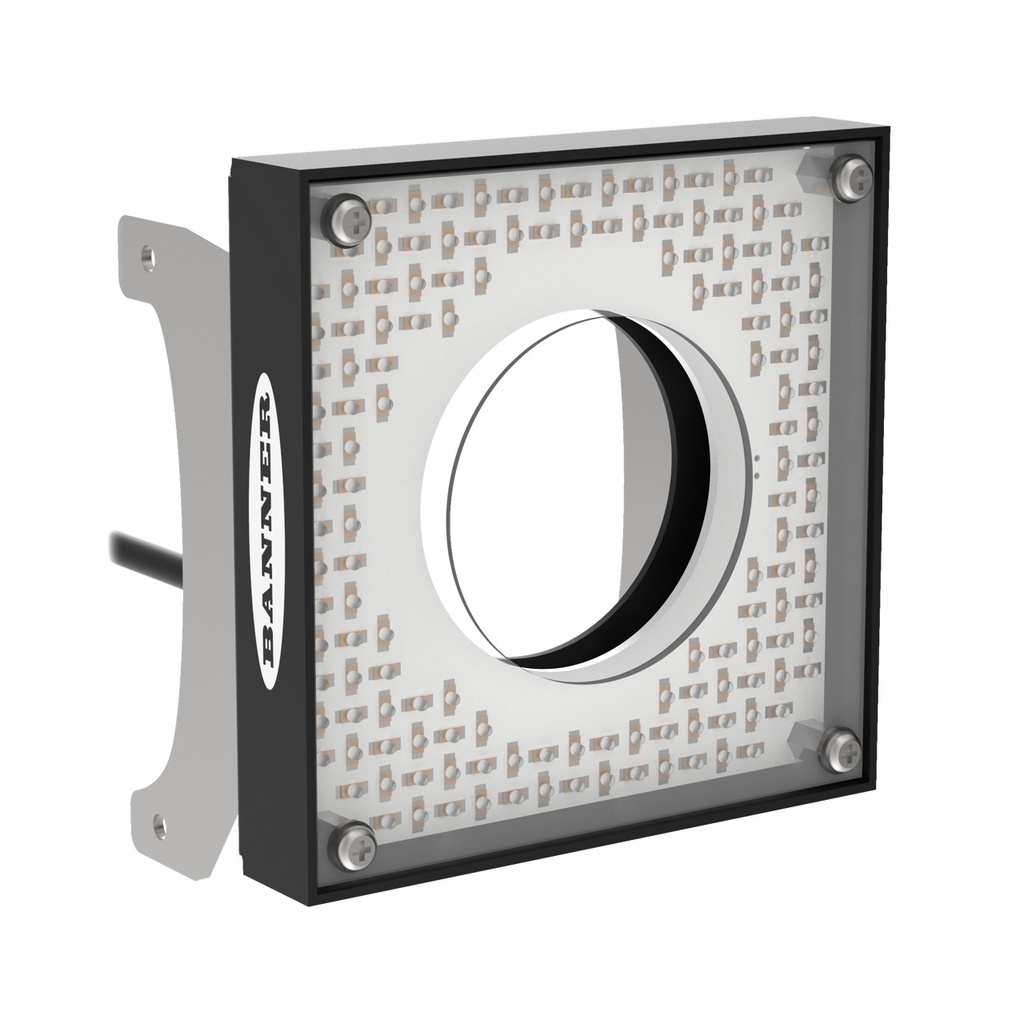

VE Series 80 x 80 mm Ring Light (LEDWRV80X80M)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 97374
Weight: 0.48 lb(s)
On Hand: 0
VE Series 80 x 80 mm Ring Light Visible White LED
Features:
- VE Series 80 x 80 mm Ring Light
- Visible White LED
- 24 V dc
- 0.3 m (1 ft) Cable with 3-pin male Connector
- Connects to VE Smart Camera
VE Series 80 x 80 mm Ring Light (LEDWRV80X80M)
VE Series 80 x 80 mm Ring Light Visible White LED
Power:DC
Measurement Maximum:0
Max Current Color:250 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Rectangular
Device Type:Ring Light
Housing Material_:Aluminum
Physical Dimensions:87.3 x 87.3 x 35.5 mm
Supply Voltage:24 VDC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Quick Disconnect Type:M8
Number of Input Pins/Conductors:3
Color:White
QD Type/Cable Length:300 mm; M8
Connection Type:Pigtail QD, Pigtail QD
Country of Origin:US
Cord/Cable Length:0.3 m
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 250 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Device Type | Ring Light |
| Housing Material_ | Aluminum |
| Physical Dimensions | 87.3 x 87.3 x 35.5 mm |
| Supply Voltage | 24 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Quick Disconnect Type | M8 |
| Number of Input Pins/Conductors | 3 |
| Color | White |
| QD Type/Cable Length | 300 mm; M8 |
| Connection Type | Pigtail QD, Pigtail QD |
| Country of Origin | US |
| Cord/Cable Length | 0.3 m |
