Wika LH-10 SUBMERSIBLE TRANDUCER 0-25 PSI WITH 20m CABLE 4-20MA OUTPUT 0.25% ACCURACY
Manufacturer: Wika Instrument Lp
Mfg Product Code: 9736276
Weight: 20.0 lb(s)

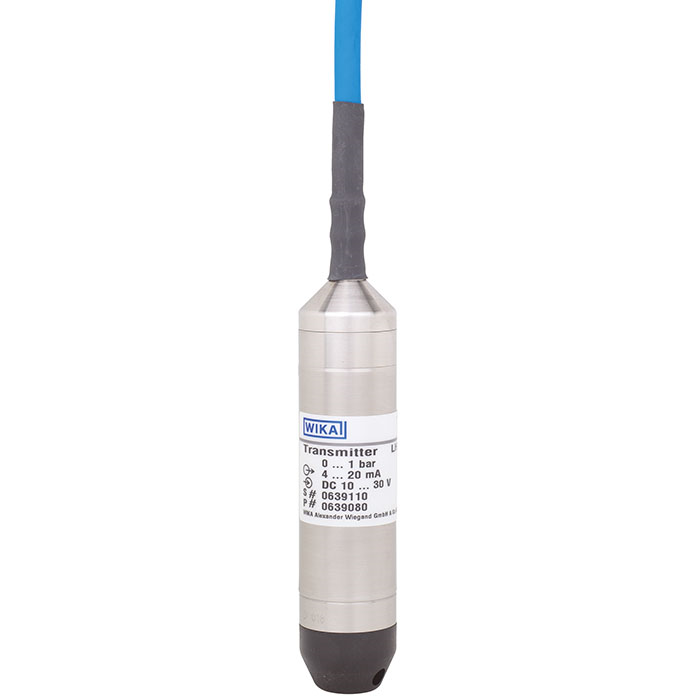

Level Probe Model LH-10
High performance version
Specifications according to data sheet: PE 81.09
Accuracy: 0.25% of Span (with Pressure Ranges < 250 mbar: 0.5% of Span)
Permissible medium temperature: -10...+50°C (+14...+122°F) with Teflon cable -10...+85°C (+14...+185°F)
Ingress Protection: IP 68
Special Protection: Longitudinal water resistance
Output signal: 4 ... 20 mA, 2-wire
Pressure Range: 0/25 psi
Process Connection: G 1/2 B
Cable Length: 20 m
Power supply: 10...30 V DC
pin assignment el. connection: UB=BN, 0V=GN
Wika LH-10 SUBMERSIBLE TRANDUCER 0-25 PSI WITH 20m CABLE 4-20MA OUTPUT 0.25% ACCURACY
Level Probe Model LH-10
High performance version
Specifications according to data sheet: PE 81.09
Accuracy: 0.25% of Span (with Pressure Ranges < 250 mbar: 0.5% of Span)
Permissible medium temperature: -10...+50°C (+14...+122°F) with Teflon cable -10...+85°C (+14...+185°F)
Ingress Protection: IP 68
Special Protection: Longitudinal water resistance
Output signal: 4 ... 20 mA, 2-wire
Pressure Range: 0/25 psi
Process Connection: G 1/2 B
Cable Length: 20 m
Power supply: 10...30 V DC
pin assignment el. connection: UB=BN, 0V=GN
Measurement Maximum:30.0
Measurement Minimum:0
Output Communication Protocol:4-20 mA, 2-wire
Input Voltage:10-30 VDC
Ingress Protection:IP68
Specifications
| Measurement Maximum | 30.0 |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
