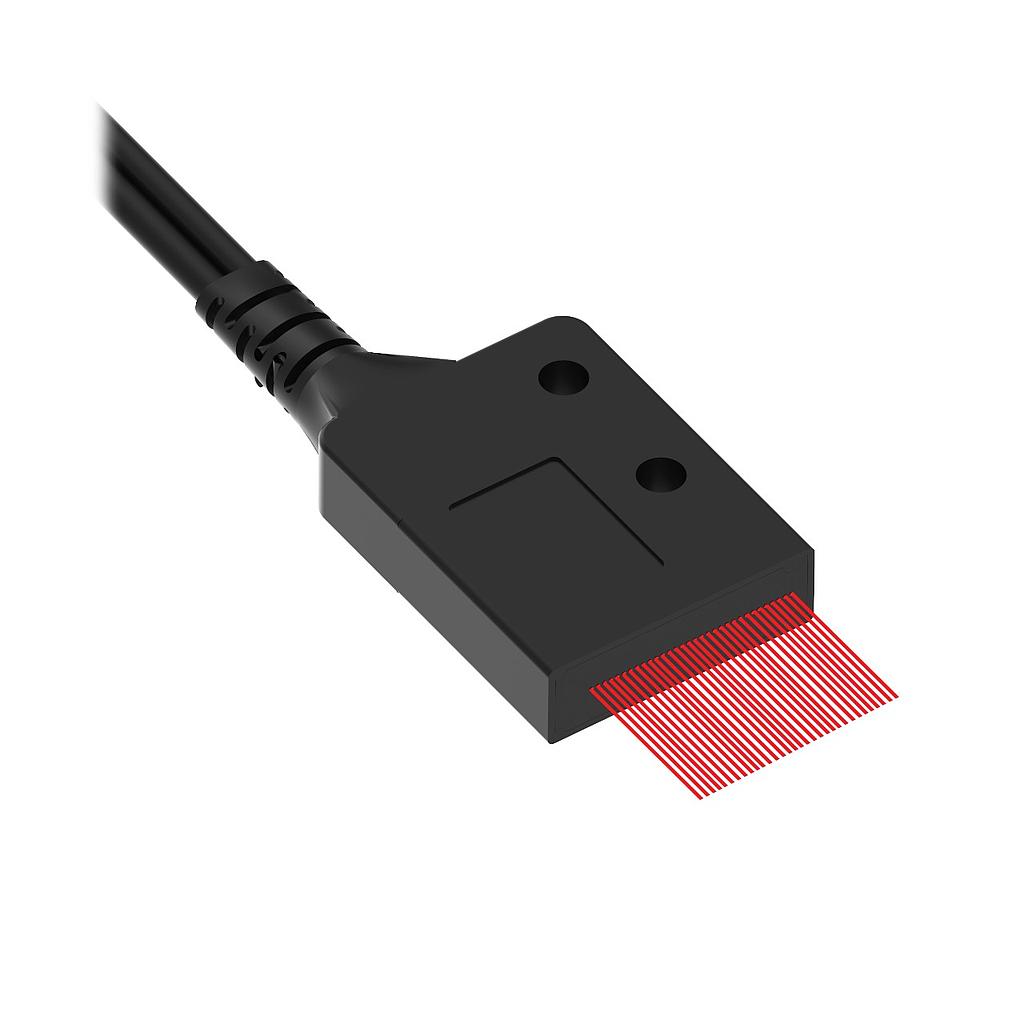

Plastic Fiber, Diffuse Reflective (PBR1X3230U-VL)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 97169
Weight: 0.18 lb(s)
Plastic Fiber, Diffuse Reflective
Features:
- Plastic Fiber, Diffuse Reflective
- Core Dia.: 32 x 0.25 mm
- Fiber Length 10 m
- Rectangle W/Flex Relief
- Free cut
- Vantage Line
Plastic Fiber, Diffuse Reflective (PBR1X3230U-VL)
Plastic Fiber, Diffuse Reflective
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Rectangular
Sensing Mode (Detailed):Array
Sensing Mode (General):Diffuse
Array Length:14.5 mm
Feature: Chemical Resistant:No
Sensing End Segment 1:Array
Tariff Fiber Meters:320 fbm
Measured Max Distance:71 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:Yes
Fiber Sensing End Size:19.0 x 25.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Array
Termination:Free Cut
Sensing End Material (Specific):Polyethylene
Feature: Integrated Lens:Yes
Core Diameter:32 x 0.3 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:19.0 x 25.0 mm
Fiber Length:10 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Array
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 500mm to <= 1000mm
Min Hinged Door Size:25 mm
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:71 mm
Max Distance: DF-G3:555 mm
Max Distance: DF-G2:116 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Sensing Mode (Detailed) | Array |
| Sensing Mode (General) | Diffuse |
| Array Length | 14.5 mm |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Array |
| Tariff Fiber Meters | 320 fbm |
| Measured Max Distance | 71 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | Yes |
| Fiber Sensing End Size | 19.0 x 25.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Array |
| Termination | Free Cut |
| Sensing End Material (Specific) | Polyethylene |
| Feature: Integrated Lens | Yes |
| Core Diameter | 32 x 0.3 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 19.0 x 25.0 mm |
| Fiber Length | 10 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Array |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 500mm to <= 1000mm |
| Min Hinged Door Size | 25 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 71 mm |
| Max Distance: DF-G3 | 555 mm |
| Max Distance: DF-G2 | 116 mm |
| Minimum Bend Radius | 25 mm |
