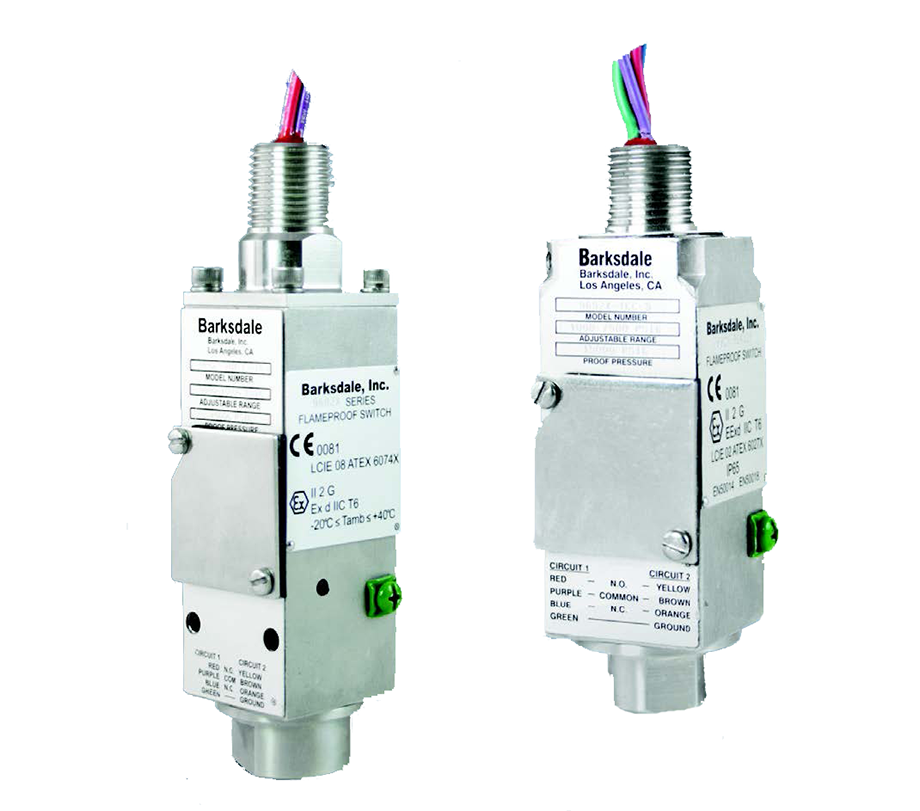

Barksdale 9681X Compact Pressure Switch, SPDT Switch, 10 Amps @ 125/250 VAC; 5 Amps @ 30 VDC; 1 Amp @ 125 VDC, 5 to 150 psi, Viton Diaph/O-Rings, 1/4" NPTF, Aluminum Housing, 36 Mounting Holes & Cond Wrench Flats

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: 9681X-1CC-2-ALKW36

Weight: 1.0 lb(s)

Pressure Switch, 2 - 500 psi
SPDT Switch, 10 Amps @ 125/250 VAC, 5 Amps @ 30 VDC, 1 Amp @ 125 VDC
5 - 150psi Range
(Standard) Viton diaphragm/O-rings
(Standard) 1/4" NPT Female
Aluminum
Mounting holes and conduit wrench flats
Special wire length (18" standard

Barksdale's explosion-proof compact pressure switches are engineered for demanding applications in hazardous locations, particularly within the hydraulics industry. Designed with safety and performance in mind, these switches offer exceptional reliability for mission-critical control systems.

Key Features:

• Wide Pressure Ranges: Available in various configurations, including series 9671X/9681X with up to 500 psi vacuum/pressure and 1000 psi proof pressure, and series 9692X with up to 10,000 psi pressure and 15,000 psi proof pressure.
• Robust Construction: Built to withstand harsh environments, featuring NEMA 4X, 7, and 9 enclosures.
• Enhanced Safety:
  • Safe to adjust during operation.
  • Tamper-proof cover for added security.
  • Dual seal for enhanced protection in Division 1 and 2 applications.
  • NACE compliant for corrosive environments.
• Flexible Configurations: Available with SPDT or DPDT limit switches to suit diverse application needs.
• Global Approvals: UL, CSA, IECEx, and ATEX certified for worldwide use.

Applications:

• BOP (Blowout Preventer) closing units
• Safety panels
• Pipelines
• Chemical and petrochemical plants
• Pulp and paper mills
• Pump and gas compressors
• Turbines
