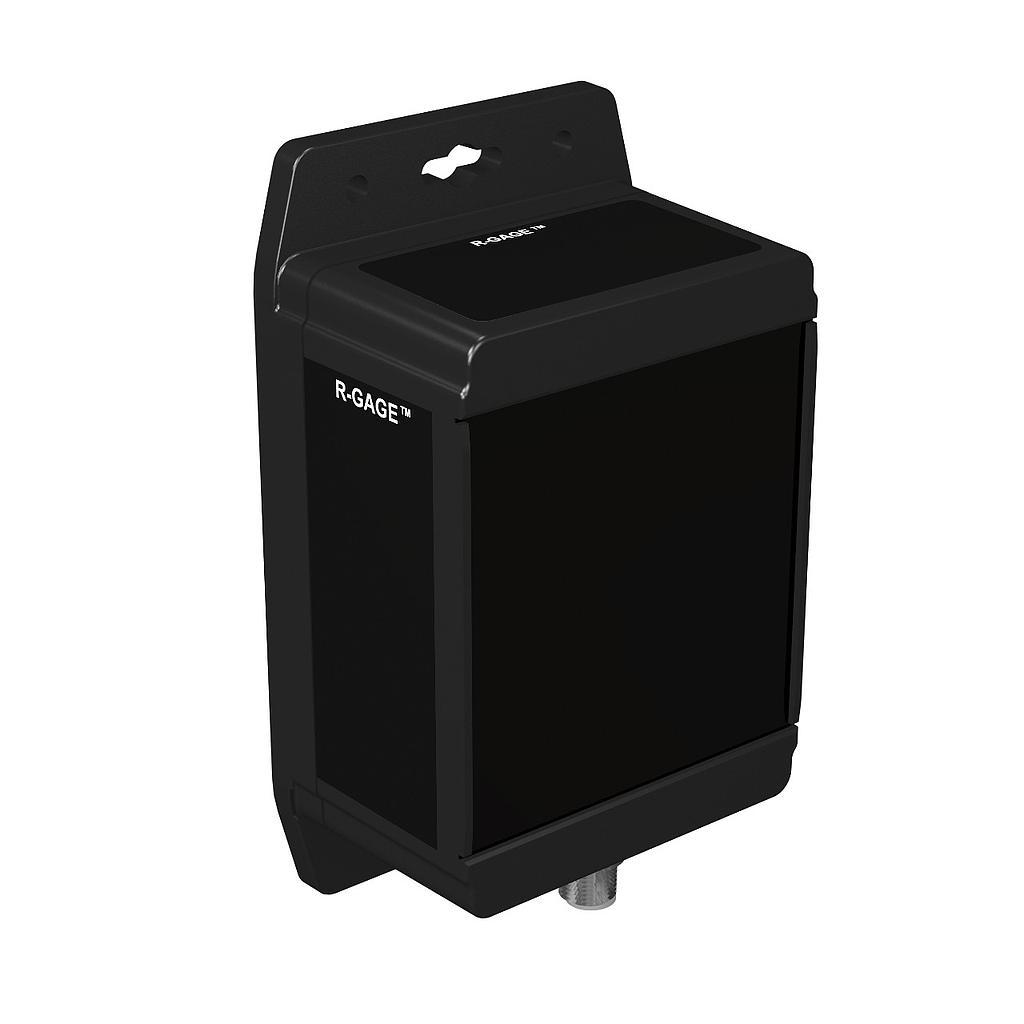

R-GAGE Series Radar Sensor (Q120RA-US-AF2WQ)
R-GAGE Series Radar Sensor
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:65 °C
Power/Current Consumption (exclusive of load):< 100 mA
Power Supply:12-30 VDC
Delay at Power-Up:2000 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Rectangular
Max Sensing Distance:26000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS/Polycarbonate
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Dip Switch
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Min Response Time:15 ms
Max Discrete (Switched) Output (mA):150
Min Sensing Distance:3500 mm
Discrete (Switched) Outputs:2 NPN/PNP Configurable
Max Measurement Range:20-50 m
Output Protection:Protected against short circuit
SSI:No
Profibus:No
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Operating Frequency:24 GHz
Connection Type:Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Radar Beam Pattern (H x V °):24 x 50
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Power/Current Consumption (exclusive of load) | < 100 mA |
| Power Supply | 12-30 VDC |
| Delay at Power-Up | 2000 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Rectangular |
| Max Sensing Distance | 26000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS/Polycarbonate |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Dip Switch |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete |
| Min Response Time | 15 ms |
| Max Discrete (Switched) Output (mA) | 150 |
| Min Sensing Distance | 3500 mm |
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Max Measurement Range | 20-50 m |
| Output Protection | Protected against short circuit |
| SSI | No |
| Profibus | No |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Operating Frequency | 24 GHz |
| Connection Type | Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Radar Beam Pattern (H x V °) | 24 x 50 |
| Indicator Type | LED |
