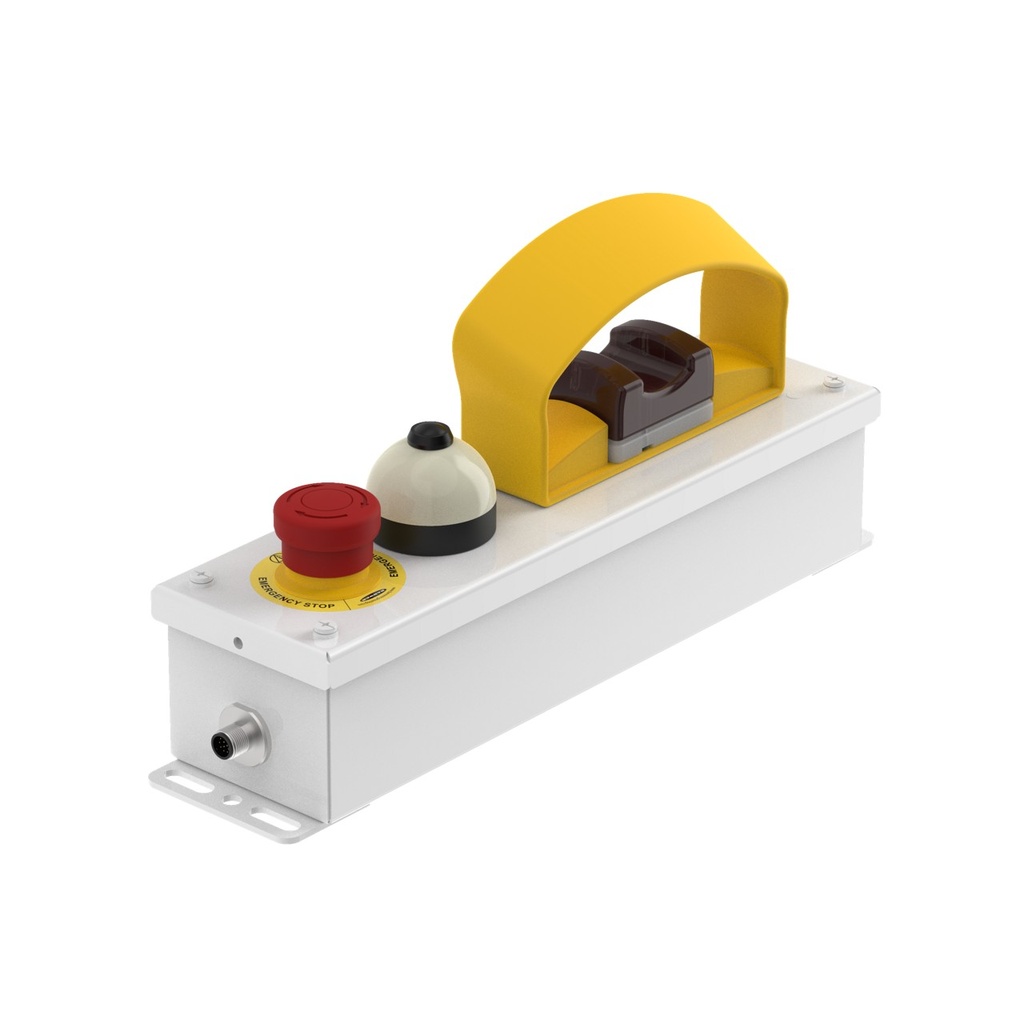

Illuminated E-Stop Button (Push On) 2 Nc/1 No (SSA-EB1PL2-12EMAQ12VTBYLK50E)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 96229
Weight: 5.64 lb(s)
Features:
- Illuminated E-Stop Button (push on) 2 NC/1 NO; E-Stop Legend; VTB with Large Yellow Field Cover; Yellow K50 Push Button; White Metal box with 12-pin M12
Illuminated E-Stop Button (Push On) 2 Nc/1 No (SSA-EB1PL2-12EMAQ12VTBYLK50E)
Valve: Actuation:Twist/Pull-to-Release
Brand_Name:Banner
Min Operating Temperature:-20 °C
Max Operating Temperature:50 °C
Ingress Protection:IP65
Housing Style:Flat
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:240 x 134 x 80 mm
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Contact Quantity:2 NC, 1 NO
Actuated Color:Red
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 30 VDC
Mounting Thread/Style:Flat
Feature: Illuminated:Yes
Feature: Lockable:No
Illumination Type:Button
Armed Color (Solid):Off
Connection Type:M12, M12
Country of Origin:US
Button Diameter:40 mm
Feature: Button Shroud:No
Feature: In-Series Diagnostics:No
Feature: Actuation:Twist/Pull-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist/Pull-to-Release |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Ingress Protection | IP65 |
| Housing Style | Flat |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 240 x 134 x 80 mm |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Contact Quantity | 2 NC, 1 NO |
| Actuated Color | Red |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 30 VDC |
| Mounting Thread/Style | Flat |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Illumination Type | Button |
| Armed Color (Solid) | Off |
| Connection Type | M12, M12 |
| Country of Origin | US |
| Button Diameter | 40 mm |
| Feature: Button Shroud | No |
| Feature: In-Series Diagnostics | No |
| Feature: Actuation | Twist/Pull-to-Release |
