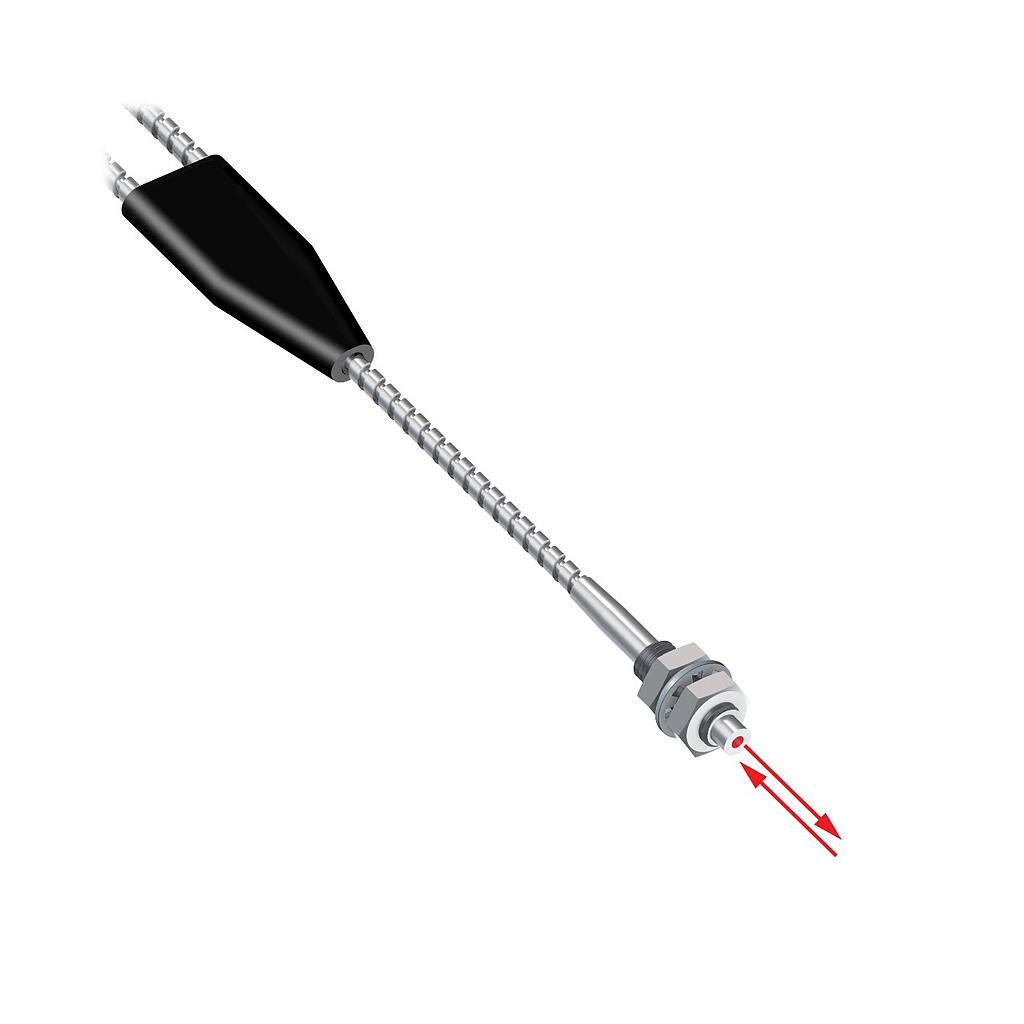

Glass Fiber (BT63ST5-VL)
Glass Fiber
Measurement Maximum:0
Max Operating Temperature:249 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:730 fbm
Measured Max Distance:186 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:M6
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1.5 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M6
Fiber Length:1 m
Fiber Optic Type:Glass
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 1m to <= 3m
Min Hinged Door Size:25 mm
Country of Origin:US
Max Distance: DF-G1:186 mm
Max Distance: DF-G3:1446 mm
Max Distance: DF-G2:301 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 249 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 730 fbm |
| Measured Max Distance | 186 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | M6 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.5 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Length | 1 m |
| Fiber Optic Type | Glass |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 1m to <= 3m |
| Min Hinged Door Size | 25 mm |
| Country of Origin | US |
| Max Distance: DF-G1 | 186 mm |
| Max Distance: DF-G3 | 1446 mm |
| Max Distance: DF-G2 | 301 mm |
| Minimum Bend Radius | 25 mm |
