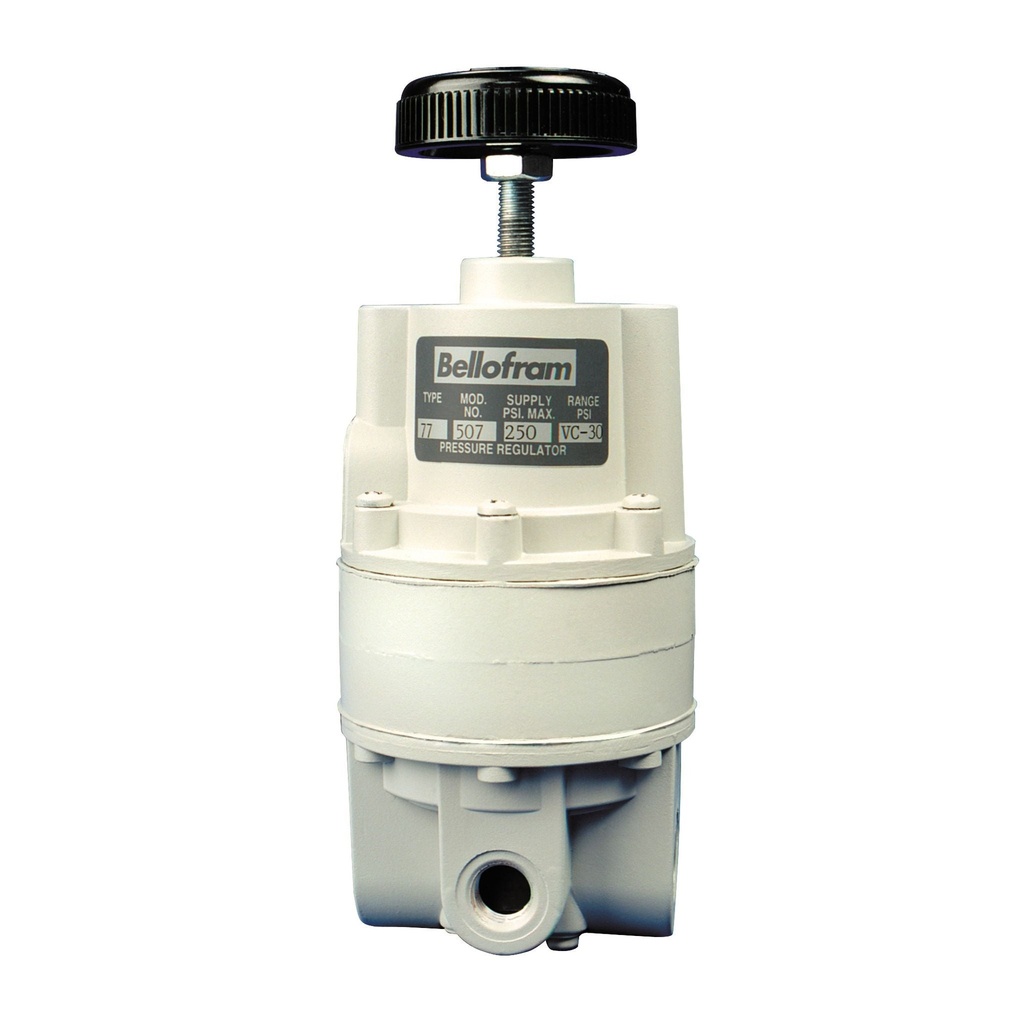

Bellofram T77 Vacuum Regulator, 3/8" NPT, Vac to 2 PSI

Manufacturer: Marsh Bellofram Corporation

Mfg Product Code: 960-505-000

Weight: 5.0 lb(s)

Bellofram’s Type 77 Vacuum Regulator incorporates a fixed negative 15 psig bias spring to maintain vacuum outputs up to 29" Hg. An adjustable opposing range spring increases controlled pressure outputs up to 150 psig. Output pressure droop under varying downstream flow conditions is minimized by use of an aspirator tube which adjusts the air supply valve opening in accordance with flow velocity. A balanced supply valve, utilizing a reinforced rolling diaphragm, keeps regulator output virtually immune to changes in supply pressure. Stack-up construction makes the Type 77 easily serviceable, without removing it from the air line.

Features:

• Single-unit control of pressures from 29″ Hg vacuum to 150 psi
• Flow capacity up to 40 SCFM
• Dampening action of aspirator tube maintains stable output pressure
• Output virtually unaffected by changes in supply pressure
• Can be disassembled and serviced without removing from line

Applications:

• Sample Collecting Systems
• Air Quality Monitoring
• Parts Coating Operations
• May be Installed Upstream or Downstream From the Vacuum Pump
