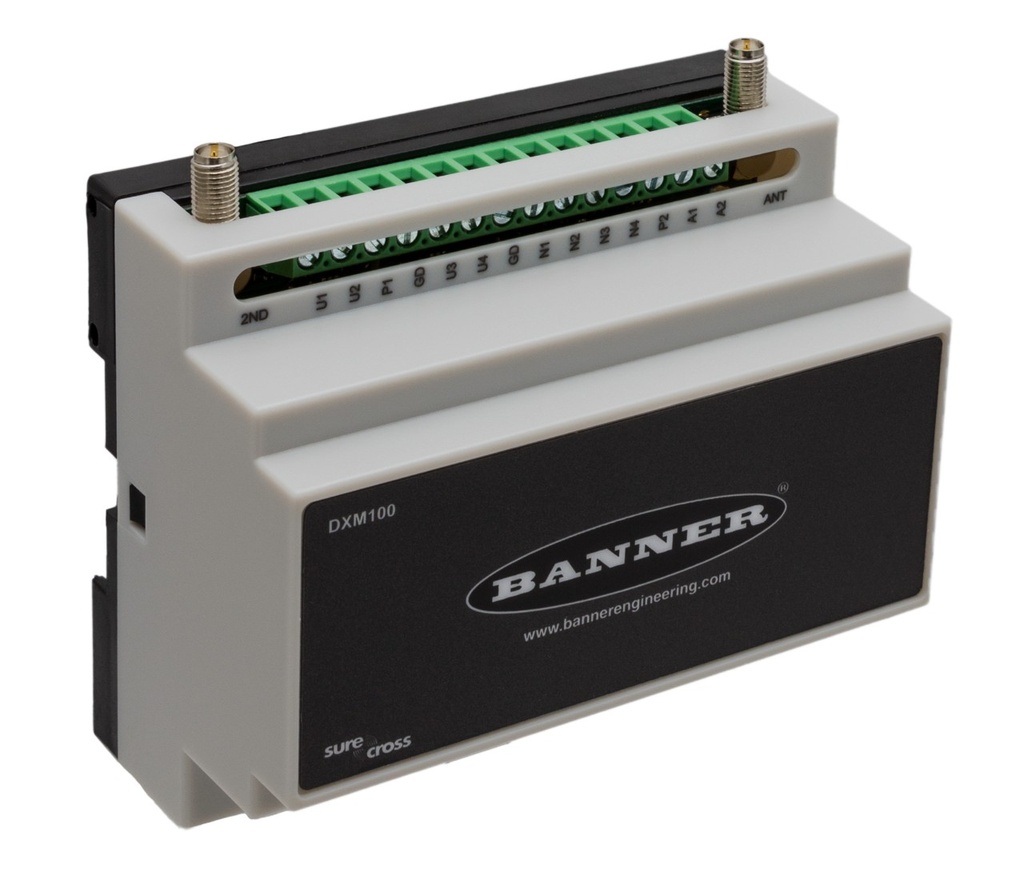

DXM100 Modbus Slave Device (DXM100-S1R2)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 95656
Weight: 0.85 lb(s)
DXM100 Modbus Slave Device
Features:
- DXM100 Modbus Slave Device
- Multihop Radio 900 MHz 1W
- Inputs: 4 Universal
- Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
- RS485

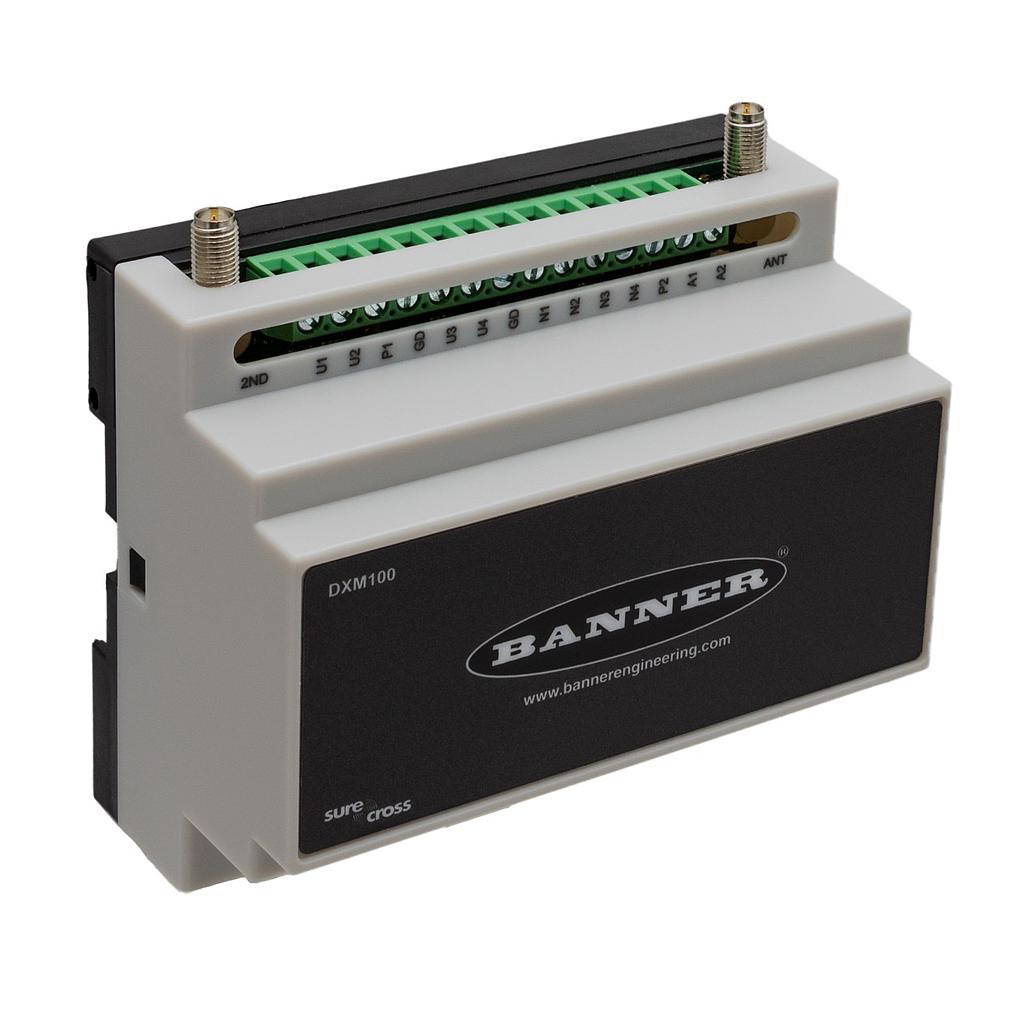

DXM100 Modbus Slave Device (DXM100-S1R2)
DXM100 Modbus Slave Device
Power:DC
Feature: Discrete Outputs:Yes
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Power Supply:12-30 VDC
Measurement Minimum:0
Ingress Protection:IP20, IP20
Housing Style:External Terminals
Device Type:Modbus Slave Device
Feature: RS-232:No
Feature: RS-485:Yes
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Feature: Hazardous Area:No
Feature: Modbus RTU:Yes
Physical Dimensions:100 mm
Feature: Wireless:Yes
Input/Output:Analog & Discrete
Relative Humidity:95%
Output Details:4 NMOS Discrete, 2 Selectable Analog
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Input Details:(4) Universal Inputs
Feature: Discrete Inputs:Yes
Wireless Radio Frequency:900 MHz
Feature: Tree Topology:Yes
Feature: Star Topology:Yes
Feature: Analog Input(s):Yes
Ethernet Connector Type:N/A
Feature: Analog Output(s):Yes
Country of Origin:US
NEMA / UL:NEMA 1
Specifications
| Power | DC |
| Feature: Discrete Outputs | Yes |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Power Supply | 12-30 VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP20, IP20 |
| Housing Style | External Terminals |
| Device Type | Modbus Slave Device |
| Feature: RS-232 | No |
| Feature: RS-485 | Yes |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Feature: Hazardous Area | No |
| Feature: Modbus RTU | Yes |
| Physical Dimensions | 100 mm |
| Feature: Wireless | Yes |
| Input/Output | Analog & Discrete |
| Relative Humidity | 95% |
| Output Details | 4 NMOS Discrete, 2 Selectable Analog |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Input Details | (4) Universal Inputs |
| Feature: Discrete Inputs | Yes |
| Wireless Radio Frequency | 900 MHz |
| Feature: Tree Topology | Yes |
| Feature: Star Topology | Yes |
| Feature: Analog Input(s) | Yes |
| Ethernet Connector Type | N/A |
| Feature: Analog Output(s) | Yes |
| Country of Origin | US |
| NEMA / UL | NEMA 1 |
