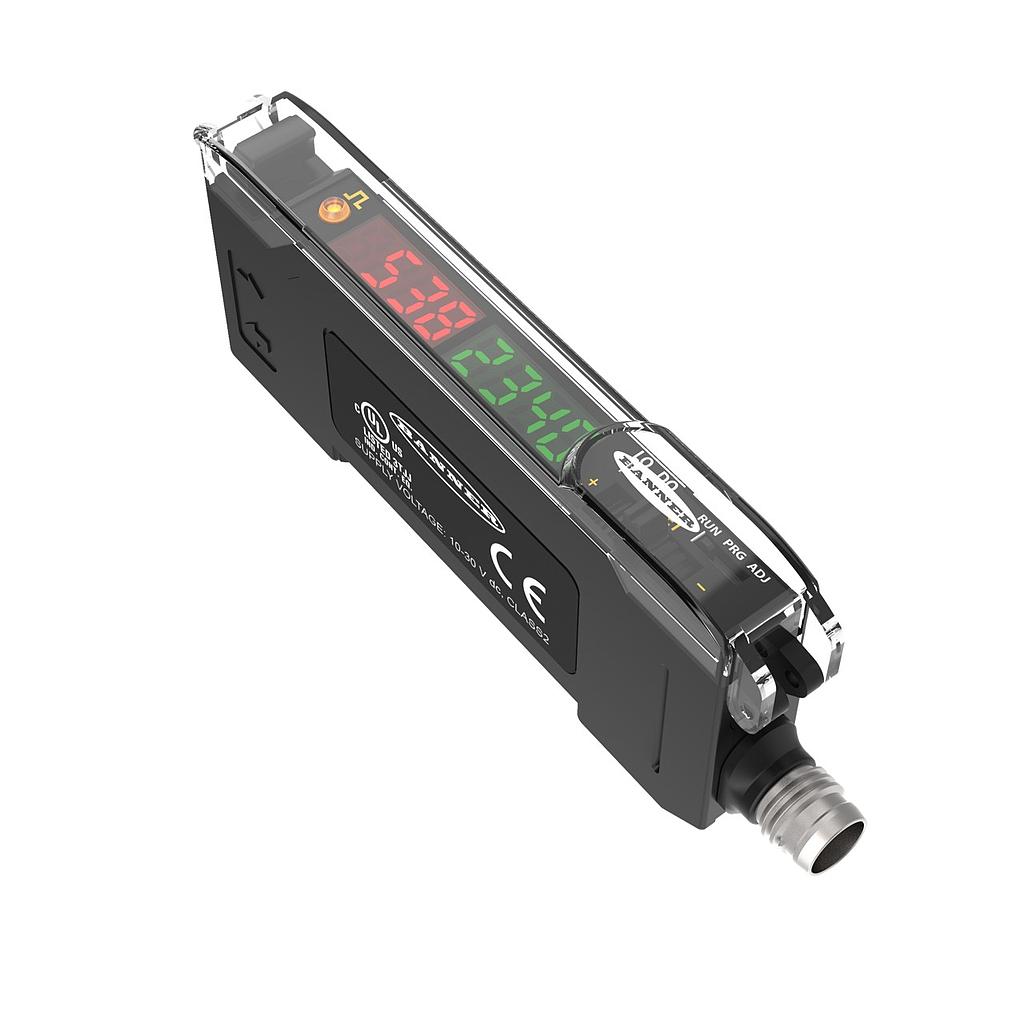

DF-G2 Red Beam High Speed Dual Display Fiber Amplifier (DF-G2-NR-Q7-95330)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 95330
Weight: 0.15 lb(s)
Features:
- DF-G2 Red Beam High Speed Dual Display Fiber Amplifier
- Range: Depends on fiber
- Input 10-30 V dc
- Outputs: 1 NPN
- Connection: Pico M8 4-pin Integral Connector
DF-G2 Red Beam High Speed Dual Display Fiber Amplifier (DF-G2-NR-Q7-95330)
Brand_Name:Banner
Manufacturer Product Family:DFG SERIES
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Power Supply:10-30 VDC
Delay at Power-Up:500 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP50
Repeatability (µs):5 to 165
Housing Style:DIN Rail
Max Relative Humidity:90% @ 60 °C, 90% @ 60 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M8
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete
Min Response Time:.01 ms
Output Type (Specific):Single Discrete
Fiber Type:Plastic and Glass
Application: Registration Mark:Yes
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 1
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Feature: Crosstalk Avoidance:Yes
Indicator Type:Dual Digital Displays
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | DFG SERIES |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 500 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP50 |
| Repeatability (µs) | 5 to 165 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 60 °C, 90% @ 60 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M8 |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete |
| Min Response Time | .01 ms |
| Output Type (Specific) | Single Discrete |
| Fiber Type | Plastic and Glass |
| Application: Registration Mark | Yes |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 1 |
| Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Feature: Crosstalk Avoidance | Yes |
| Indicator Type | Dual Digital Displays |
