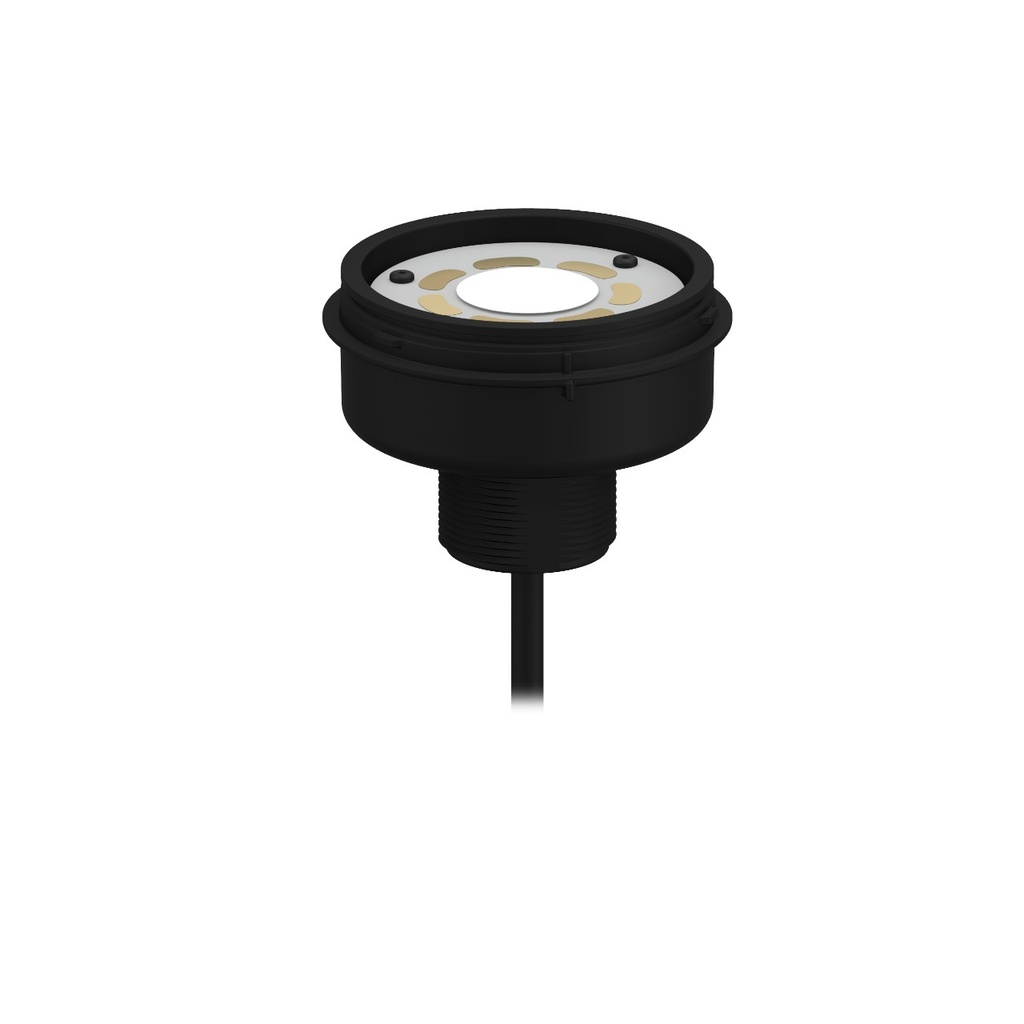

Tl70 Base Module (B-TL70-Q1PMA)
Brand_Name:Banner
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:420 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C, 50 °C
Power Source:VDC
Ingress Protection:IP65
Housing Style:Segment - Base
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:70.0 x 47.5 mm
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Feature: Audible:No
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Quick Disconnect Type:M12
Product Size (mm):70 mm
Number of Input Pins/Conductors:5
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):180 ms
Feature: Chemical Resistant:No
Storage Temp:-40 to 70 °C
Feature: Non-Illuminated:Yes
Connection Type:Pigtail PUR QD, Pigtail PUR QD
Country of Origin:CN
Specifications
| Brand_Name | Banner |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 420 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C, 50 °C |
| Power Source | VDC |
| Ingress Protection | IP65 |
| Housing Style | Segment - Base |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 70.0 x 47.5 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Quick Disconnect Type | M12 |
| Product Size (mm) | 70 mm |
| Number of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 180 ms |
| Feature: Chemical Resistant | No |
| Storage Temp | -40 to 70 °C |
| Feature: Non-Illuminated | Yes |
| Connection Type | Pigtail PUR QD, Pigtail PUR QD |
| Country of Origin | CN |
