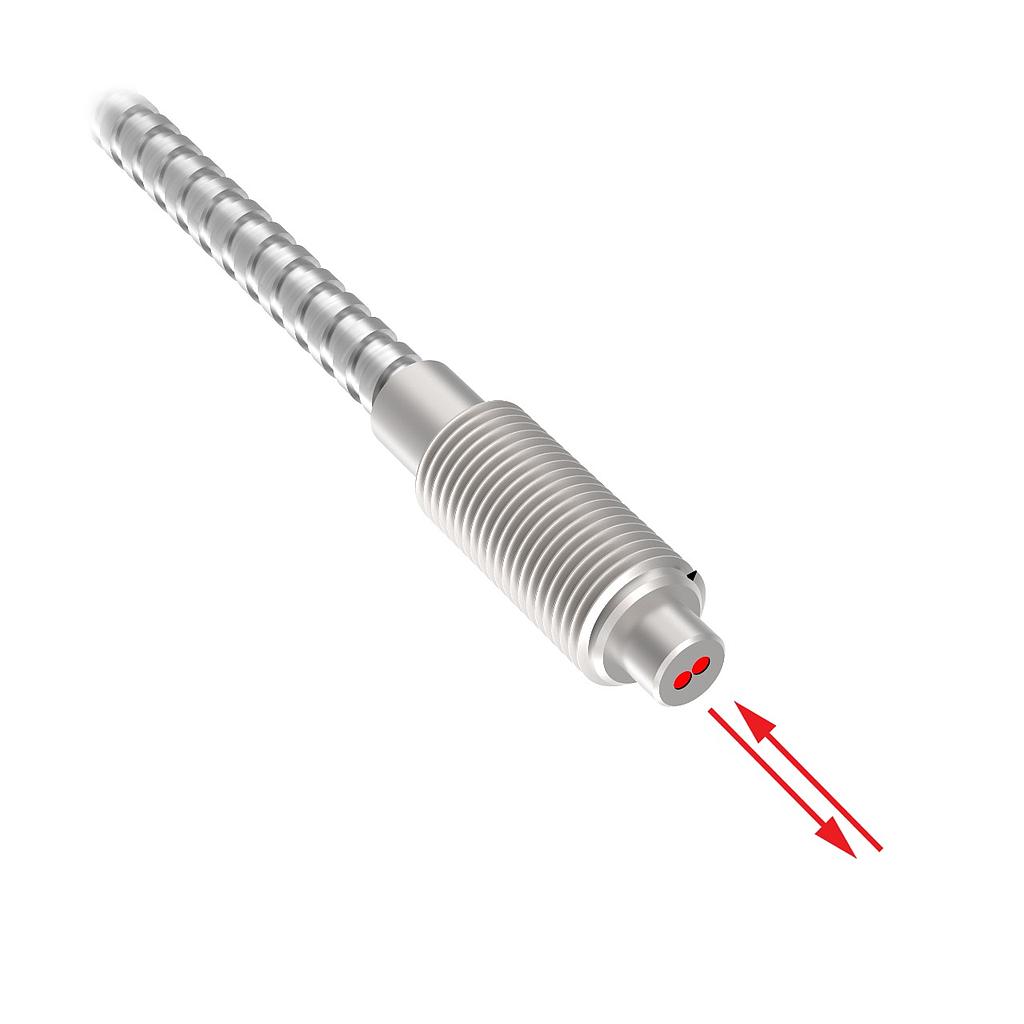

Plastic Fiber, Diffuse Reflective (PBT46TSL5-VL)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93949
Weight: 0.1 lb(s)
Plastic Fiber, Diffuse Reflective
Features:
- Plastic Fiber, Diffuse Reflective
- Core Dia.: 1 mm
- Fiber Length 2 m
- Thread M6
- Stainless Monocoil
- 25 mm Bend Radius
- Vantage Line
Plastic Fiber, Diffuse Reflective (PBT46TSL5-VL)
Plastic Fiber, Diffuse Reflective
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:4 fbm
Measured Max Distance:192 mm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:4.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Ferrule
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M6
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Ferrule
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 1m to <= 3m
Min Hinged Door Size:25 mm
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:192 mm
Max Distance: DF-G3:1495 mm
Max Distance: DF-G2:312 mm
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 4 fbm |
| Measured Max Distance | 192 mm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 4.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Ferrule |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Ferrule |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 1m to <= 3m |
| Min Hinged Door Size | 25 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 192 mm |
| Max Distance: DF-G3 | 1495 mm |
| Max Distance: DF-G2 | 312 mm |
| Minimum Bend Radius | 25 mm |
