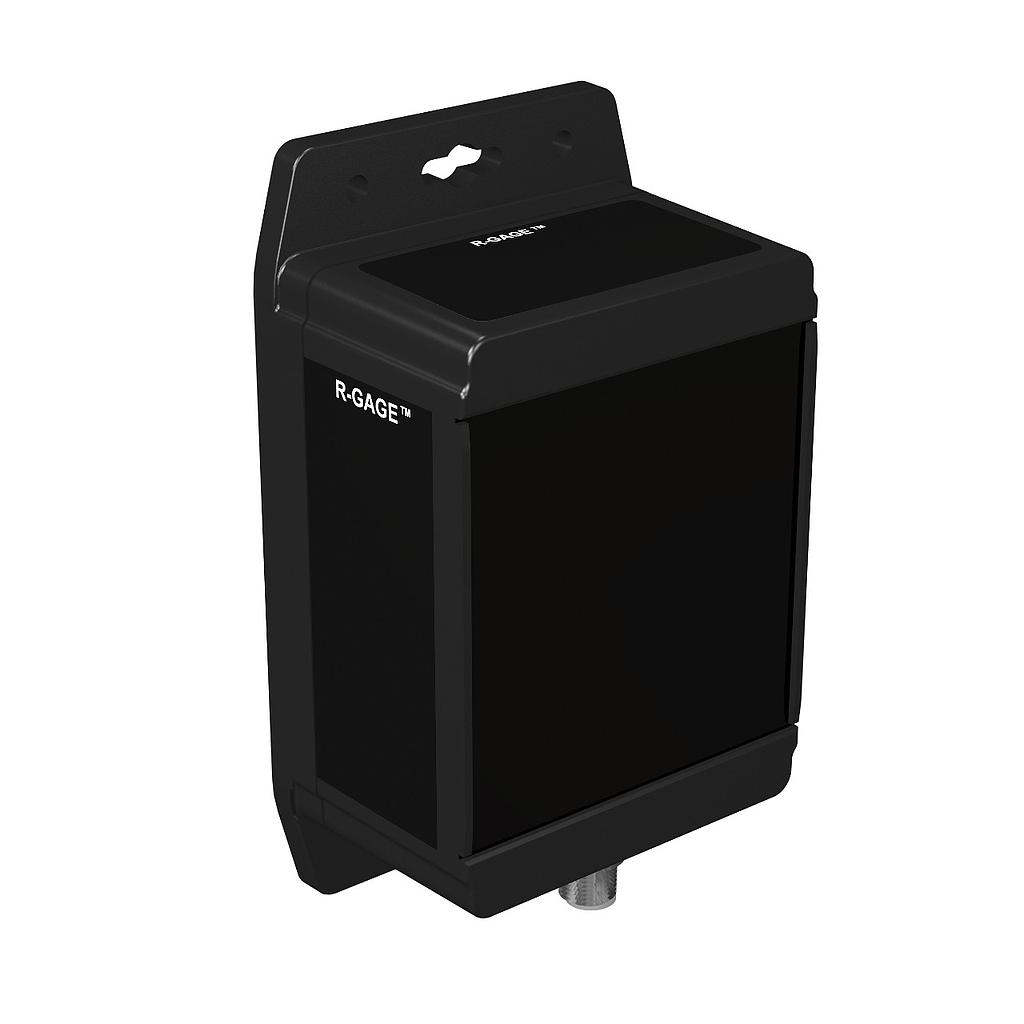

R-GAGE Series Radar Sensor (Q120RA-KR-AFQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93817
Weight: 1.6 lb(s)
R-GAGE Series Radar Sensor
Features:
- R-GAGE Series Radar Sensor
- Bipolar Outputs
- Range 2.0 to 12 meters Single Zone
- Response Speed 40 ms
- Eurofast 5-pin Quick-Disconnect
R-GAGE Series Radar Sensor (Q120RA-KR-AFQ)
R-GAGE Series Radar Sensor
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:65 °C
Power Supply:12-24 VDC
Delay at Power-Up:2000 ms
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Radar
Housing Style:Rectangular
Max Sensing Distance:12000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:ABS/Polycarbonate
RS-422:No
Feature: IO Link:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Number of Pins:5
Adjustments:Dip Switch
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Min Response Time:15 ms
Max Discrete (Switched) Output (mA):150
Min Sensing Distance:2000 mm
Discrete (Switched) Outputs:Bipolar (NPN & PNP)
Output Protection:Protected against short circuit
Profibus:No
Operating Frequency:24 GHz
Connection Type:Integral QD
Country of Origin:US
Feature: Common Ethernet Protocol:No
Radar Beam Pattern (H x V °):24 x 50
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 65 °C |
| Power Supply | 12-24 VDC |
| Delay at Power-Up | 2000 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Radar |
| Housing Style | Rectangular |
| Max Sensing Distance | 12000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | ABS/Polycarbonate |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Number of Pins | 5 |
| Adjustments | Dip Switch |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete |
| Min Response Time | 15 ms |
| Max Discrete (Switched) Output (mA) | 150 |
| Min Sensing Distance | 2000 mm |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Output Protection | Protected against short circuit |
| Profibus | No |
| Operating Frequency | 24 GHz |
| Connection Type | Integral QD |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Radar Beam Pattern (H x V °) | 24 x 50 |
| Indicator Type | LED |
