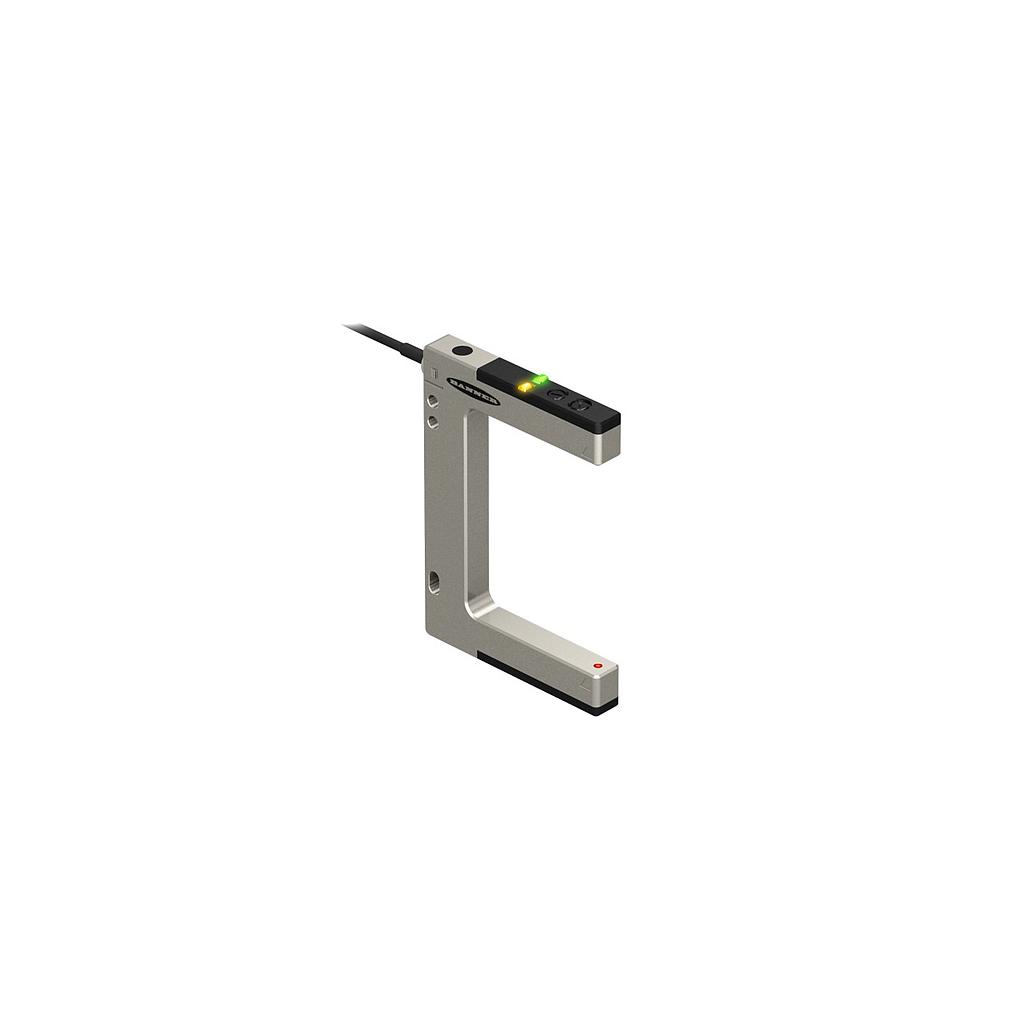

SLM Series: Nickel Plated Slot Sensor (SLM80B6N-93753)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93753
Weight: 0.6 lb(s)
SLM Series: Nickel Plated Slot Sensor
Features:
- SLM Series: Nickel Plated Slot Sensor
- Slot Width: 80 mm
- Input: 10-30 V dc
- Output: PNP
- Molex 4-pin 0.31m (12 in) Pigtail
SLM Series: Nickel Plated Slot Sensor (SLM80B6N-93753)
SLM Series: Nickel Plated Slot Sensor
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:60 °C
Lens Material:Acrylic
Power Supply:10-30 VDC
Delay at Power-Up:100 ms
Measurement Minimum:0
Ingress Protection:IP67
Repeatability (µs):95
Housing Style:Slot
Sensing Mode (Detailed):Emitter/Receiver Pair
Max Relative Humidity:95% @ 55 °C
Feature: Quick Disconnect:Yes
Quick Disconnect Type:Molex
Number of Pins:4
Output Response Time:0.5 ms
Operation:Light/Dark Operate
Adjustments:Potentiometer
Feature: Remote Teach:No
Min Object Detection:0.75 mm
Connection:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 6
Cord/Cable Length:300 mm
Indicator Type:LED
Max Sensing Range:80 mm
Slot Depth/Array Length (mm):60.8
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Lens Material | Acrylic |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 100 ms |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Repeatability (µs) | 95 |
| Housing Style | Slot |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Max Relative Humidity | 95% @ 55 °C |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | Molex |
| Number of Pins | 4 |
| Output Response Time | 0.5 ms |
| Operation | Light/Dark Operate |
| Adjustments | Potentiometer |
| Feature: Remote Teach | No |
| Min Object Detection | 0.75 mm |
| Connection | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Cord/Cable Length | 300 mm |
| Indicator Type | LED |
| Max Sensing Range | 80 mm |
| Slot Depth/Array Length (mm) | 60.8 |
