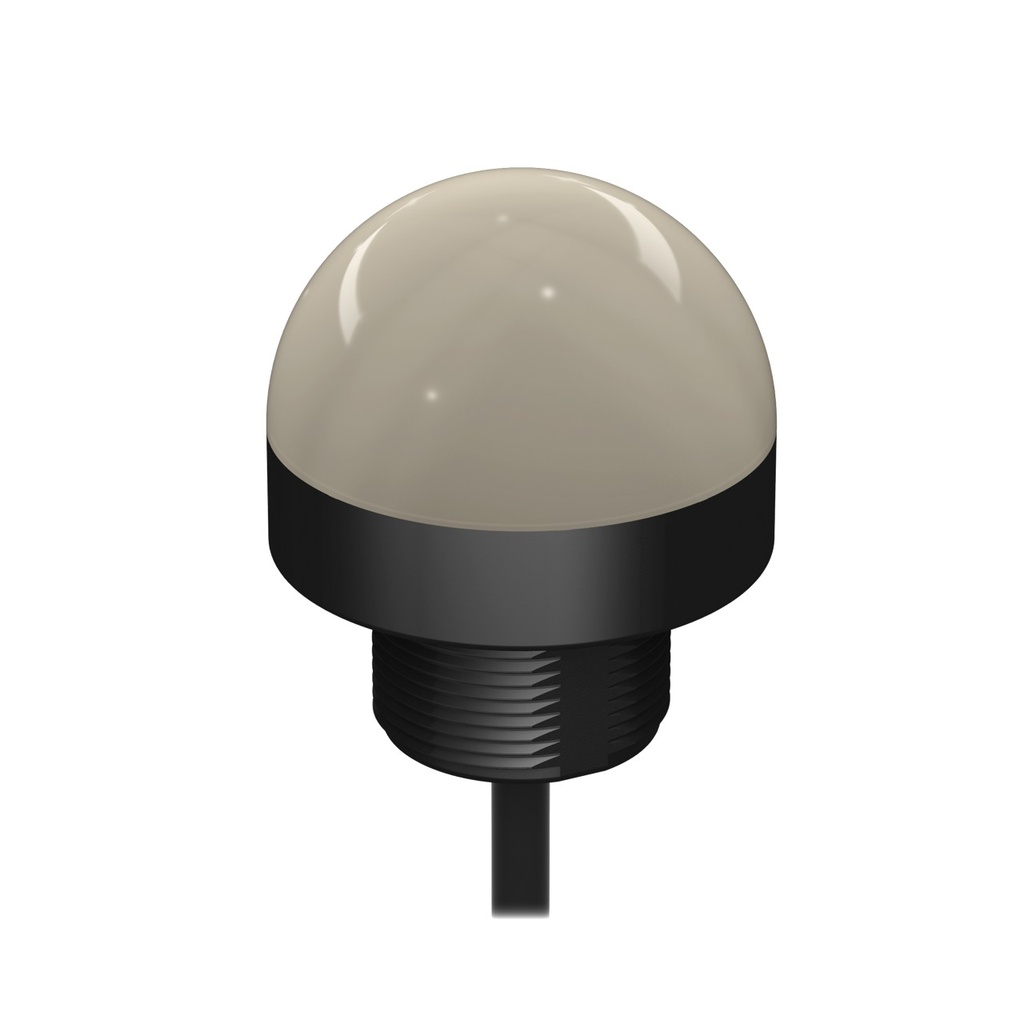

K50 Modbus Series: 3-Color Indicator (K50LGRYS1QP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93514
Weight: 0.35 lb(s)
K50 Modbus Series: 3-Color Indicator
Features:
- K50 Modbus Series: 3-Color Indicator
- Voltage: 12-30 V dc
- Housing: Polycarbonate
- IP67
- Colors: Green Red Yellow
- Euro 4-pin 150 mm (6 in) PVC Pigtail
K50 Modbus Series: 3-Color Indicator (K50LGRYS1QP)
K50 Modbus Series: 3-Color Indicator
Brand_Name:Banner
Manufacturer Product Family:K50
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Measurement Maximum:0
Max Current Color:70 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Measurement Minimum:0
Ingress Protection:IP67/69
Housing Style:Base Mount - Dome Window
Max Relative Humidity:90% @ 50 °C (NC)
Housing Material_:Polycarbonate
Feature: Washdown Rated:Yes
Feature: IO Link:No
Feature: Modbus RTU:Yes
Physical Dimensions:50.0 x 58.0 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:Yellow
Supply Voltage:12-30 VDC
Color Option 2:Red
Feature: Quick Disconnect:Yes
Animation Option 3:Programmable
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Animation Option 2:Programmable
Housing Color:Black
Color Input Control:Communication Protocol
Multi-Color Device:Single Color On
Animation Option 1:Programmable
Quick Disconnect Type:M12
Number of Colors / Segments:3
Product Size (mm):50 mm
Number of Input Pins/Conductors:4
Input Type:Communication Protocol
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Feature: Chemical Resistant:No
Wire Selectable Function:Multi-Function
Connection Type:Pigtail QD, Pigtail QD, Pigtail QD
Country of Origin:US
Cord/Cable Length:0.15 m
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | K50 |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Measurement Maximum | 0 |
| Max Current Color | 70 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/69 |
| Housing Style | Base Mount - Dome Window |
| Max Relative Humidity | 90% @ 50 °C (NC) |
| Housing Material_ | Polycarbonate |
| Feature: Washdown Rated | Yes |
| Feature: IO Link | No |
| Feature: Modbus RTU | Yes |
| Physical Dimensions | 50.0 x 58.0 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | Yellow |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Red |
| Feature: Quick Disconnect | Yes |
| Animation Option 3 | Programmable |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Animation Option 2 | Programmable |
| Housing Color | Black |
| Color Input Control | Communication Protocol |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Programmable |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Product Size (mm) | 50 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | Communication Protocol |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Feature: Chemical Resistant | No |
| Wire Selectable Function | Multi-Function |
| Connection Type | Pigtail QD, Pigtail QD, Pigtail QD |
| Country of Origin | US |
| Cord/Cable Length | 0.15 m |
