SSA-EB1P-11 Kit Includes: (SSA-EB1P-11-ESPL1-30/60)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93495
Weight: 0.1 lb(s)
On Hand: 0
Features:
- SSA-EB1P-11 Kit Includes:

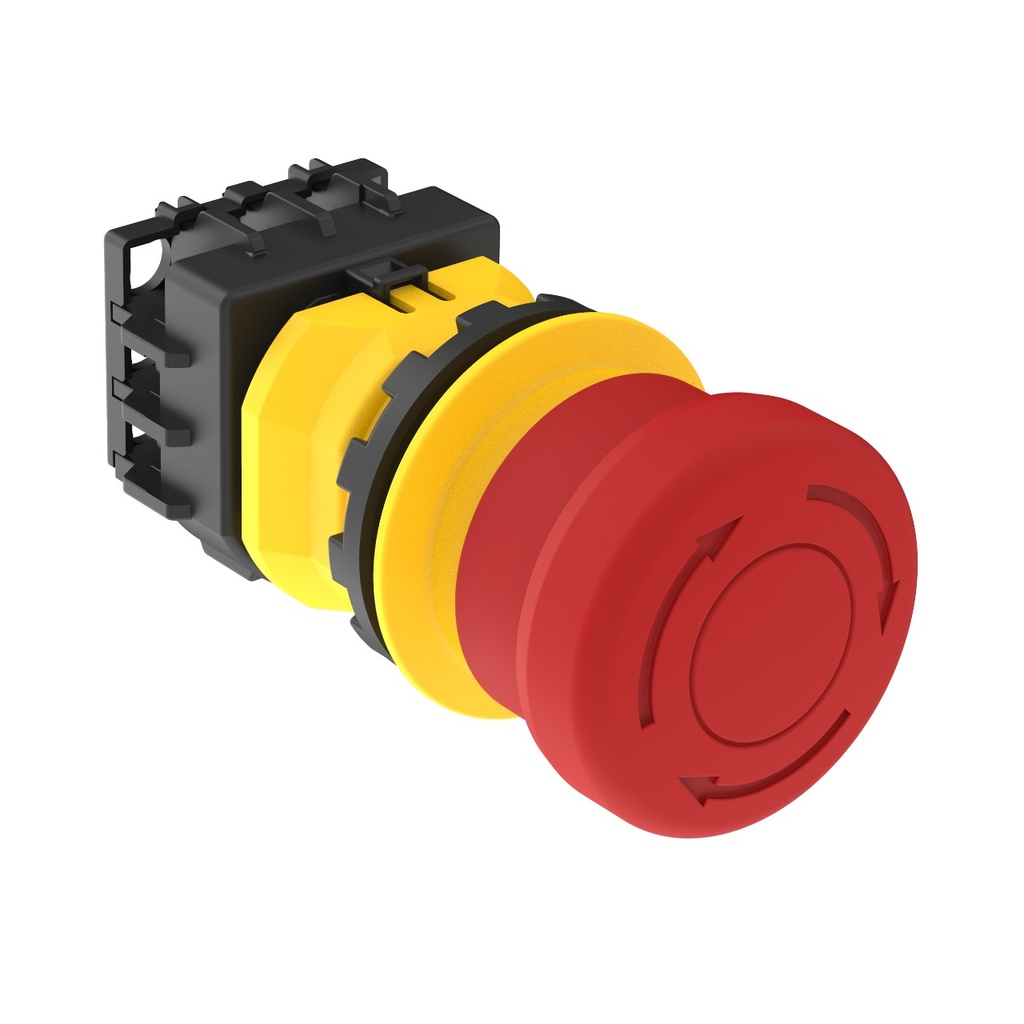

- SSA-EB1 Panel-mount Emergency Stop Push Button
- 40 mm Actuator
- Contacts: 1NC/1NO
- Screw Terminals
- 30 mm mounting hole
- And SSA-EB1 Accessory
- E-Stop Legend
- Emergency Stop
SSA-EB1P-11 Kit Includes: (SSA-EB1P-11-ESPL1-30/60)
Valve: Actuation:Twist/Pull-to-Release
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP20
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:81 x 37 x 40 mm
Feature: Quick Disconnect:No
Contact Quantity:1 NC, 1 NO
Actuator/Button Material:Zinc Alloy Die-Cast
Mounting Thread/Style:Panel
Feature: Illuminated:No
Feature: Lockable:No
Connection Type:Wiring Chamber
Country of Origin:US
Button Diameter:40 mm
Feature: Button Shroud:No
Feature: Actuation:Twist/Pull-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist/Pull-to-Release |
| Uncategorized | |
|---|---|
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 81 x 37 x 40 mm |
| Feature: Quick Disconnect | No |
| Contact Quantity | 1 NC, 1 NO |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Mounting Thread/Style | Panel |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Connection Type | Wiring Chamber |
| Country of Origin | US |
| Button Diameter | 40 mm |
| Feature: Button Shroud | No |
| Feature: Actuation | Twist/Pull-to-Release |
