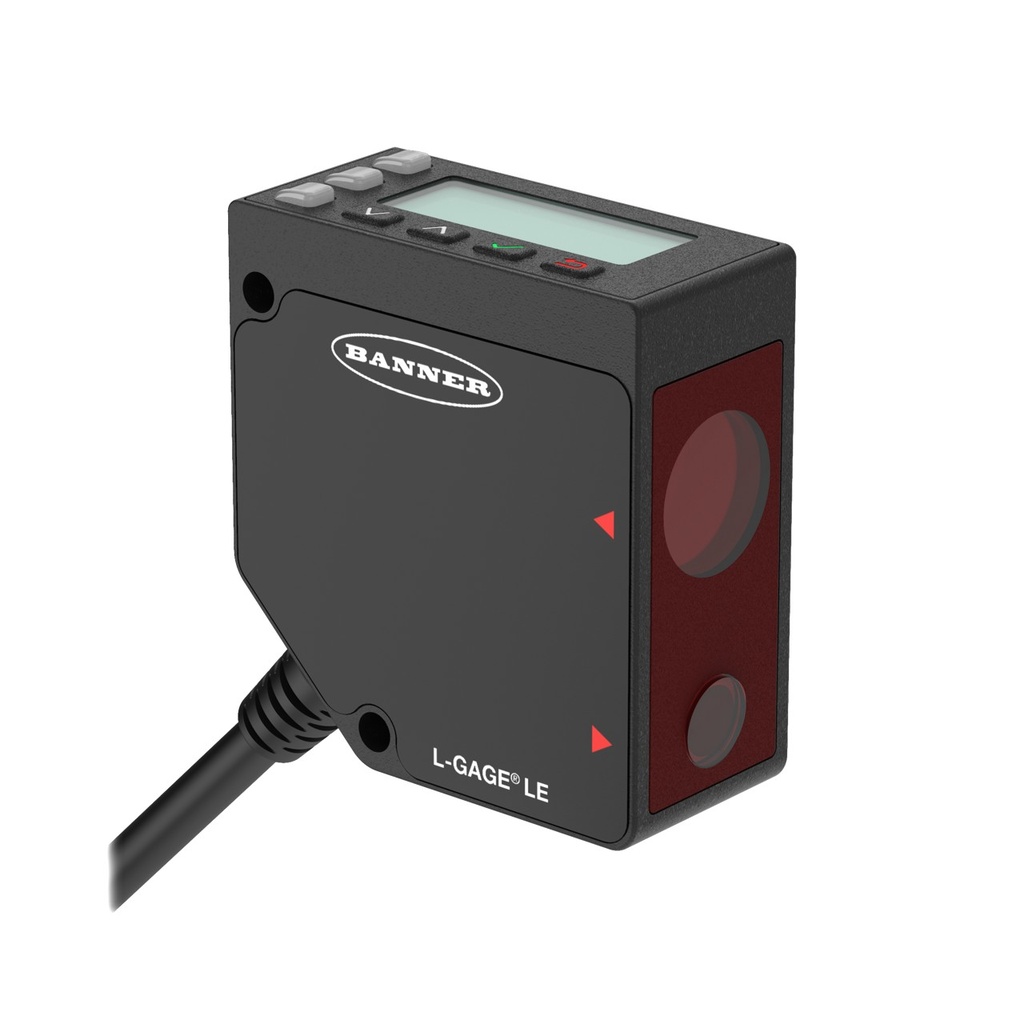

Laser Displacement Sensor (LE550IQ-93235)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 93235
Weight: 0.6 lb(s)
Features:
- Laser Displacement Sensor; Range:100-1000 mm; Input:12
- 30 V dc; Output: Analog: 4 -20 mA; Discrete:NPN/PNP Configurable; Intergal Quick-Disconnect; SPRF 26205
Laser Displacement Sensor (LE550IQ-93235)
Brand_Name:Banner
Power:DC
Min Operating Temperature:-20 °C
Max Operating Temperature:55 °C
Power Supply:12-30 VDC
Ingress Protection:IP67
Sensing Beam:Visible Red Laser
Housing Style:Rectangular
Max Sensing Distance:1000 mm
Sensing Mode (Detailed):Triangulation
Sensing Mode (General):Proximity
Housing Material_:Zinc Alloy Die-Cast
Feature: Washdown Rated:Yes
Laser Classification:Class 2
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Number of Pins:5
Adjustments:Push Button; Remote Teach
Feature: Timing (Hold/Delay):Yes
Input/Output:Analog
Min Response Time:2 ms
Min Sensing Distance:100 mm
Discrete (Switched) Outputs:1 NPN/PNP Configurable
Feature: Remote Teach:Yes
Feature: Analog Output(s):4 to 20 mA
Connection Type:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6
Feature: Health/Marginal Signal Output:Yes
Feature: Laser Control:Yes
Max Ambient Light:10000 lux
Specifications
| Brand_Name | Banner |
| Power | DC |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 12-30 VDC |
| Ingress Protection | IP67 |
| Sensing Beam | Visible Red Laser |
| Housing Style | Rectangular |
| Max Sensing Distance | 1000 mm |
| Sensing Mode (Detailed) | Triangulation |
| Sensing Mode (General) | Proximity |
| Housing Material_ | Zinc Alloy Die-Cast |
| Feature: Washdown Rated | Yes |
| Laser Classification | Class 2 |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Number of Pins | 5 |
| Adjustments | Push Button; Remote Teach |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Analog |
| Min Response Time | 2 ms |
| Min Sensing Distance | 100 mm |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Feature: Remote Teach | Yes |
| Feature: Analog Output(s) | 4 to 20 mA |
| Connection Type | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
| Feature: Health/Marginal Signal Output | Yes |
| Feature: Laser Control | Yes |
| Max Ambient Light | 10000 lux |
