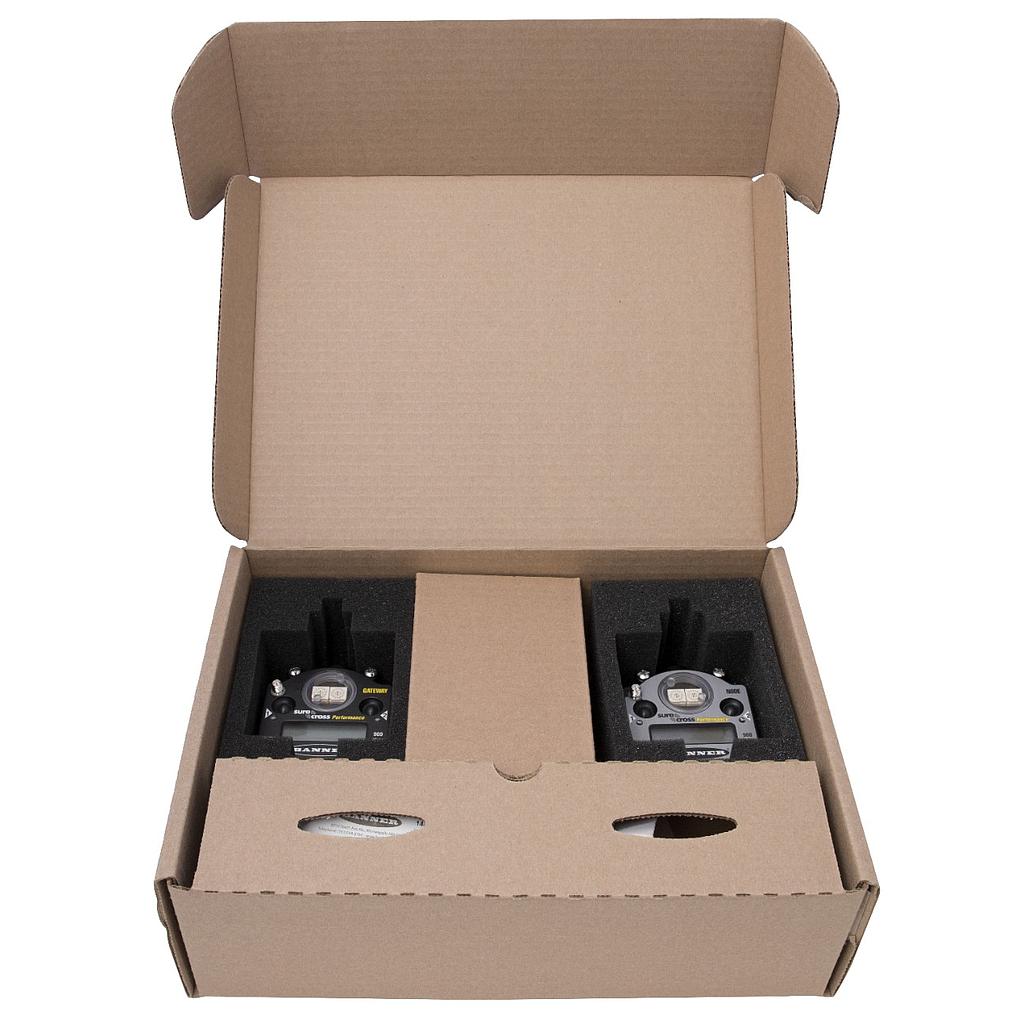

PM2 Series Kit (DX80K9M6-PM2)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 92937
Weight: 2.0 lb(s)
PM2 Series Kit
Features:
- PM2 Series Kit
- Includes one gateway and one node
- pre-mapped and pre-bound
- 900 MHz 1 Watt / 250 mW
- LCD Selectable I/O Mapping
- IP67 / NEMA 6
- In: Four selectable NPN/PNP discrete
- Two 0-20 mA -
PM2 Series Kit (DX80K9M6-PM2)
PM2 Series Kit
Power:DC
Feature: Discrete Outputs:Yes
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Power Supply:10-30 VDC
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Enclosed Terminals
Device Type:Kit
Feature: RS-232:No
Feature: RS-485:Yes
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Feature: Hazardous Area:No
Feature: Modbus RTU:Yes
Feature: Wireless:Yes
Input/Output:Analog & Discrete
Relative Humidity:95%
Feature: LCD Display:Yes
Output Details:4 Sourcing Discrete, 2 0-20 mA Analog
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Input Details:(4) Selectable Discrete; (2) 0-20 mA Analog
Feature: Discrete Inputs:Yes
Wireless Radio Frequency:900 MHz
Feature: Tree Topology:No
Feature: Star Topology:Yes
Feature: Analog Input(s):Yes
Feature: Analog Output(s):Yes
Country of Origin:US
NEMA / UL:NEMA 6
Specifications
| Power | DC |
| Feature: Discrete Outputs | Yes |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Power Supply | 10-30 VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Enclosed Terminals |
| Device Type | Kit |
| Feature: RS-232 | No |
| Feature: RS-485 | Yes |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Feature: Hazardous Area | No |
| Feature: Modbus RTU | Yes |
| Feature: Wireless | Yes |
| Input/Output | Analog & Discrete |
| Relative Humidity | 95% |
| Feature: LCD Display | Yes |
| Output Details | 4 Sourcing Discrete, 2 0-20 mA Analog |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Input Details | (4) Selectable Discrete; (2) 0-20 mA Analog |
| Feature: Discrete Inputs | Yes |
| Wireless Radio Frequency | 900 MHz |
| Feature: Tree Topology | No |
| Feature: Star Topology | Yes |
| Feature: Analog Input(s) | Yes |
| Feature: Analog Output(s) | Yes |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
