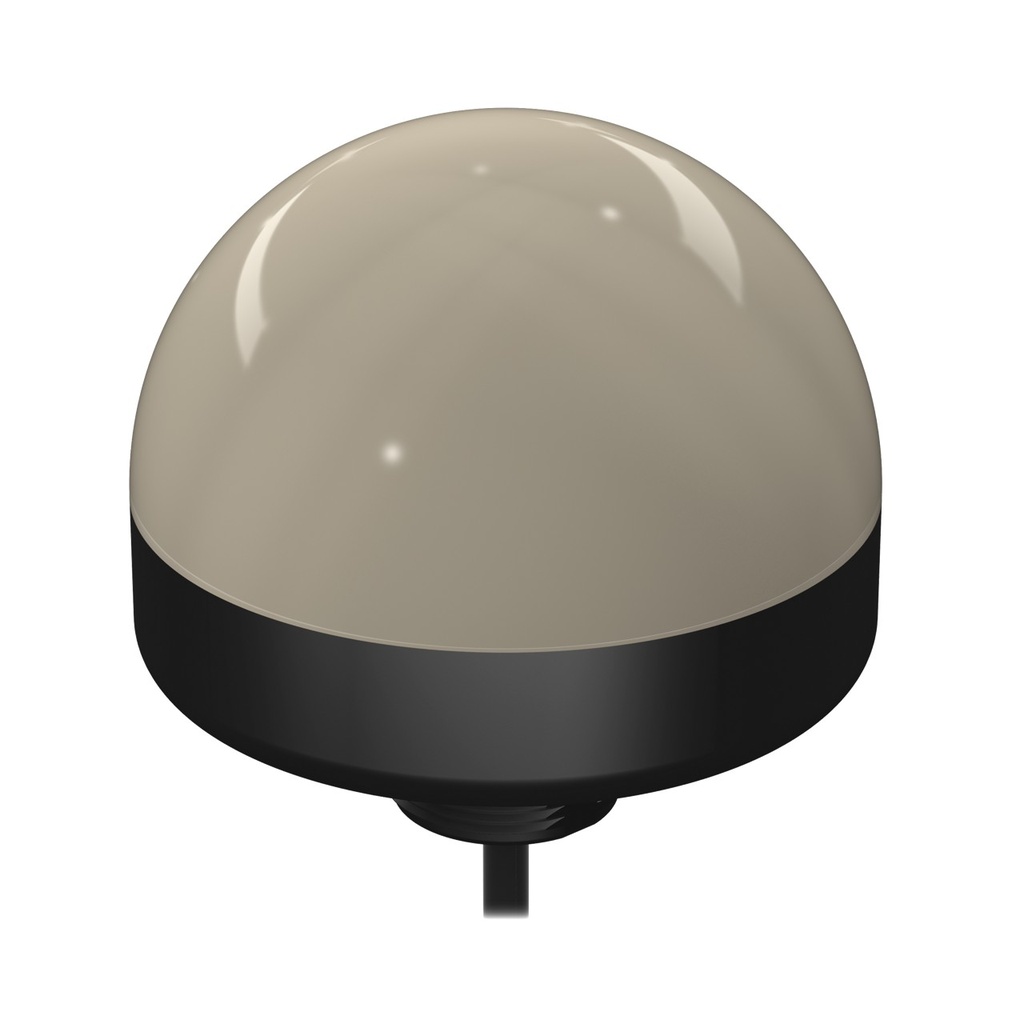

K90 Series EZ-LIGHT (K90LWBGYRP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 92828
Weight: 0.8 lb(s)
K90 Series EZ-LIGHT
Features:
- K90 Series EZ-LIGHT
- 5-Color Indicator
- Voltage: 12-30 V dc
- Environmental Rating: IP67
- Input: PNP
- Colors: White Blue Green Yellow Red
- 2 m (6.5 ft) Cable
K90 Series EZ-LIGHT (K90LWBGYRP)
K90 Series EZ-LIGHT
Power:DC
Feature: Display:No
Measurement Maximum:0
Max Current Color:475 mA
Min Operating Temperature:-40 °C, -40 °C
Max Operating Temperature:50 °C
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Base Mount - Dome Window
Housing Material_:Polycarbonate
Feature: Indication:Yes
Color Option 3:Green
Supply Voltage:12-30 VDC
Color Option 2:Blue
Feature: Quick Disconnect:No
Lumens Color 1:200
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Number of Colors / Segments:5
Color 3 - Wavelength/Color Temp/Coordinates:525 nm
Lumens Color 2:55
Lumens Color 3:150
Color 2 - Wavelength/Color Temp/Coordinates:470 nm
Number of Input Pins/Conductors:8
Input Type:PNP
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):75 ms
Color Option 4:Yellow
Color 4 - Wavelength/Color Temp/Coordinates:590 nm
Color Option 5:Red
Color 5 - Wavelength/Color Temp/Coordinates:625 nm
Lumens Color 5:65
Lumens Color 4:35
Wire Selectable Function:Flashing
Connection Type:Cable, Cable, Cable
Country of Origin:US
NEMA / UL:UL 4X/13
Cord/Cable Length:2 m
Specifications
| Power | DC |
| Feature: Display | No |
| Measurement Maximum | 0 |
| Max Current Color | 475 mA |
| Min Operating Temperature | -40 °C, -40 °C |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Base Mount - Dome Window |
| Housing Material_ | Polycarbonate |
| Feature: Indication | Yes |
| Color Option 3 | Green |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Blue |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 200 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Number of Colors / Segments | 5 |
| Color 3 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 2 | 55 |
| Lumens Color 3 | 150 |
| Color 2 - Wavelength/Color Temp/Coordinates | 470 nm |
| Number of Input Pins/Conductors | 8 |
| Input Type | PNP |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 75 ms |
| Color Option 4 | Yellow |
| Color 4 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color Option 5 | Red |
| Color 5 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 5 | 65 |
| Lumens Color 4 | 35 |
| Wire Selectable Function | Flashing |
| Connection Type | Cable, Cable, Cable |
| Country of Origin | US |
| NEMA / UL | UL 4X/13 |
| Cord/Cable Length | 2 m |
