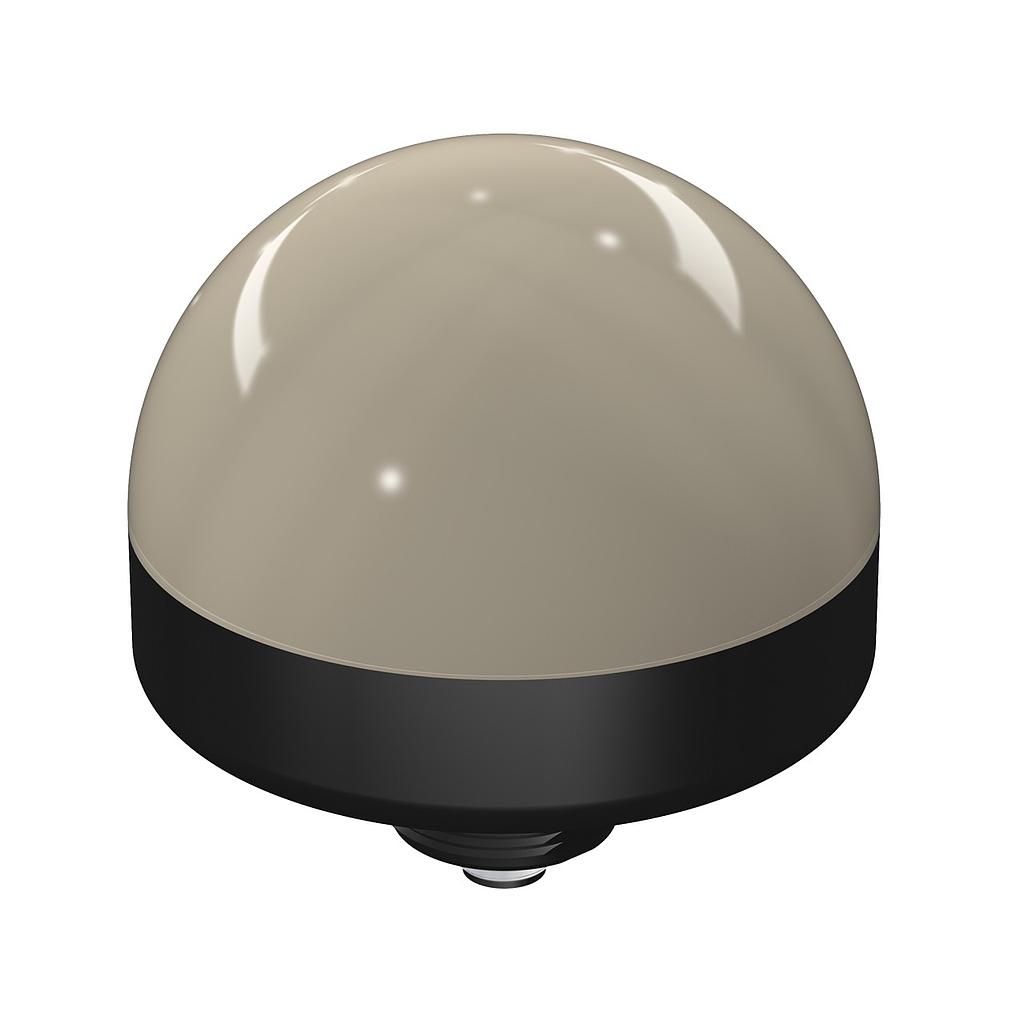

K90 Series EZ-LIGHT (K90LBGYRPQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 92823
Weight: 0.5 lb(s)
K90 Series EZ-LIGHT
Features:
- K90 Series EZ-LIGHT
- 4-Color Indicator
- Voltage: 12-30 V dc
- Environmental Rating: IP67
- Input: PNP
- Colors: Blue Green Yellow Red
- Euro 8-pin Quick-Disconnect
K90 Series EZ-LIGHT (K90LBGYRPQ)
K90 Series EZ-LIGHT
Power:DC
Feature: Display:No
Measurement Maximum:0
Max Current Color:475 mA
Min Operating Temperature:-40 °C, -40 °C
Max Operating Temperature:50 °C
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Base Mount - Dome Window
Housing Material_:Polycarbonate
Feature: Indication:Yes
Color Option 3:Yellow
Supply Voltage:12-30 VDC
Color Option 2:Green
Feature: Quick Disconnect:Yes
Lumens Color 1:55
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Blue
Color 1 - Wavelength/Color Temp/Coordinates:470 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:4
Color 3 - Wavelength/Color Temp/Coordinates:590 nm
Lumens Color 2:150
Lumens Color 3:35
Color 2 - Wavelength/Color Temp/Coordinates:525 nm
Number of Input Pins/Conductors:8
Input Type:PNP
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):75 ms
Color Option 4:Red
Color 4 - Wavelength/Color Temp/Coordinates:625 nm
Lumens Color 4:65
Wire Selectable Function:Flashing
Connection Type:Integral QD, Integral QD, Integral QD
Country of Origin:US
NEMA / UL:UL 4X/13
Specifications
| Power | DC |
| Feature: Display | No |
| Measurement Maximum | 0 |
| Max Current Color | 475 mA |
| Min Operating Temperature | -40 °C, -40 °C |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Base Mount - Dome Window |
| Housing Material_ | Polycarbonate |
| Feature: Indication | Yes |
| Color Option 3 | Yellow |
| Supply Voltage | 12-30 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 55 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Blue |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 4 |
| Color 3 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 2 | 150 |
| Lumens Color 3 | 35 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Number of Input Pins/Conductors | 8 |
| Input Type | PNP |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 75 ms |
| Color Option 4 | Red |
| Color 4 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 4 | 65 |
| Wire Selectable Function | Flashing |
| Connection Type | Integral QD, Integral QD, Integral QD |
| Country of Origin | US |
| NEMA / UL | UL 4X/13 |
