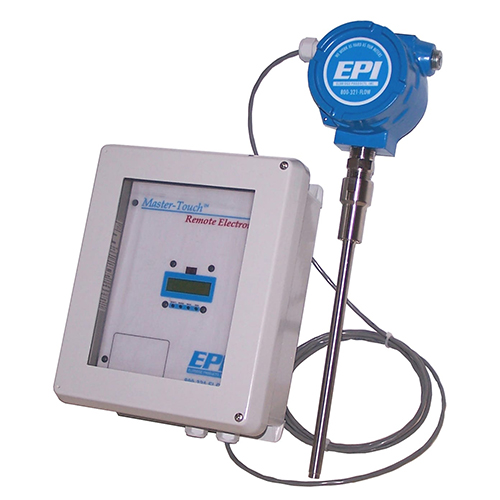

EPI SERIES 9200MPNH THERMAL MASS INSERTION REMOTE FLOW METER
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 9240MPNH-REM-SSS-133-AC115-MW050-L16RT0NA-1RC-AIR-CSA/CUS-MB
Weight: 7.0 lb(s)
FAT - Ordinary Locations Insertion Style Flow Meter - 1/2" OD Probe
Remote Electronics - standard outputs: 0-5VDC & 4-20mA (flow with optional temperature), RS485
Modbus RTU. 4-20mA FLOW enabled unless specified. Modbus is disabled.
316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor
shield, or Hastelloy® C-276 sensor
2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-
button programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW
Cooling
Gas Temperature Range: Ambient to 50°C/122°F
115 VAC 50/60 Hz
FAT Length = 16 inches ; Return = 0 inches
1 Gas Range
AIR CALIBRATION against our certified 0.05% accurate Primary Standard that is directly traceable to
NIST. Enhanced accuracy calibration is always optional.
CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in
Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE Compliant
RS485 Modbus RTU - Read & Write
EPI SERIES 9200MPNH THERMAL MASS INSERTION REMOTE FLOW METER
FAT - Ordinary Locations Insertion Style Flow Meter - 1/2" OD Probe
Remote Electronics - standard outputs: 0-5VDC & 4-20mA (flow with optional temperature), RS485
Modbus RTU. 4-20mA FLOW enabled unless specified. Modbus is disabled.
316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor
shield, or Hastelloy® C-276 sensor
2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-
button programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW
Cooling
Gas Temperature Range: Ambient to 50°C/122°F
115 VAC 50/60 Hz
FAT Length = 16 inches ; Return = 0 inches
1 Gas Range
AIR CALIBRATION against our certified 0.05% accurate Primary Standard that is directly traceable to
NIST. Enhanced accuracy calibration is always optional.
CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in
Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE Compliant
RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Measurement Minimum:0
Input Communication Protocol:4-20 mA, 2 Wire
Output Communication Protocol:4-20 mA / HART
Input Voltage:120 VAC
Ingress Protection:IP66
NEMA / UL:NEMA 4X
Specifications
| Brand_Name | Eldridge |
| Measurement Minimum | 0 |
| Input Communication Protocol | 4-20 mA, 2 Wire |
| Output Communication Protocol | 4-20 mA / HART |
| Input Voltage | 120 VAC |
| Ingress Protection | IP66 |
| NEMA / UL | NEMA 4X |
